单片同步电压频率转换器 Monolithic Synchronous Voltage-to-Frequency Converter
* Full-scale frequency up to 2 MHz set by external system clock * Extremely low linearity error 0.005% max at 1 MHz FS, 0.02% max at 2 MHz FS * No critical external components required * Accurate 5 V reference voltage * Low drift 25 ppm/°C max * Dual- or single-supply operation * Voltage or current input * MIL-STD-883 compliant versions available
得捷:

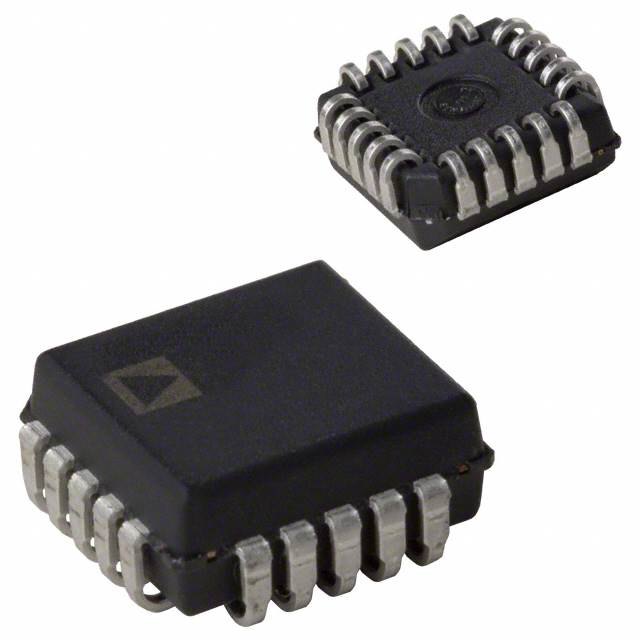

IC V/F CONV 2MHZ 20PLCC
艾睿:
VFC Sync 2MHz 20-Pin PLCC Tube
安富利:
The AD652 synchronous voltage-to-frequency converter SVFC is a powerful building block for precision analog-todigital conversion, offering typical nonlinearity of 0.002% 0.005% maximum at a 100 kHz output frequency. The inherent monotonicity of the transfer function and wide range of clock frequencies allow the conversion time and resolution to be optimized for specific applications. The AD652 uses a variation of the charge-balancing technique to perform the conversion function. The AD652 uses an external clock to define the full-scale output frequency, rather than relying on the stability of an external capacitor. The result is a more stable, more linear transfer function, with significant application benefits in both single- and multichannel systems. Gain drift is minimized using a precision low drift reference and low TC, on-chip, thin-film scaling resistors. Furthermore, initial gain error is reduced to less than 0.5% by the use of laserwafer-trimming. The analog and digital sections of the AD652 have been designed to allow operation from a single-ended power source, simplifying its use with isolated power supplies. The AD652 is available in five performance grades. The 20-lead PLCC-packaged JP and KP grades are specified for operation over the 0°C to +70°C commercial temperature range. The 16-lead CERDIP-packaged AQ and BQ grades are specified for operation over the −40°C to +85°C industrial temperature range. The AD652SQ is available for operation over the full −55°C to +125°C extended temperature range.
Chip1Stop:
VFC Sync 2MHz 20-Pin PLCC Tube
Verical:
VFC Sync 2MHz 20-Pin PLCC Tube
罗切斯特:
Voltage to Frequency Converter, 1 Func, 4MHz, PQCC20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD652KP ADI 亚德诺 | 当前型号 | 当前型号 |
AD652JPZ-REEL7 亚德诺 | 完全替代 | AD652KP和AD652JPZ-REEL7的区别 |
AD652JPZ-REEL 亚德诺 | 完全替代 | AD652KP和AD652JPZ-REEL的区别 |
