AD698SQ概述

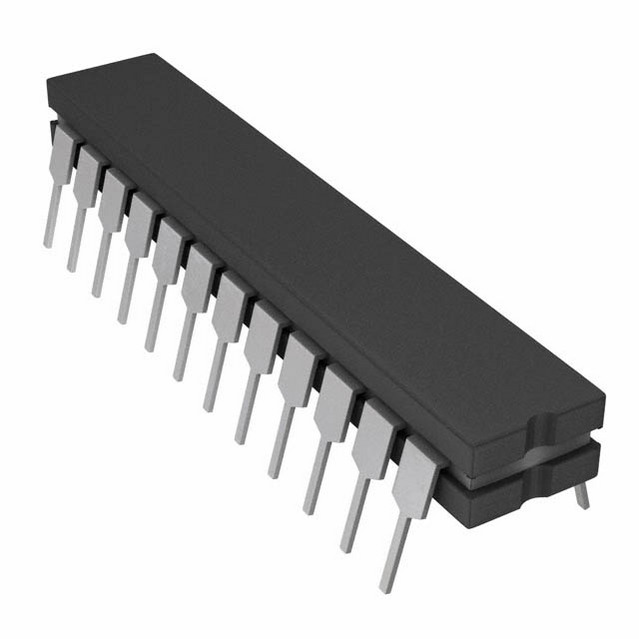

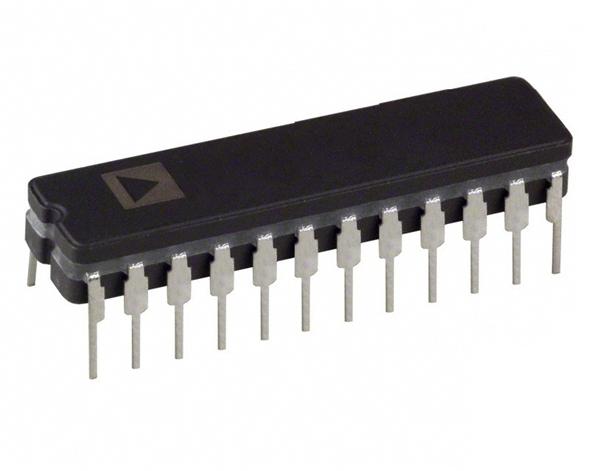

ANALOG DEVICES  AD698SQ  芯片, LVDT信号调节器, 20KHZ, 0.05% DIP24

Product Details

The AD698 is a complete, monolithic Linear Variable Differential Transformer LVDT signal conditioning subsystem. It is used in conjunction with LVDTs to convert transducer mechanical position to a unipolar or bipolar dc voltage with a high degree of accuracy and repeatability. All circuit functions are included on the chip. With the addition of a few external passive components to set frequency and gain, the AD698 converts the raw LVDT output to a scaled dc signal. The device will operate with half-bridge LVDTs, LVDTs connected in the series opposed configuration 4-wire, and RVDTs.

The AD698 contains a low distortion sine wave oscillator to drive the LVDT primary. Two synchronous demodulation channels of the AD698 are used to detect primary and secondary amplitude. The part divides the output of the secondary by the amplitude of the primary and multiplies by a scale factor. This eliminates scale factor errors due to drift in the amplitude of the primary drive, improving temperature performance and stability.

The AD698 uses a unique ratiometric architecture to eliminate several of the disadvantages associated with traditional approaches to LVDT interfacing. The benefits of this new circuit are: no adjustments are necessary; temperature stability is improved; and transducer interchangeability is improved.

### Features and Benefits

.
Single Chip Solution, Contains Internal Oscillator and Voltage Reference
.
No Adjustments Required
.
Interfaces to Half-Bridge, 4-Wire LVDT
.
DC Output Proportional to Position
.
20 Hz to 20 kHz Frequency Range
.
Unipolar or Bipolar Output
.
Will Also Decode AC Bridge Signals
.
Outstanding Performance

Linearity: 0.05%

Output Voltage: ±11 V

Gain Drift: 20 ppm/°C typ

Offset Drift: 5 ppm/°C typ

AD698SQ中文资料参数规格
技术参数

电源电压DC 13.0V min

供电电流 15 mA

针脚数 24

带宽 20 kHz

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压Max 36 V

电源电压Min 13 V

封装参数

安装方式 Through Hole

引脚数 24

封装 CDIP-24

外形尺寸

宽度 7.87 mm

高度 3.56 mm

封装 CDIP-24

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

制造应用 Unmanned Systems, Aerospace and Defense, Avionics

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

AD698SQ引脚图与封装图

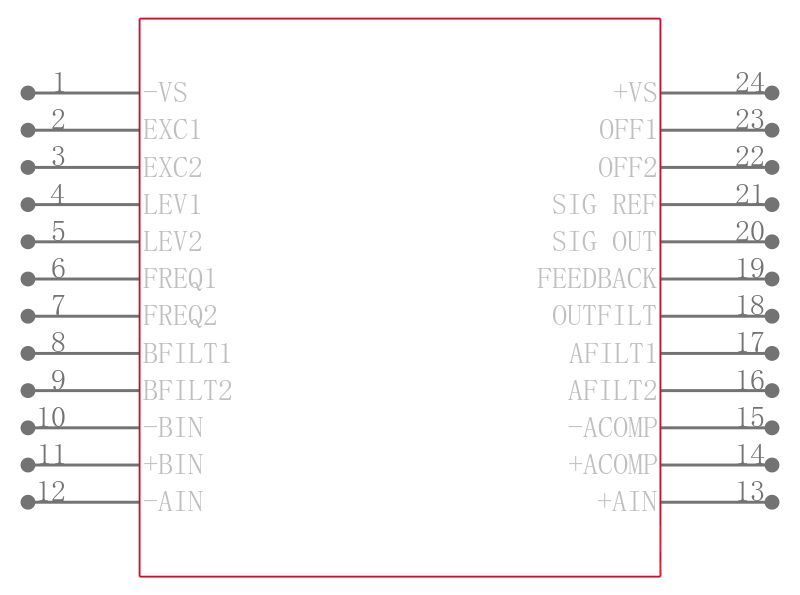

AD698SQ引脚图
AD698SQ封装图
AD698SQ电路图

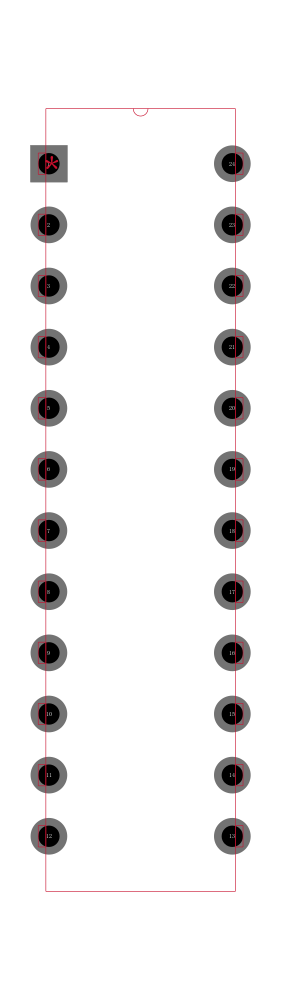

AD698SQ封装焊盘图
在线购买AD698SQ
型号: AD698SQ
制造商: ADI 亚德诺
描述:ANALOG DEVICES  AD698SQ  芯片, LVDT信号调节器, 20KHZ, 0.05% DIP24
