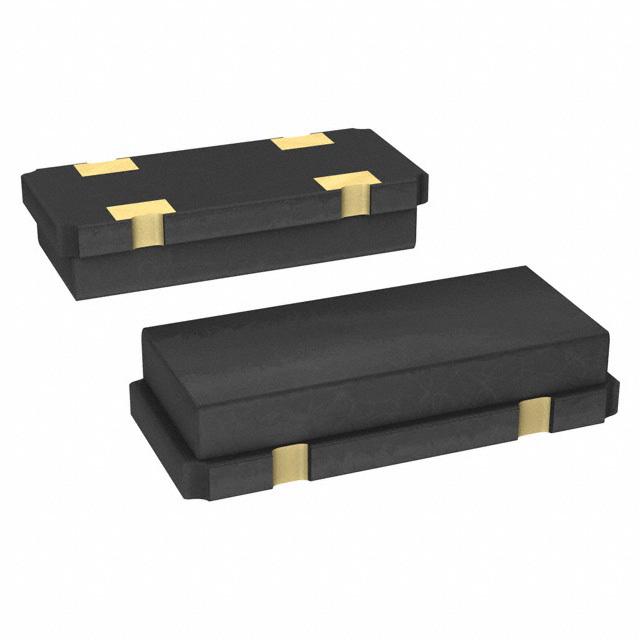

ABRACON ABC2-12MHz-4-T Crystal, Low Frequency, 12MHz, SMD, 11.8mm x 5.5mm, 30ppm, 18pF, 30ppm, ABC2 Series
12MHz ±30ppm Crystal 18pF 35 Ohms 4-SMD, No Lead
得捷:
CRYSTAL 12.0000MHZ 18PF SMD
立创商城:
12MHz ±30ppm 18pF
艾睿:
Crystal 12MHz ±30ppm Tol ±30ppm Stability 18pF FUND 35Ohm 4-Pin CSMD T/R
安富利:
CRYSTAL, SMD, Ceramic, uP, Low Freq, 12.0MHz, T/R 1k
Chip1Stop:
Crystal 12MHz ±30ppm Tol ±30ppm Stability 18pF FUND 35Ohm 4-Pin CSMD T/R
Newark:
# ABRACON ABC2-12.000MHZ-4-T Crystal, Low Frequency, 12 MHz, SMD, 11.8mm x 5.5mm, 30 ppm, 18 pF, 30 ppm, ABC2 Series
频率 12 MHz
频率稳定度 ±30 ppm
频率容差 ±30 ppm
等效串联电阻ESR 35 Ω
负载电容 18 pF
击穿电压集电极-发射极 50 V
最小电流放大倍数hFE 40 @10µA, 5V
额定功率Max 625 mW
工作温度Max 60 ℃
工作温度Min -10 ℃
安装方式 Surface Mount
引脚数 4
封装 TO-92-3
长度 11.8 mm
宽度 5.5 mm
封装 TO-92-3
工作温度 -10℃ ~ 60℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ABC2-12.000MHZ-4-T Abracon | 当前型号 | 当前型号 |
CS20-12.000MABJ-UT Citizen Finedevice | 功能相似 | ABC2-12.000MHZ-4-T和CS20-12.000MABJ-UT的区别 |
