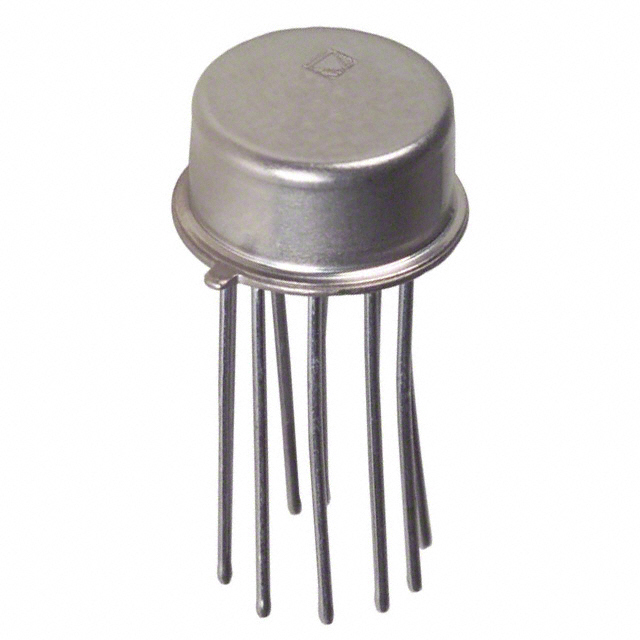

ANALOG DEVICES AD534JH 芯片, 乘法器, 4象限 1%, TO10010, 534
PRODUCT DESCRIPTION
The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum
multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip
thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs,
including the Z-input, a feature which greatly increases its flexibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this
can be reduced to values as low as 3 V.
FEATURES
Pretrimmed to 60.25% max 4-Quadrant Error AD534L
All Inputs X, Y and Z Differential, High Impedance for [X1– X2 Y1– Y2/10 V] + Z2 Transfer Function
Scale-Factor Adjustable to Provide up to X100 Gain
Low Noise Design: 90mV rms, 10 Hz–10 kHz
Low Cost, Monolithic Construction
Excellent Long Term Stability
APPLICATIONS
High Quality Analog Signal Processing
Differential Ratio and Percentage Computations
Algebraic and Trigonometric Function Synthesis
Wideband, High-Crest rms-to-dc Conversion
Accurate Voltage Controlled Oscillators and Filters
Available in Chip Form
电源电压DC 8.00V min
供电电流 6.00 mA
针脚数 10
位数 4
耗散功率 500 mW
转换速率 20.0 V/μs
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压Max 18 V
电源电压Min 8 V
安装方式 Through Hole
引脚数 10
封装 TO-100-10
长度 9.4 mm
宽度 9.4 mm
高度 4.7 mm
封装 TO-100-10
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD534JH ADI 亚德诺 | 当前型号 | 当前型号 |
AD534LHZ 亚德诺 | 完全替代 | AD534JH和AD534LHZ的区别 |
AD534LH 亚德诺 | 完全替代 | AD534JH和AD534LH的区别 |
