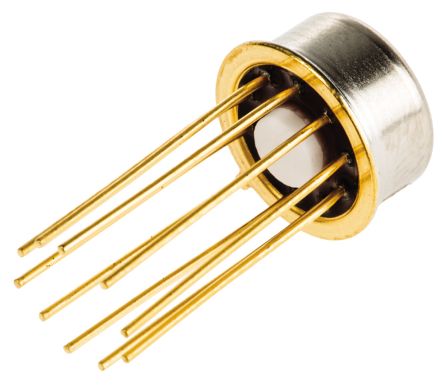

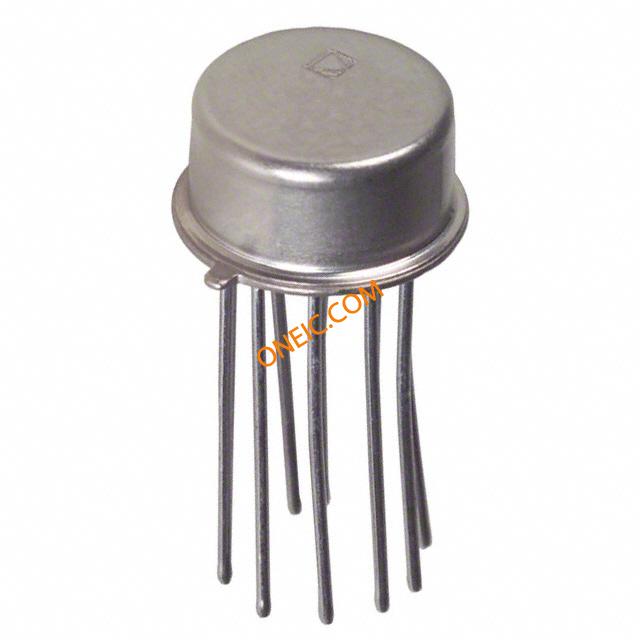

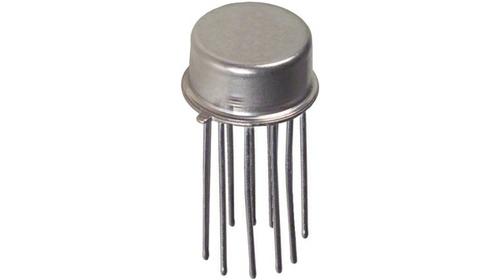

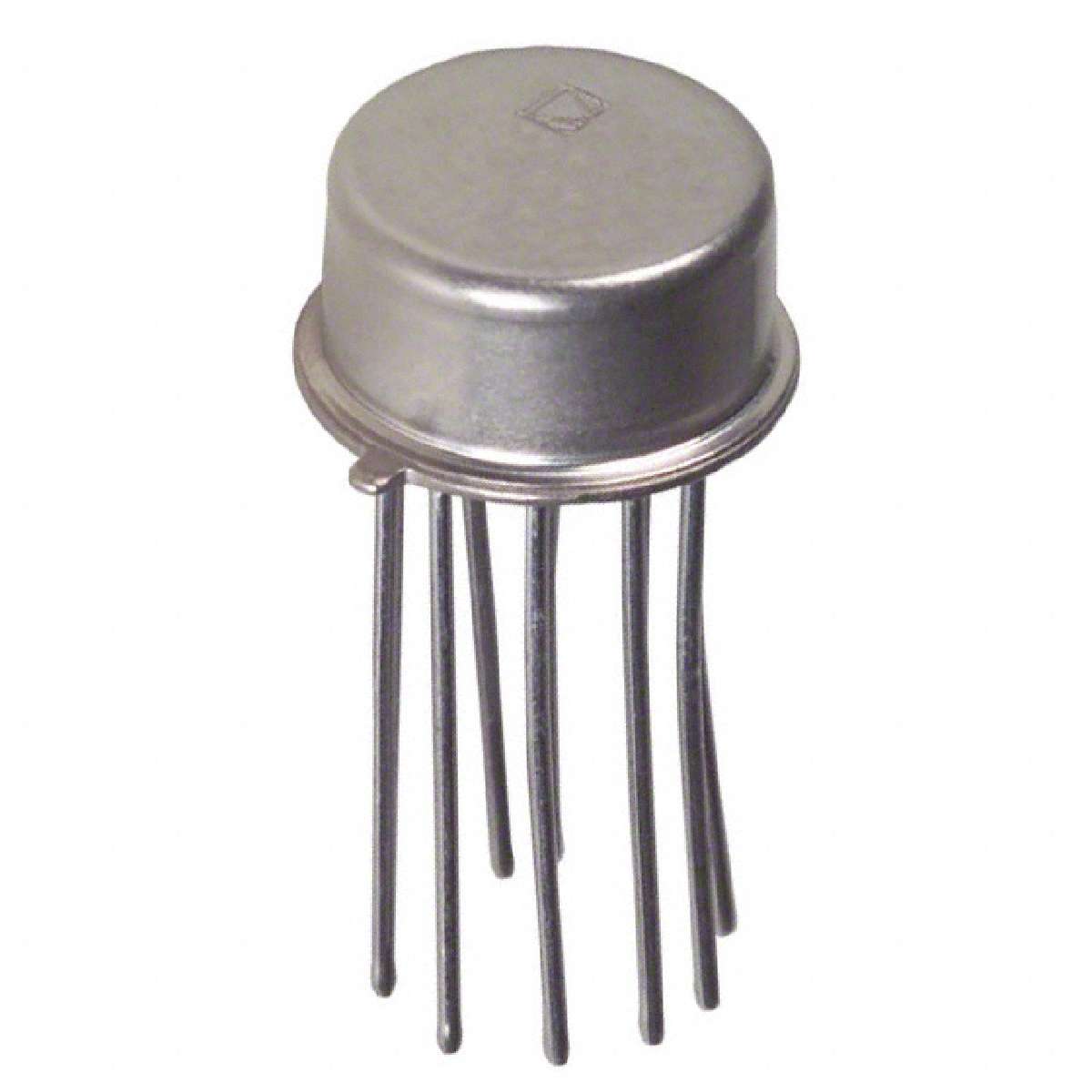

ANALOG DEVICES AD534JHZ 芯片, 乘法器/除法器, 20V/uS, TO-100-10
模拟乘法器, Analog Devices
一系列 Analog Devices 的模拟乘法器和除法器,适用于各种信号处理应用。 提供两象限和四象限型号,提供通孔和 SMT 页选项。 这些设备的典型应用包括差分比和百分比计算、代数和三角函数合成、精确电压控制的振荡器和过滤器、调制器和解调器、增益控制和有效值至直流转换。
得捷:
IC MULT DIV LASER TRIM TO100-10
欧时:
Analog Devices AD534JHZ 电压倍增器, 单端输出, 4个象限, 最高1 MHz, 10引脚 TO-100封装
e络盟:
芯片, 乘法器/除法器, 20V/uS, TO-100-10
艾睿:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube
安富利:
The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long-term stability of the on-chip thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs, including the Z input, a feature that greatly increases its flexibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this can be reduced to values as low as 3 V.
Chip1Stop:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube
TME:
IC: multiplicator circuit; Channels:1; TO100; 8÷18VDC
Verical:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube
Newark:
# ANALOG DEVICES AD534JHZ MULTIPLIER/DIVIDER, 20V/US, TO-100-10
罗切斯特:
Analog Multiplier/Divider 4-Bit 10-Pin TO-100 Tube
DeviceMart:
IC MULT DIV LASER TRIM TO100-10
电源电压DC 8.00 V, 18.0 V max
输出电压 11 V
供电电流 4 mA
电路数 1
通道数 1
针脚数 10
漏源极电阻 0.1 Ω
位数 4
耗散功率 500 mW
转换速率 20.0 V/μs
工作温度Max 70 ℃
工作温度Min 0 ℃
耗散功率Max 500 mW
电源电压 8.18 VDC
电源电压Max 18 V
电源电压Min 8 V
输入电压 10 V
安装方式 Through Hole
引脚数 10
封装 TO-100-10
长度 9.4 mm
宽度 9.4 mm
高度 4.7 mm
封装 TO-100-10
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AD534JHZ ADI 亚德诺 | 当前型号 | 当前型号 |
AD534LHZ 亚德诺 | 类似代替 | AD534JHZ和AD534LHZ的区别 |
AD534TH 亚德诺 | 类似代替 | AD534JHZ和AD534TH的区别 |
