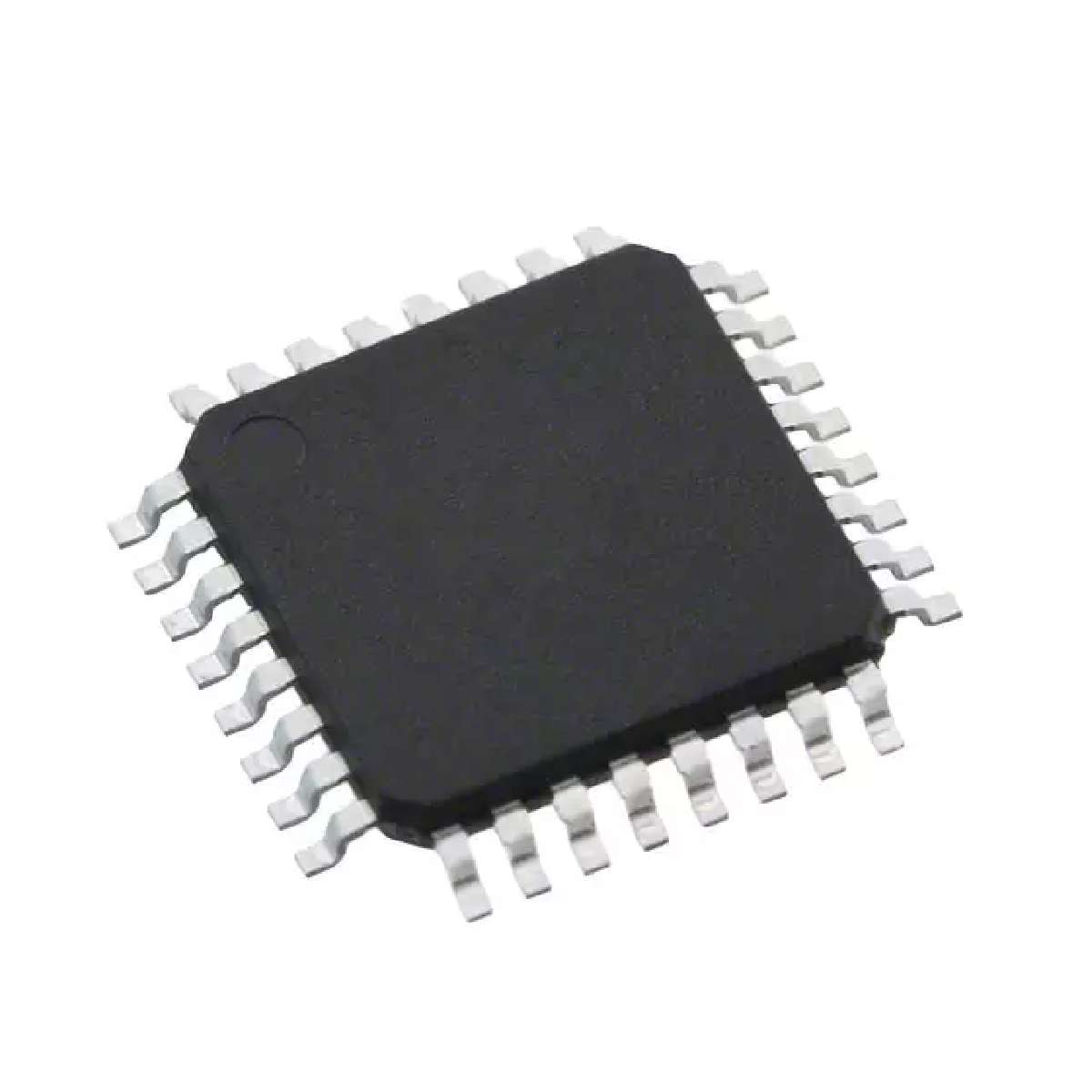

ATMEL ATXMEGA16E5-AU 微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 16 KB, 2 KB, 32 引脚, TQFP
The Atmel is a low power, high performance, and peripheral rich 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing instructions in a single clock cycle, the AVR XMEGA device achieve CPU throughput approaching one million instructions per second MIPS per megahertz, allowing the system designer to optimize power consumption versus processing speed. The AVR CPU combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit, allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers.
频率 32 MHz
针脚数 32
时钟频率 32.0 MHz
RAM大小 2 KB
模数转换数ADC 1
输入/输出数 26 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.6.3.6 V
电源电压Max 3.6 V
电源电压Min 1.6 V
安装方式 Surface Mount
引脚数 32
封装 TQFP-32
长度 7.1 mm
宽度 7.1 mm
高度 1.05 mm
封装 TQFP-32
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tray
制造应用 Sensing & Instrumentation, 计量, 传感与仪器, 电机驱动与控制, Metering, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATXMEGA16E5-AU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATXMEGA16E5-AUR 爱特美尔 | 完全替代 | ATXMEGA16E5-AU和ATXMEGA16E5-AUR的区别 |
