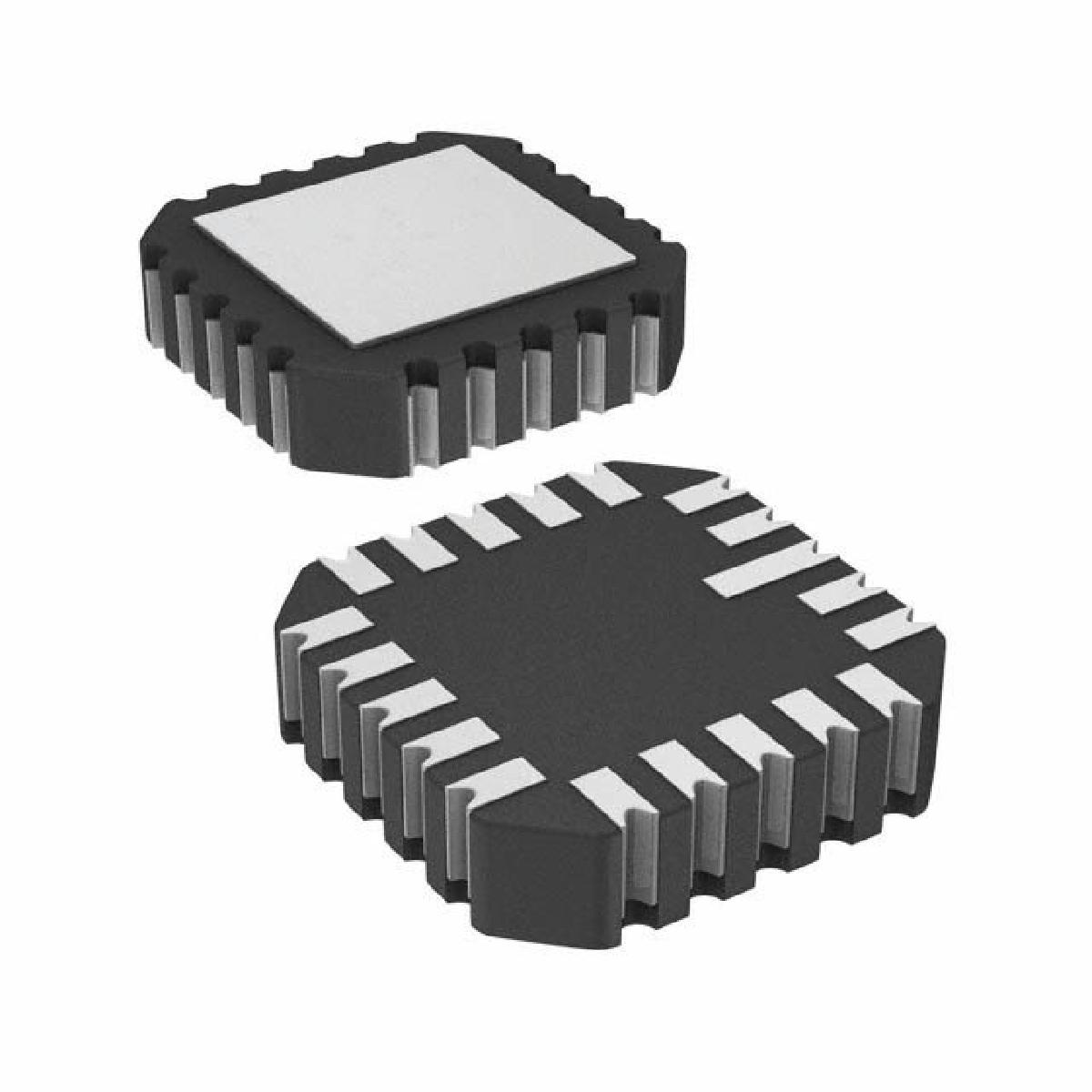

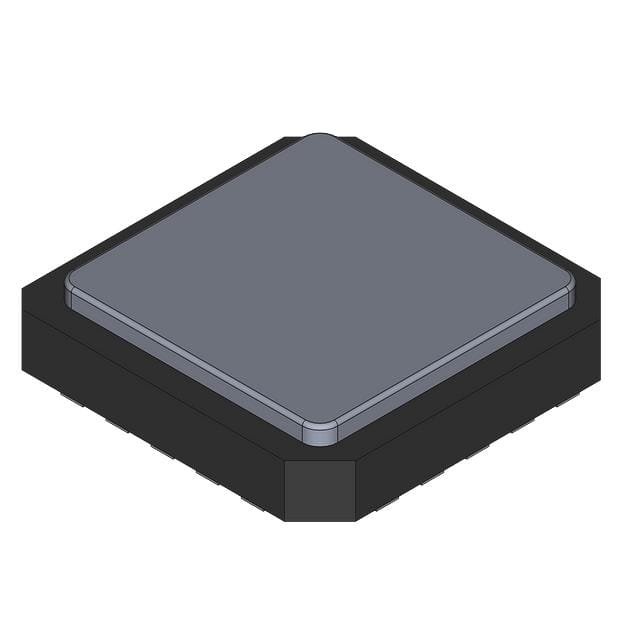

AD534TE/883B

内部微调精密IC乘法器 Internally Trimmed Precision IC Multiplier

PRODUCT DESCRIPTION

The AD534 is a monolithic laser trimmed four-quadrant multiplier divider having accuracy specifications previously found only in expensive hybrid or modular products. A maximum

multiplication error of ±0.25% is guaranteed for the AD534L without any external trimming. Excellent supply rejection, low temperature coefficients and long term stability of the on-chip

thin film resistors and buried Zener reference preserve accuracy even under adverse conditions of use. It is the first multiplier to offer fully differential, high impedance operation on all inputs,

including the Z-input, a feature which greatly increases its flexibility and ease of use. The scale factor is pretrimmed to the standard value of 10.00 V; by means of an external resistor, this

can be reduced to values as low as 3 V.

FEATURES

Pretrimmed to 60.25% max 4-Quadrant Error AD534L

All Inputs X, Y and Z Differential, High Impedance for [X1– X2 Y1– Y2/10 V] + Z2 Transfer Function

Scale-Factor Adjustable to Provide up to X100 Gain

Low Noise Design: 90mV rms, 10 Hz–10 kHz

Low Cost, Monolithic Construction

Excellent Long Term Stability

APPLICATIONS

High Quality Analog Signal Processing

Differential Ratio and Percentage Computations

Algebraic and Trigonometric Function Synthesis

Wideband, High-Crest rms-to-dc Conversion

Accurate Voltage Controlled Oscillators and Filters

Available in Chip Form
