AD834SQ/883B

500MHz的四象限乘法器 500 MHz Four-Quadrant Multiplier

Product Details

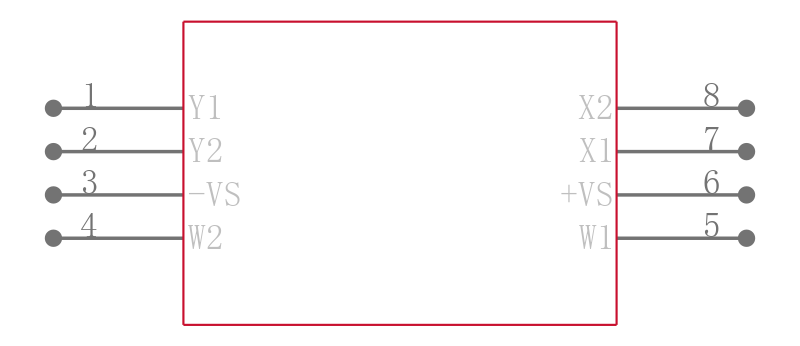

The AD834 is a monolithic, laser-trimmed four-quadrant analog multiplier intended for use in high frequency applications, with a transconductance bandwidth RL = 50 Ω in excess of 500 MHz from either of the differential voltage inputs. In multiplier modes, the typical total full-scale error is 0.5%, dependent on the application mode and the external circuitry. Performance is relatively insensitive to temperature and supply variations due to the use of stable biasing based on a band gap reference generator and other design features.

To preserve the full bandwidth potential of the high speed bipolar process used to fabricate the AD834, the outputs appear as a differential pair of currents at open collectors. To provide a single-ended ground referenced voltage output, some form of external current-to-voltage conversion is needed. This may take the form of a wideband transformer, balun, or active circuitry such as an op amp. In some applications such as power measurement, the subsequent signal processing may not need to have high bandwidth.

The transfer function is accurately trimmed such that when X = Y = ±1 V, the differential output is ±4 mA. This absolute calibration allows the outputs of two or more AD834 devices to be summed with precisely equal weighting, independent of the accuracy of the load circuit.

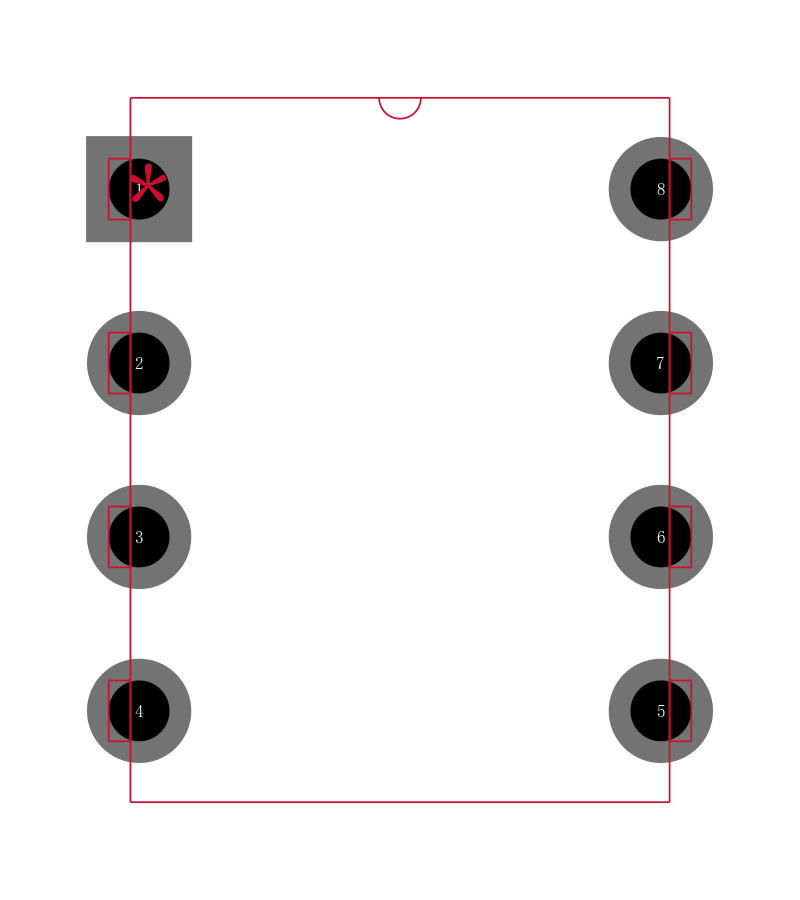

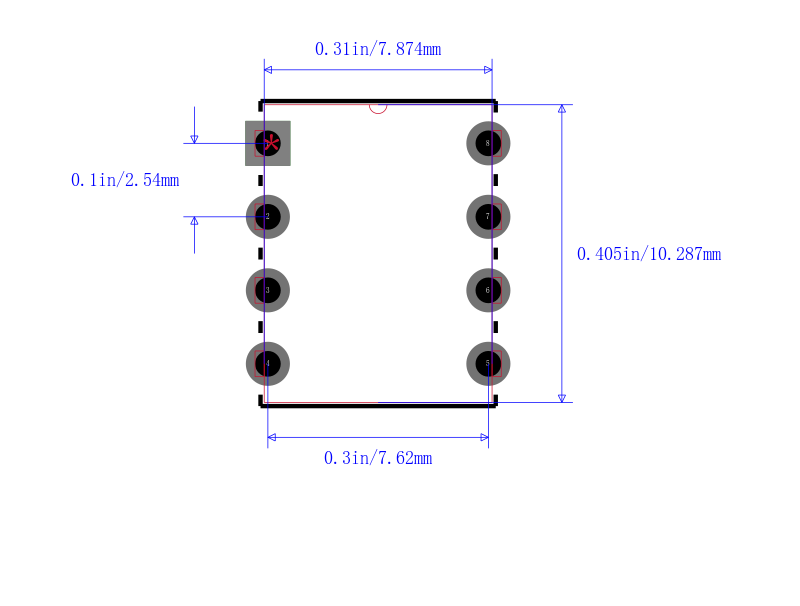

The AD834J, available in 8-lead PDIP and plastic SOIC packages, is specified over the commercial temperature range of 0°C to 70°C. The AD834A is also available in 8-lead CERDIP and plastic SOIC packages operating over the industrial temperature range of−40°C to +85°C. The , available in an 8-lead CERDIP, operates over the military temperature range of −55°C to +125°C. S-grade chips are also available.

Two application notes featuring the AD834 AN-212 and AN-216 can be found at www.analog.com. For additional applications circuits, consult the AD811 data sheet.

### Features and Benefits

.

DC to >500 MHz operation

.

Differential ±1 V full-scale inputs

.

Differential ±4 mA full-scale output current

|

.

Low distortion ≤0.05% for 0 dBm input

.

Supply voltages from ±4 V to ±9 V

.

Low power 280 mW typical at VS = ±5 V

---|---
