AD532SH/883B

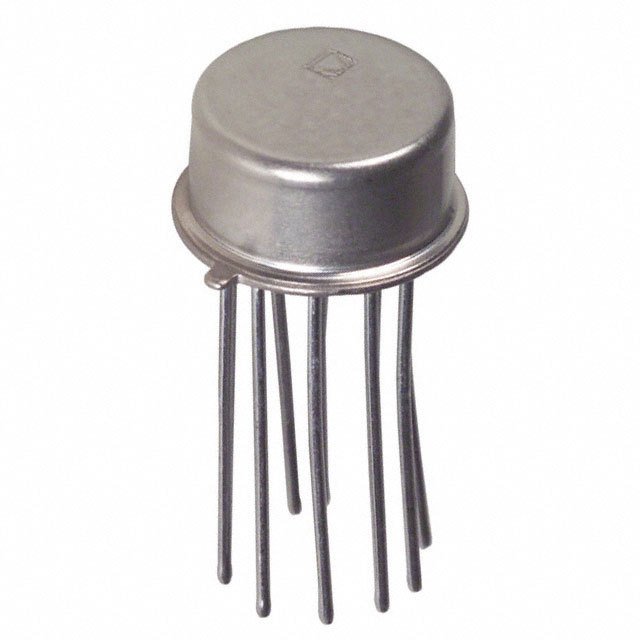

Analog Multiplier/Divider 4Bit 10Pin TO-100 Tube

Product Details

The AD532 is the first pretrimmed single chip monolithic multiplier/divider. It guarantees a maximum multiplying error of ±1.0% and a ±10 V output voltage without the need for any external trimming resistors or output op amp. Because the AD532 is internally trimmed, its simplicity of use provides design engineers with an attractive alternative to modular multipliers, and its monolithic construction provides significant advantages in size, reliability and economy. Further, the AD532 can be used as a direct replacement for other IC multipliers that require external trim networks such as the AD530.

### Features and Benefits

.

Pretrimmed to ±1.0% AD532K

.

No External Components Required

.

Guaranteed ±1.0% max 4-Quadrant

Error AD532K

.

Diff Inputs for X1 - X2 Y1 - Y2/10 V Transfer Function

.

Monolithic Construction, Low Cost
