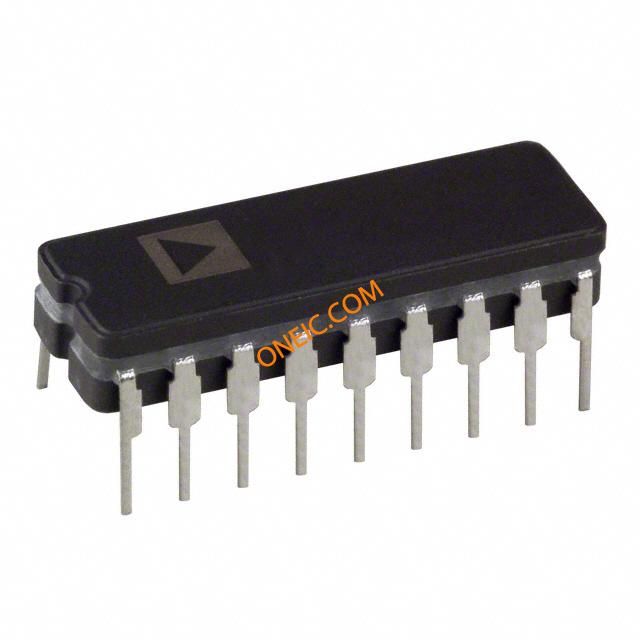

AD538BD图片1

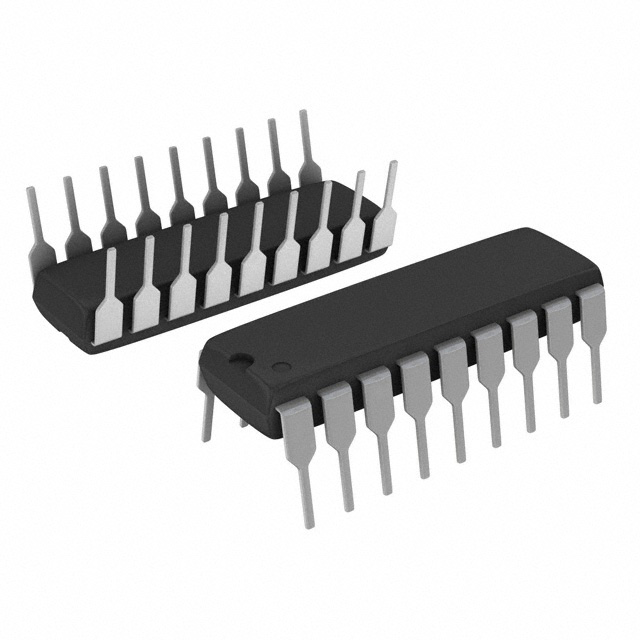

AD538BD图片2

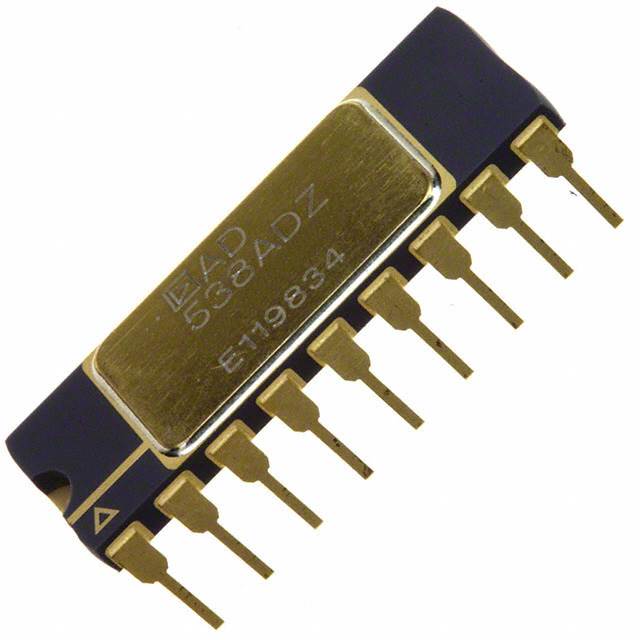

AD538BD图片3
AD538BD图片4
AD538BD图片5
AD538BD图片6
AD538BD图片7
AD538BD图片8
AD538BD图片9
AD538BD图片10
AD538BD图片11
AD538BD图片12
AD538BD图片13
AD538BD图片14
AD538BD图片15
AD538BD图片16
AD538BD图片17
AD538BD概述

实时模拟计算单元ACU Real-Time Analog Computational Unit ACU

Product Details

The AD538 is a monolithic real-time computational circuit which provides precision analog multiplication, division, and exponentiation. The combination of low input and output offset voltages and excellent linearity results in accurate computation over an unusually wide input dynamic range. Laser wafer trimming makes multiplication and division with errors as low as 0.25% of reading possible, while typical output offsets of 100 microV or less add to the overall off-the-shelf performance level. Real-time analog signal processing is further enhanced by the device"s 400 kHz bandwidth.

The AD538"s overall transfer function is Vo=VyVz/Vxm. Programming a particular function is via pin strapping. No external components are required for one-quadrant positive input multiplication and division. Two-quadrant bipolar numerator division is possible with the use of external level shifting and scaling resistors. The desired scale factor for both multiplication and division can be set using the on-chip +2 V or +10 V references, or controlled externally to provide simultaneous multiplication and division. Exponentiation with an M value from 0.2 to 5 can be implemented with the addition of one or two external resistors.

Direct log ratio computation is possible by utilizing only the log ratio and output sections of the chip. Access to the multiple summing junctions adds further to the AD538"s flexibility. Finally, a wide power-supply range of ±4.5 V to ±18 V allows operation from standard ±5 V, ± 12 V and ± 15 V supplies.

The AD538 is available in two accuracy grades A and B over the industrial -25°C to +85°C temperature range and one grade S over the military -55°C to +125°C temperature range. The device is packaged in an 18-pin TO-118 hermetic size-brazed ceramic DIP. A-grade chips are also available.

### Features and Benefits

.
VOUT = VY VZ divided by VXm Transfer Function
.
Wide Dynamic Range Denominator -1000:1
.
Simultaneous Multiplication and Division
.
Resistor-Programmable Powers and Roots
.
No External Trims Required
.
Low Input Offsets <100 µV
.
Low Error ±0.25% of Reading 100:1 Range
.
+2 V and +10 V On-Chip References
.
Monolithic Construction
AD538BD中文资料参数规格
技术参数

电源电压DC 4.50V min

供电电流 7 mA

位数 1

耗散功率 250 mW

转换速率 1.40 V/μs

工作温度Max 85 ℃

工作温度Min -25 ℃

电源电压Max 18 V

电源电压Min 4.5 V

输入电压 10 V

封装参数

安装方式 Through Hole

引脚数 18

封装 CDIP-18

外形尺寸

高度 3.05 mm

封装 CDIP-18

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

REACH SVHC版本 2015/12/17

海关信息

香港进出口证 NLR

数据手册

AD538BD引脚图与封装图
AD538BD引脚图
AD538BD封装图
AD538BD封装焊盘图
