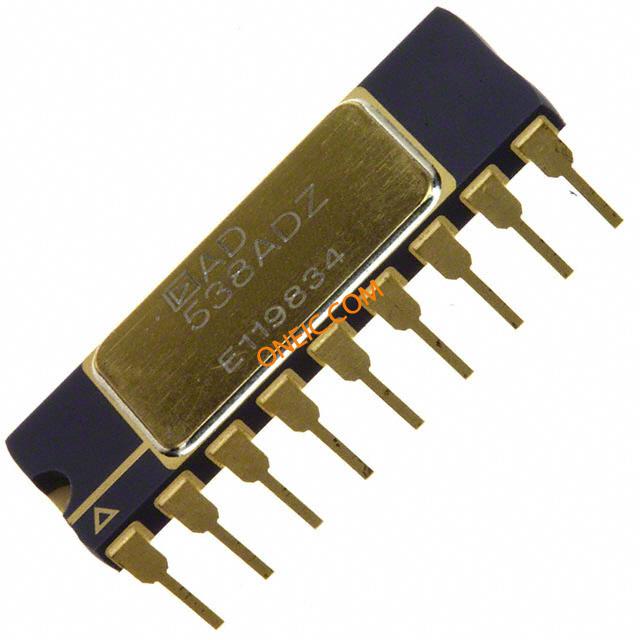

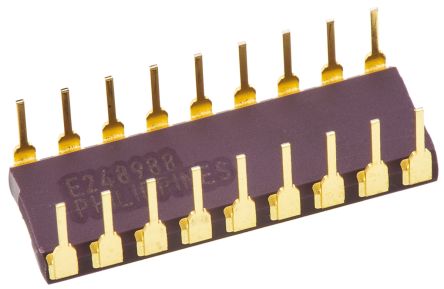

AD538ADZ

ANALOG DEVICES  AD538ADZ.  芯片, 模拟计算单元芯片

模拟乘法器, Analog Devices

一系列 Analog Devices 的模拟乘法器和除法器，适用于各种信号处理应用。 提供两象限和四象限型号，提供通孔和 SMT 页选项。 这些设备的典型应用包括差分比和百分比计算、代数和三角函数合成、精确电压控制的振荡器和过滤器、调制器和解调器、增益控制和有效值至直流转换。

得捷:
IC REALTIME ACU UNIT 18-CDIP

立创商城:
AD538ADZ

欧时:
Analog Devices AD538ADZ 分压器和电压倍增器, 单端输出, 2个象限, 最高400 kHz, 18引脚 SBCDIP封装

贸泽:
Special Purpose Amplifiers MULT/DIV ACU IC

艾睿:
Analog Multiplier/Divider 1-Bit 18-Pin SBCDIP Tube

安富利:
The AD538 is a monolithic real-time computational circuit that provides precision analog multiplication, division, and exponentiation. The combination of low input and output offset voltages and excellent linearity results in accurate computation over an unusually wide input dynamic range. Laser wafer trimming makes multiplication and division with errors as low as 0.25% of reading possible, while typical output offsets of 100 μV or less add to the overall off-the-shelf performance level. Real-time analog signal processing is further enhanced by the 400 kHz bandwidth of the device.The overall transfer function of the AD538 is VO = VYVZ/VX m. Programming a particular function is via pin strapping. No external components are required for one-quadrant positive input multiplication and division. Two-quadrant bipolar numerator division is possible with the use of external level shifting and scaling resistors. The desired scale factor for both multiplication and division can be set using the on-chip +2 V or +10 V references, or controlled externally to provide simultaneous multiplication and division. Exponentiation with an m value from 0.2 to 5 can be implemented with the addition of one or two external resistors.Direct log ratio computation is possible by using only the log ratio and output sections of the chip. Access to the multiple summing junctions adds further to the flexibility of the AD538. Finally, a wide power supply range of ±4.5 V to ±18 V allows operation from standard ±5 V, ±12 V and ±15 V supplies.The AD538 is available in two accuracy grades A and B over the industrial -25°C to +85°C temperature range and one grade S over the military -55°C to +125°C temperature range. The device is packaged in an 18-lead TO-118 hermetic side-brazed ceramic DIP. A-grade chips are also available.

Chip1Stop:
Analog Multiplier/Divider 1-Bit 18-Pin SBCDIP Tube

Verical:
Analog Multiplier/Divider 1-Bit 18-Pin SBCDIP Tube

Newark:
# ANALOG DEVICES  AD538ADZ  ANALOGUE COMPUTATIONAL UNIT, DIP-18 New

罗切斯特:
AD538 - Analog Multiple Function, 0.4MHz Band Width, BIPolar, CDIP18

DeviceMart:
IC REALTIME ACU UNIT 18-CDIP
