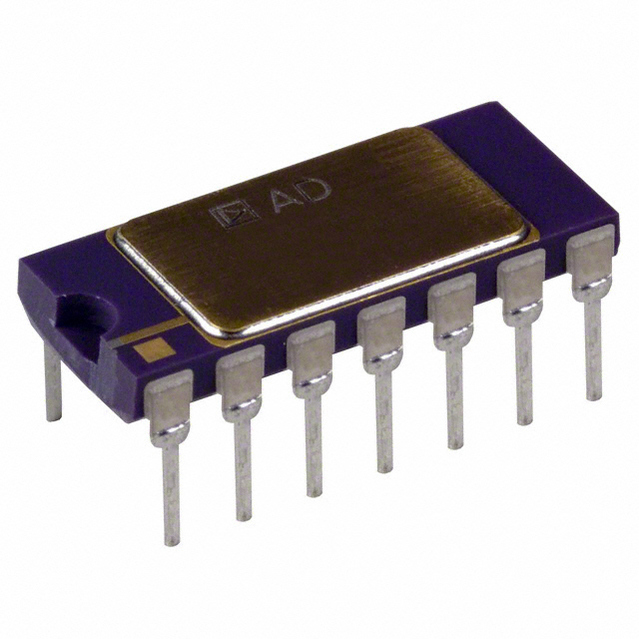

AD632TD

内部微调精密IC乘法器 Internally Trimmed Precision IC Multiplier

模拟乘法器/除法器 四象限 14-CDIP

得捷:
IC MULTIPLIER MONO PREC 14-CDIP

立创商城:
AD632TD

艾睿:
Analog Multiplier/Divider 4-Bit 14-Pin SBCDIP Tube

安富利:
The AD632 is an internally trimmed monolithic four-quadrant multiplier/divider. The AD632B has a maximum multiplying error of ±0.5% without external trims.Excellent supply rejection, low temperature coefficients, and long-term stability of the on-chip thin film resistors and buried zener reference preserve accuracy even under adverse conditions. The simplicity and flexibility of use provide an attractive alternative approach to the solution of complex control functions.The AD632 is pin-for-pin compatible with the industry standard AD532 but with improved specifications and a fully differential high impedance Z input. The AD632 is capable of providing gains of up to ×10, frequently eliminating the need for separate instrumentation amplifiers to precondition the inputs. The AD632 can be effectively employed as a variable gain differential input amplifier with high common-mode rejection. The effectiveness of the variable gain capability is enhanced by the inherent low noise of the AD632 at 90 µV rms.

Chip1Stop:
Analog Multiplier/Divider 4-Bit 14-Pin SBCDIP Tube

Verical:
Analog Multiplier/Divider 4-Bit 14-Pin SBCDIP Tube

罗切斯特:
Analog Multiplier Or Divider, 1 Func, 1MHz Band Width, BIPolar, CDIP14

DeviceMart:
IC MULTIPLIER MONO PREC 14-CDIP
