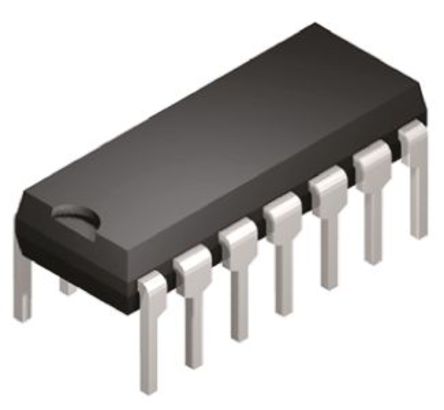

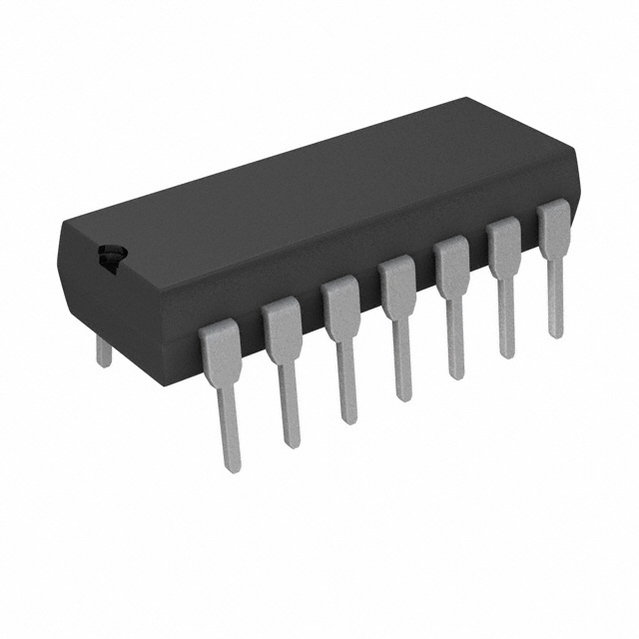

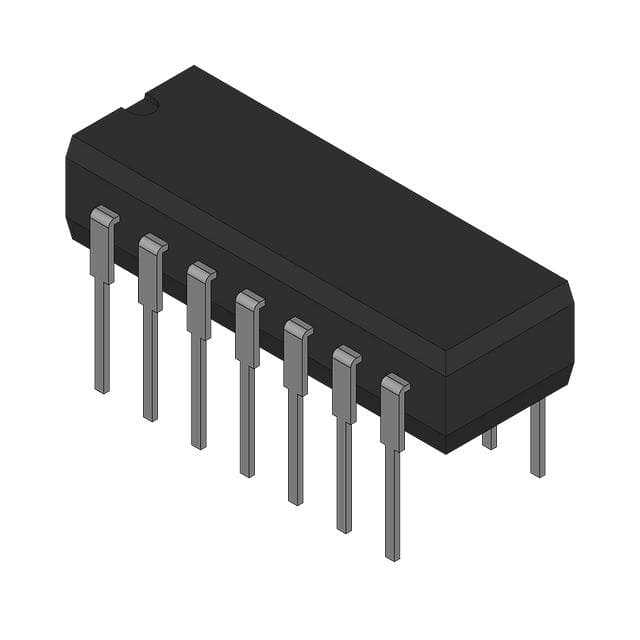

ATTINY24-20PU

ATMEL  ATTINY24-20PU  微控制器, 8位, 低功率高性能, ATtiny, 20 MHz, 2 KB, 128 Byte, 14 引脚, DIP

The is a 8-bit high-performance low-power AVR RISC-based Microcontroller combines 2kB ISP flash memory, 128B EEPROM, 128B SRAM, 12 general purpose I/O lines, 32 general purpose working registers, an 2 timers/counters 8-bit/16-bit with two PWM channels each, internal and external interrupts, 8-channel 10-bit A/D converter, programmable gain stage 1x, 20x for 12 differential ADC channel pairs, programmable watchdog timer with internal oscillator, internal calibrated oscillator and four software selectable power saving modes. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processor speed.

.

Advanced RISC architecture - 120 powerful instructions, most single clock cycle execution

.

Non-volatile program and data memories

.

Peripheral features - On-chip analogue comparator

.

debugWIRE on-chip debug system

.

In-System Programmable via SPI port

.

Internal and external interrupt sources, pin change interrupt on 12 pins

.

Low power idle, ADC noise reduction, standby and power-down modes

.

Enhanced power-on reset circuit

.

Programmable brown-out detection circuit

.

Internal calibrated oscillator

.

On-chip temperature sensor
