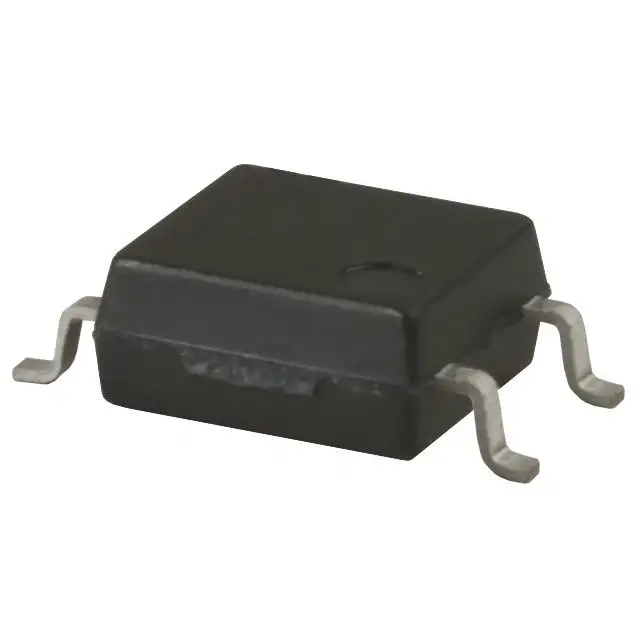

PANASONIC ELECTRIC WORKS AQY2C1R6PX MOSFET Relay, SPST-NO, 750mA, SMD, 30V, 0.4Ω, 200VAC
**1-Channel Form A Type Power PhotoMOS Relay**
* High capacity PhotoMOS Relay in a compact and slim 4-pin SIL
* Extremely low ON resistance
* Control low-level signal
* Low-level off state leakage current
* High I/O isolation voltage 2500 V
* Eliminates the need for a counterelectromotive protection diode in the drive circuit on the input side
* Power Photo MOS relays feature extremely low closed-circuit offset voltage to enable control of low-level analog signals without distortion.
额定电流 0.75 A
输出电压 0V ~ 30V
输出电流 750 mA
触点类型 SPST-NO
负载电流 750 mA
输入电流 0.2 mA
耗散功率 250 mW
隔离电压 200 VAC
输入电压Max 2.5 V
输出电压Max 30 V
输出电流Max 0.75 A
输入电流Min 0.2 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
输入电压 2.5 V
安装方式 Surface Mount
引脚数 4
封装 SMD-4
高度 0.8 mm
封装 SMD-4
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8541408000
