ATXMEGA32E5-M4U

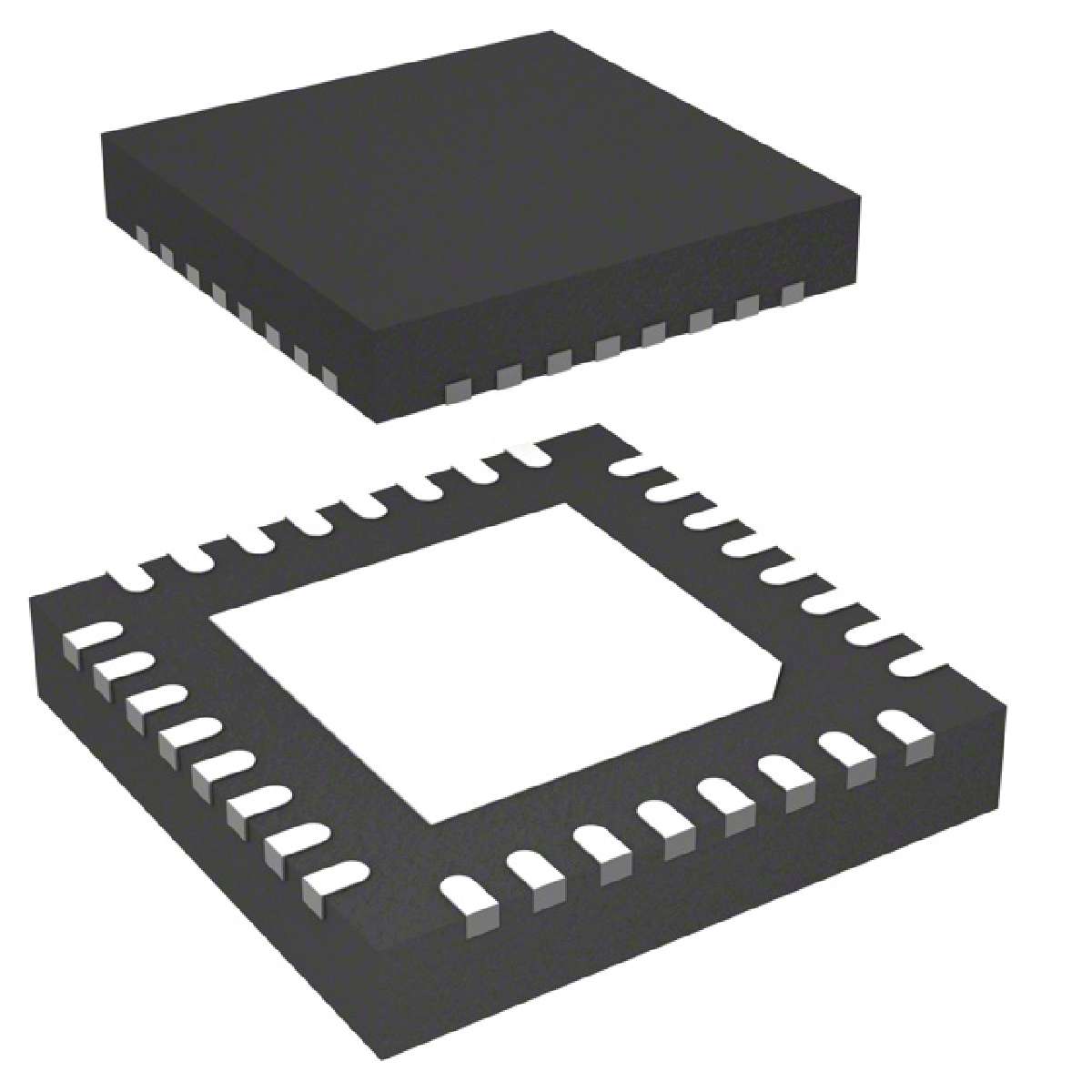

ATXMEGA32E5-M4U图片1

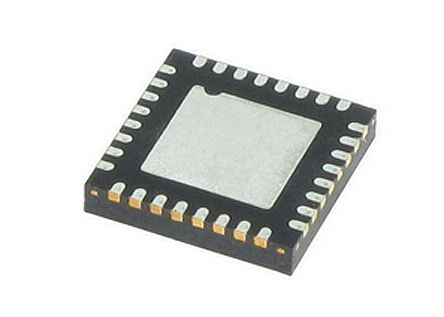

ATXMEGA32E5-M4U图片2
ATXMEGA32E5-M4U图片3
ATXMEGA32E5-M4U图片4
ATXMEGA32E5-M4U图片5
ATXMEGA32E5-M4U图片6
ATXMEGA32E5-M4U图片7
ATXMEGA32E5-M4U概述

ATMEL  ATXMEGA32E5-M4U  微控制器, 8位, 低功率高性能, AVR XMEGA, 32 MHz, 32 KB, 4 KB, 32 引脚, UQFN

The is a 8-bit high-performance low-power AVR® XMEGA® Microcontroller combines 32kB ISP flash memory plus 4kB boot code section with read-while-write capabilities, 1kB EEPROM, 4kB SRAM, eight-channel event system, a programmable multi-level interrupt controller, 26 general purpose I/O lines, one 16-bit real time counter, three flexible 16-bit timer/counters with compare modes and PWM, two USARTs with SPI Master mode, one Two-Wire Interfaces TWI with SMBus level 1 support, one Serial Peripheral Interface SPI, one 16-channel/12-bit 300kSPS A/D converter with optional differential input with programmable gain, one two-channel 12-bit 1MSPS D/A converter, two analogue comparators with window mode, a programmable watchdog timer with separate internal oscillator, accurate internal oscillators with PLL and prescaler and programmable brown-out detection.

.
Non-volatile program and data memories
.
Peripheral features - Four-channel enhanced DMA controller with 8/16-bit address match
.
Three 16-bit timers/counters - One timer/counter with four output compare or input capture channels
.
CRC-16 CRC-CCITT and CRC-32 IEEE 802.3 generator
.
XMEGA Custom Logic XCL module with timer, counter and logic functions
.
Two USARTs with full-duplex and single wire half-duplex configuration - Master SPI mode
.
One Two-Wire interface with dual address match I²C and SMBus compatible
.
One serial peripheral interface SPI
.
16-bit Real time counter with separate oscillator and digital correction
.
One sixteen-channel, 12-bit, 300ksps analogue to digital converter with offset and gain correction
.
One two-channel, 12-bit, 1Msps digital to analogue converter
.
Two analogue comparators with window compare function and current sources
.
External interrupts on all general purpose I/O pins
.
Programmable watchdog timer with separate on-chip ultra low power oscillator
.
QTouch® library support - Capacitive touch buttons, sliders and wheels
.
Power-on reset POR and programmable brown-out detection
.
Internal and external clock options with PLL
.
Programmable multilevel interrupt controller
.
Five sleep modes
.
Programming and debug interface
ATXMEGA32E5-M4U中文资料参数规格
技术参数

频率 32 MHz

工作电压 1.6V ~ 3.6V

针脚数 32

时钟频率 32.0 MHz

RAM大小 4 KB

模数转换数ADC 1

输入/输出数 26 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.6.3.6 V

电源电压Max 3.6 V

电源电压Min 1.6 V

封装参数

安装方式 Surface Mount

引脚数 32

封装 UQFN-32

外形尺寸

长度 4 mm

宽度 4 mm

高度 0.6 mm

封装 UQFN-32

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Unknown

包装方式 Each

制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, 工业

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

在线购买ATXMEGA32E5-M4U
型号: ATXMEGA32E5-M4U
制造商: ATMEL 爱特美尔
描述:ATMEL  ATXMEGA32E5-M4U  微控制器, 8位, 低功率高性能, AVR XMEGA, 32 MHz, 32 KB, 4 KB, 32 引脚, UQFN
替代型号ATXMEGA32E5-M4U
型号/品牌 代替类型 替代型号对比

ATXMEGA32E5-M4U

ATMEL 爱特美尔

当前型号

当前型号

ATXMEGA32E5-M4UR

爱特美尔

完全替代

ATXMEGA32E5-M4U和ATXMEGA32E5-M4UR的区别
