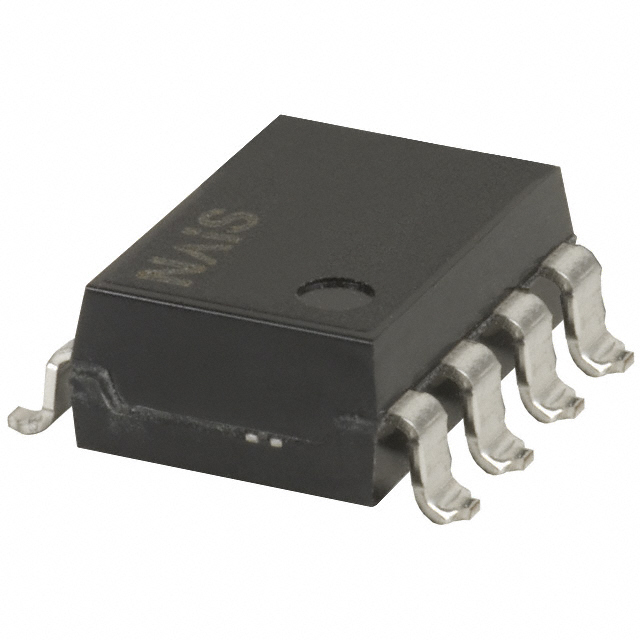

AQW225NAX图片1
AQW225NAX图片2
AQW225NAX图片3
AQW225NAX图片4
AQW225NAX图片5
AQW225NAX图片6
AQW225NAX概述

Relay SSR 50mA 1.5V DC-IN 0.12A 80V AC-DC-OUT 8Pin PDIP SMD T/R

RF Radio Frequency Type [2-Channel Form A Type]

—Low On resistance—

FEATURES

1\. PhotoMOS relay 2-channels Form A type with high response speed, low leakage current and low On resistance.

2\. Applicable for 2 Form A use as well as two independent 1 Form A use

3\. Compact 8-pin DIP size

   The device comes in a compact W 6.4×L 9.78×H 3.9 mm W .252×L .385×H .154 inch , 8-pin DIP size through hole terminal type.

4\. Low capacitance between output terminals ensures high response speed:

   The capacitance between output terminals is small, typically 10 pF. This enables for a fast operation speed of 200 µs.

5\. High sensitivity and low On resistance:

   Maximum 0.16 A of load current can be controlled with input current of 5 mA AQW225N. The 10 Ω On resistance is less than our conventional models. With no metallic contacts, the PhotoMOS relay has stable switching characteristics.

6\. Low-level off state leakage current:

   The SSR has an off state leakage current of several milliamperes, whereas the PhotoMOS relay has only 30 pA even with the rated load voltage of 80 V AQW225N.

7\. Controls low-level analog signals:

   PhotoMOS relay features extremely low closed-circuit offset voltages to enable control of small analog signals without distortion.

8\. Low terminals electromotive force: approx. 1 µV

TYPICAL APPLICATIONS

• Measuring equipment

• Scanner, IC checker, Board tester

AQW225NAX中文资料参数规格
技术参数

输出电压 ≤80.0 V

输出电流 ≤120 mA

触点类型 DPST-NO

负载电流 120 mA

输入电流 50 mA

耗散功率 850 mW

上升时间 200 µs

输出电压Max 80 V

输出电流Max 0.12 A

输入电压 1.14 VDC

封装参数

安装方式 Surface Mount

封装 SMD-8

外形尺寸

长度 9.78 mm

宽度 6.4 mm

高度 3.6 mm

封装 SMD-8

其他

产品生命周期 Obsolete

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买AQW225NAX
型号: AQW225NAX
制造商: Panasonic 松下
描述:Relay SSR 50mA 1.5V DC-IN 0.12A 80V AC-DC-OUT 8Pin PDIP SMD T/R
替代型号AQW225NAX
型号/品牌 代替类型 替代型号对比

AQW225NAX

Panasonic 松下

当前型号

当前型号

AQY225R2S

松下

功能相似

AQW225NAX和AQY225R2S的区别
