ANALOG DEVICES AD8061ARTZ-REEL7 运算放大器, 单路, 320 MHz, 1个放大器, 650 V/µs, 2.7V 至 8V, SOT-23, 5 引脚
The is a single Voltage Feedback Amplifier with rail-to-rail output. It has a bandwidth and slew rate typically found in current feedback amplifier. All have a wide input common-mode voltage range and output voltage swing, making them easy to use on single supplies as low as 2.7V. The AD8061 provides excellent overall performance. For video applications, their differential gain and phase errors are 0.01% and 0.04° into a 150R load, along with 0.1dB flatness out to 30MHz. Additionally, it offer wide bandwidth to 300MHz along with 650V/µs slew rate. The AD8061 offers a typical low power of 6.8mA/amplifier, while being capable of delivering up to 50mA of load current.
- .
- High speed
- .
- 6mV Low offset voltage
- .
- 35ns Settling time to 0.1% with 1V step
- .
- 35ns Overload recovery
- .
- 6.8mA/amplifier Typical supply current
输出电流 50mA @5V
供电电流 6.8 mA
电路数 1
通道数 1
针脚数 5
耗散功率 0.5 W
共模抑制比 62 dB
输入电容 1.00 pF
带宽 320 MHz
转换速率 650 V/μs
增益频宽积 90 MHz
输入阻抗 13.0 MΩ
增益 1.00 dB
输入补偿电压 1 mV
输入偏置电流 3.5 µA
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 320 MHz
耗散功率Max 500 mW
共模抑制比Min 62 dB
电源电压 2.7V ~ 8V
电源电压Max 8 V
电源电压Min 2.7 V

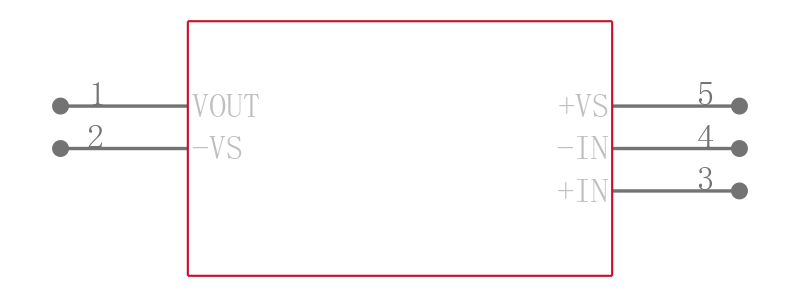

安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
高度 1.15 mm
封装 SOT-23-5
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Signal Processing, 成像, 视频和目视, 测试与测量, 消费电子产品, 时钟与计时, Clock & Timing, 成像, Imaging, Video & Vision, Consumer Electronics, Test & Measurement, 信号处理, 视频和目视
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 No
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD8061ARTZ-REEL7 ADI 亚德诺 | 当前型号 | 当前型号 |
AD8061ARTZ-R2 亚德诺 | 类似代替 | AD8061ARTZ-REEL7和AD8061ARTZ-R2的区别 |
AD8061ART-REEL7 亚德诺 | 类似代替 | AD8061ARTZ-REEL7和AD8061ART-REEL7的区别 |
AD8061ART-R2 亚德诺 | 类似代替 | AD8061ARTZ-REEL7和AD8061ART-R2的区别 |
