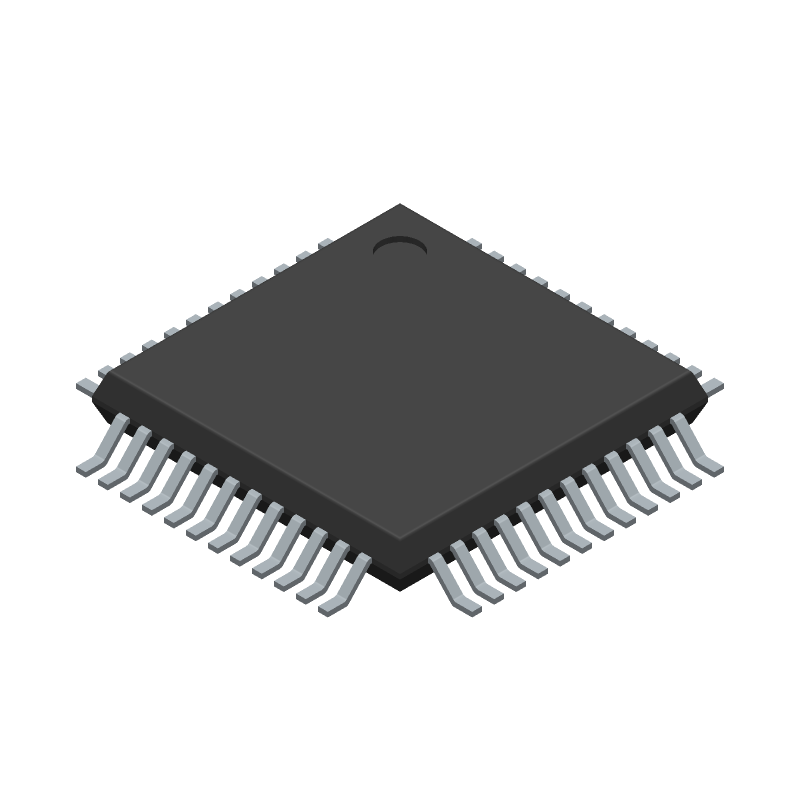

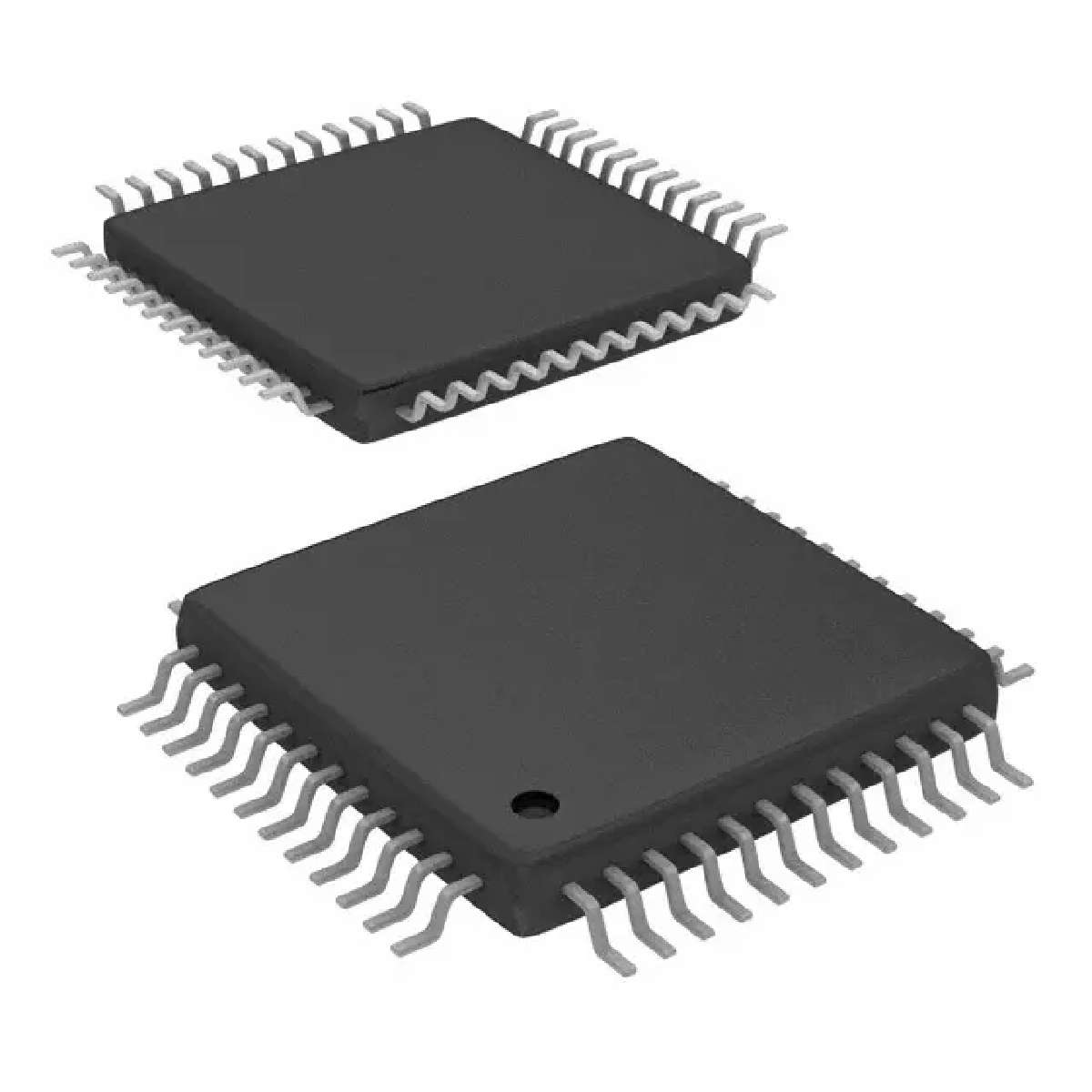

ATMEL ATSAMD20G16A-AU 微控制器, 32位, SAM D系列, ARM 皮质-M0+, 48 MHz, 64 KB, 8 KB, 48 引脚, TQFP
The is a SMART SAMD20 series 32-bit Low-power Microcontroller based on the high-performance ARM Cortex-M0+ RISC processor. It operates at a maximum speed of 48MHz and features 64kB of flash memory and 8kB of SRAM. Peripherals include six serial communication modules SERCOM configurable as UART/USART, eight 16-bit timers/counters, 32-bit real time clock and calendar, 16 PWM channels, one 14-channel 12-bit ADC, one 10-bit DAC and support for up to 120 touch channels. The device operates from 1.62 to 3.63V. SAMD20 microcontrollers are ideally suited for use in mobile devices due to their low current consumption. Sensor fusion processing is a key area where these devices can be used to differentiate products and with extensive range of sensor partners it is easy to add real-time motion processing to enrich the user experience.
频率 48 MHz
电源电压DC 1.62V min
工作电压 1.62V ~ 3.63V
针脚数 48
时钟频率 48.0 MHz
RAM大小 8 KB
FLASH内存容量 64 KB
输入/输出数 38 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.62.3.63 V
电源电压Max 3.63 V
电源电压Min 1.62 V
安装方式 Surface Mount
引脚数 48
封装 TQFP-48
封装 TQFP-48
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 Consumer Electronics, Safety, 安全, Lighting, 消费电子产品, 照明
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATSAMD20G16A-AU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATSAMD20G16A-AUT 爱特美尔 | 完全替代 | ATSAMD20G16A-AU和ATSAMD20G16A-AUT的区别 |
