The AD8139 is an ultralow noise, high performance differential amplifier with rail-to-rail output. With its low noise, high SFDR, and wide bandwidth, it is an ideal choice for driving analog-to-digital converters ADCs with resolutions to 18 bits. The AD8139 is easy to apply, and its internal common-mode feedback architecture allows its output common-mode voltage to be controlled by the voltage applied to one pin. The internal feedback loop also provides outstanding output balance as well as suppression of even-order harmonic distortion products. Fully differential and single-ended-to-differential gain configurations are easily realized by the AD8139. Simple external feedback networks consisting of four resistors determine the closed-loop gain of the amplifier.

The AD8139 is manufactured on the proprietary Analog Devices, Inc., second-generation XFCB process, enabling it to achieve low levels of distortion with input voltage noise of only 2.25 nV/√Hz.

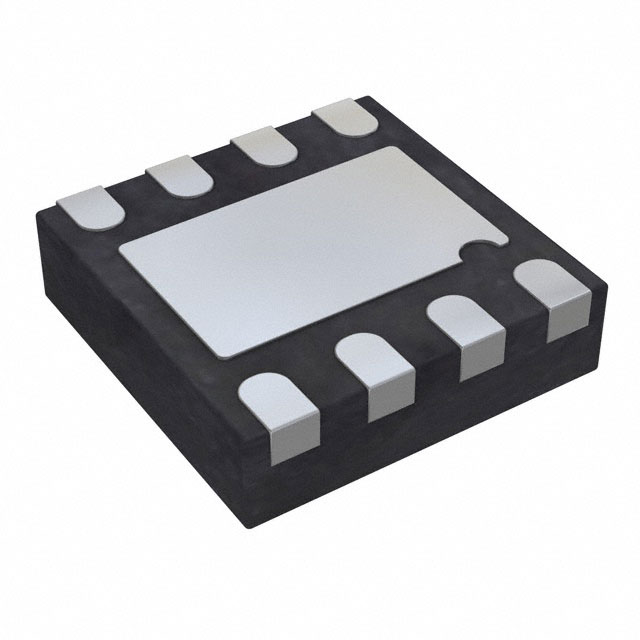

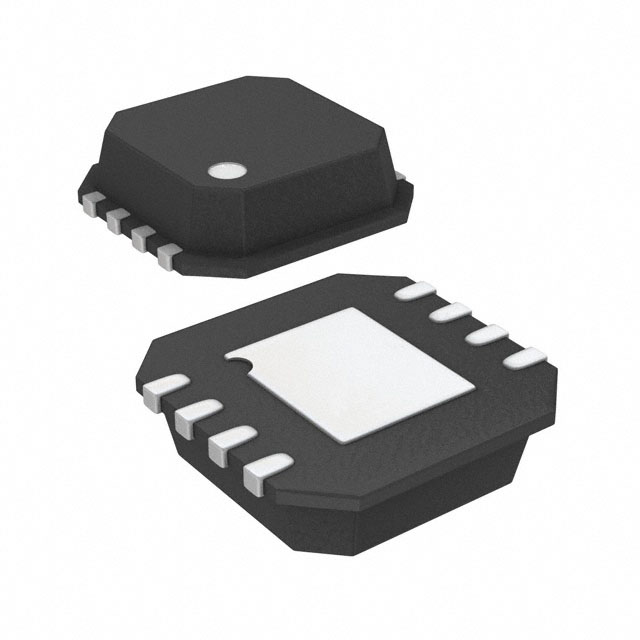

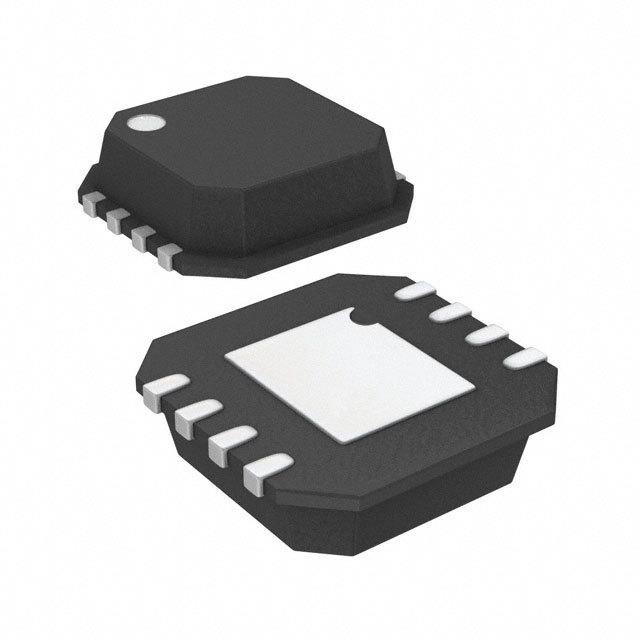

The AD8139 is available in an 8-lead SOIC package with an exposed paddle EP on the underside of its body and a 3 mm × 3 mm LFCSP. It is rated to operate over the temperature range of −40°C to +125°C.

Applications

.

ADC drivers to 18 bits

.

Single-ended-to-differential converters

.

Differential filters

.

Level shifters

.

Differential PCB drivers

.

Differential cable drivers

### Features and Benefits

.

Fully differential

.

Low noise

.

2.25 nV/√Hz

.

2.1 pA/√Hz

.

Low harmonic distortion

.

98 dBc SFDR at 1 MHz

.

85 dBc SFDR at 5 MHz

.

72 dBc SFDR at 20 MHz

.

High speed

.

410 MHz, 3 dB BW G = 1

.

800 V/µs slew rate

.

45 ns settling time to 0.01%

.

69 dB output balance at 1 MHz

.

80 dB dc CMRR

.

Low offset: ±0.5 mV maximum

.

Low input offset current: 0.5 µA maximum

.

Differential input and output

.

Differential-to-differential or single-ended-to-differential operation

.

Rail-to-rail output

.

Adjustable output common-mode voltage

.

Wide supply voltage range: 5 V to 12 V

.

Available in a small SOIC package and an 8-lead LFCSP
