AD8317ACPZ-R7

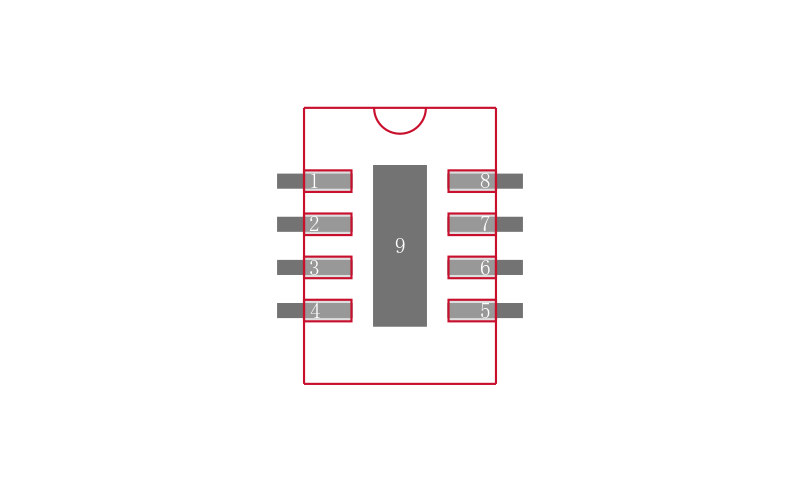

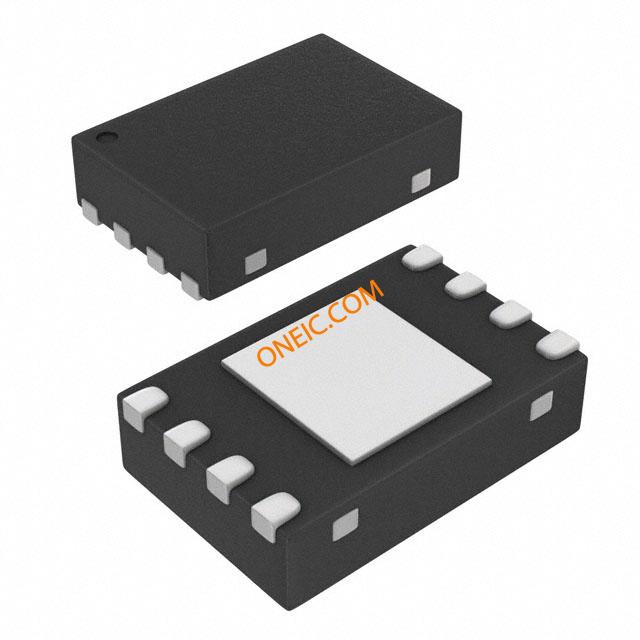

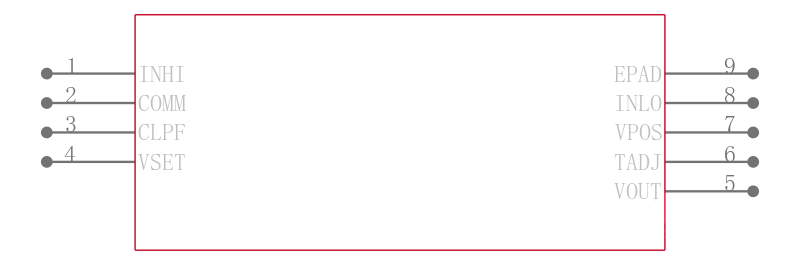

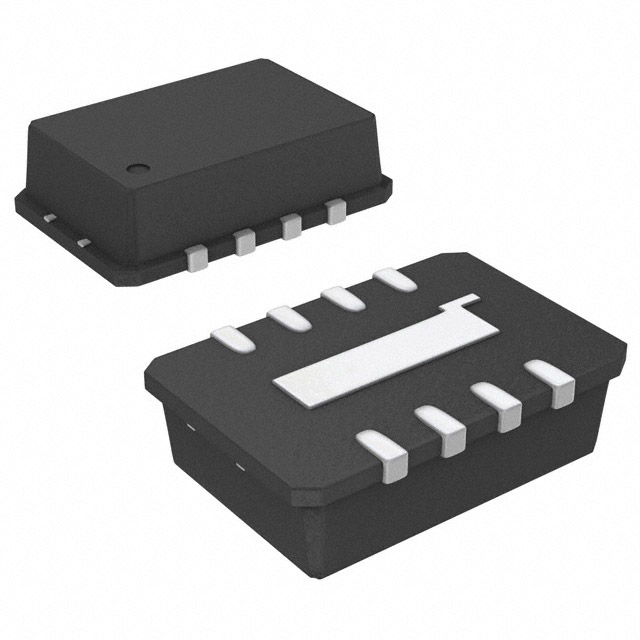

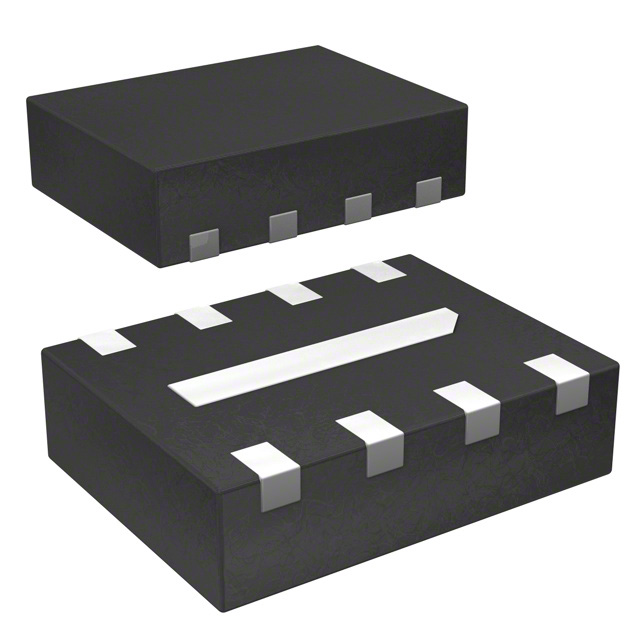

ANALOG DEVICES  AD8317ACPZ-R7  对数放大器, 1个放大器, 55 dB, 20 ns, LFCSP, 8 引脚

The is a 55dB Demodulating Logarithmic Detector/Controller that can accurately convert an RF signal at its input to an equivalent decibel-scaled output. It employs the progressive compression technique over a cascaded amplifier chain, each stage of which is equipped with a detector cell. The device can be used in either measurement or controller modes. It maintains accurate log conformance for signals of 1MHz to 8GHz and provides useful operation to 10GHz. The device provides unprecedented logarithmic intercept stability vs. ambient temperature conditions. It can be configured to provide a control voltage to a power amplifier or a measurement output from the VOUT pin. Because the output can be used for controller applications, special attention has been paid to minimize wideband noise. In this mode, the setpoint control voltage is applied to the VSET pin.

.

1MHz to 10GHz Wide bandwidth

.

±1.0dB Accuracy over-temperature

.

±0.5dB Stability over-temperature

.

Low noise measurement/controller output

.

6ns/10ns fall/rise Pulse response time

.

Fabricated using high speed SiGe process

ESD sensitive device, take proper precaution while handling the device.
