AMP03GPZ

ANALOG DEVICES  AMP03GPZ  差分放大器, 单位增益, 1 放大器, 750 µV, 1 dB, 3 MHz, -40 °C, 85 °C

电流感应放大器，Analog Devices

如果存在较大共模电压，电流感应放大器可准确放大较小电压。

电流感应放大器的电压输出与极低值电阻器的电压降成比例，通常在高电流电源导轨。 因此可测量电源导轨的电流。

得捷:
IC OPAMP DIFF 1 CIRCUIT 8DIP

欧时:

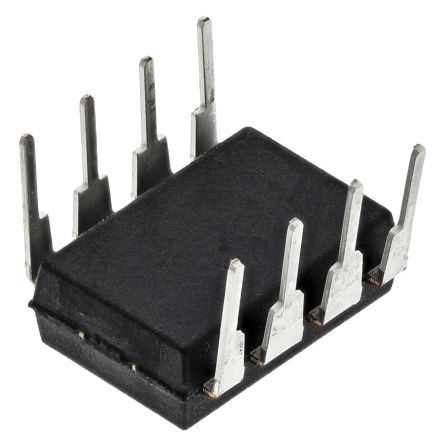

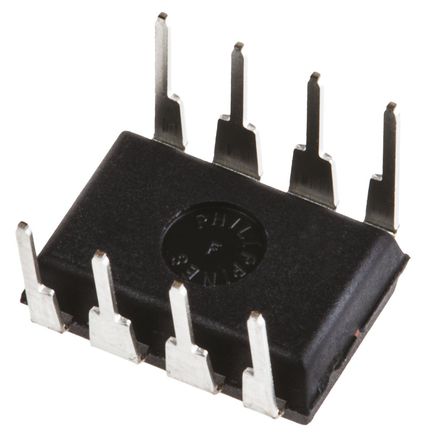

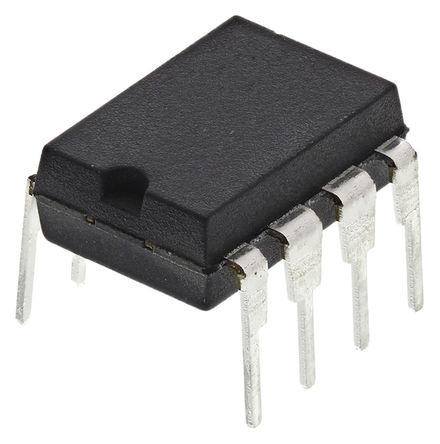

Analog Devices AMP03GPZ 差分放大器, 8引脚 PDIP封装

立创商城:
AMP03GPZ

贸泽:
Differential Amplifiers High-Spd Diff IC

艾睿:
SP Amp DIFF AMP Single ±18V 8-Pin PDIP N Tube

Jameco:
SP Amp Differential AMP Single ±18 Volt 8-Pin PDIP

安富利:
The AMP03 is a monolithic unity-gain, high speed differential amplifier. Incorporating a matched thin film resistor network, the AMP03 features stable operation over temperature without requiring expensive external matched components. The AMP03 is a basic analog building block for differential amplifier and instrumentation applications.The differential amplifier topology of the AMP03 both amplifies the difference between two signals and provides extremely high rejection of the common-mode input voltage. By providing common-mode rejection CMR of 100 dB typical, the AMP03 solves common problems encountered in instrumentation design. As an example, the AMP03 is ideal for performing either addition or subtraction of two signals without using expensive externally matched precision resistors. The large common-mode rejection is made possible by matching the internal resistors to better than 0.002% and maintaining a thermally symmetric layout. Additionally, due to high CMR over frequency, the AMP03 is an ideal general amplifier for buffering signals in a noisy environment into data acquisition systems.The AMP03 is a higher speed alternative to the INA105. Featuring slew rates of 9.5 V/µs and a bandwidth of 3 MHz, the AMP03 offers superior performance to the INA105 for high speed current sources, absolute value amplifiers, and summing amplifiers.

TME:

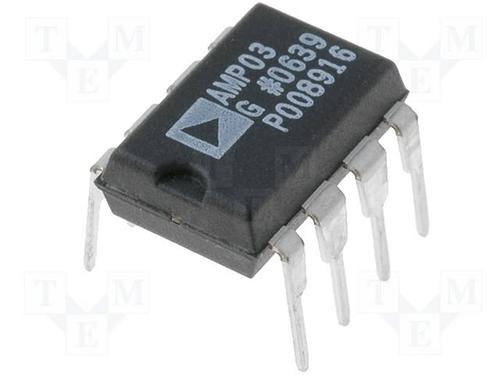

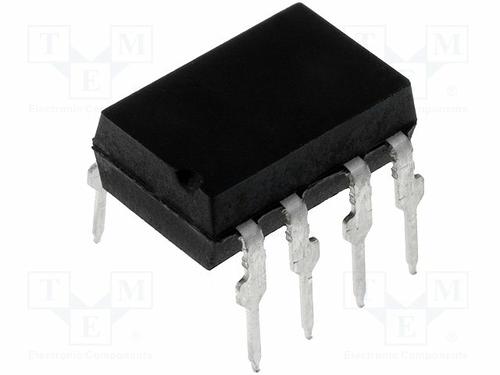

Operational amplifier; 3MHz; 4.5÷18VDC; Channels:1; DIP8

Verical:
SP Amp DIFF AMP Single ±18V 8-Pin PDIP N Tube

Newark:
# ANALOG DEVICES  AMP03GPZ  Differential Amplifier, Unity-Gain, 1 Amplifiers, 750 µV, 1 dB, 3 MHz, -40 °C, 85 °C

DeviceMart:
IC AMP DIFF PREC LDIST 45MA 8DIP
