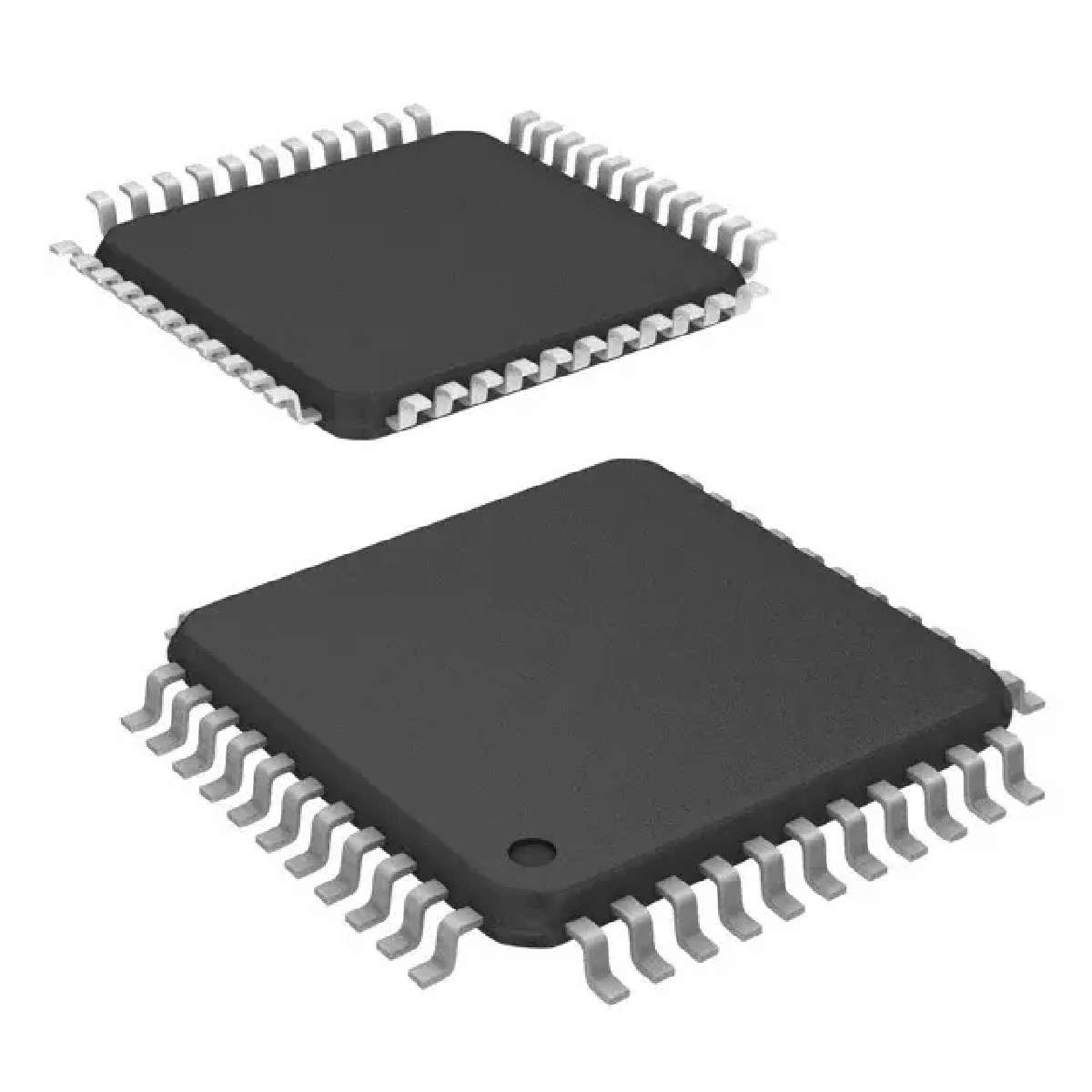

ATXMEGA32D4-AU图片1

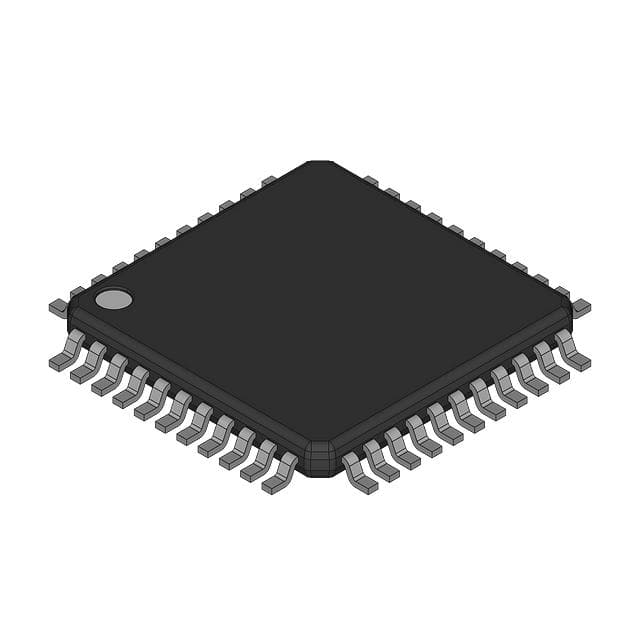

ATXMEGA32D4-AU图片2

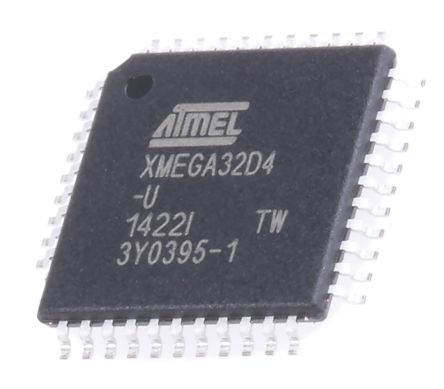

ATXMEGA32D4-AU图片3

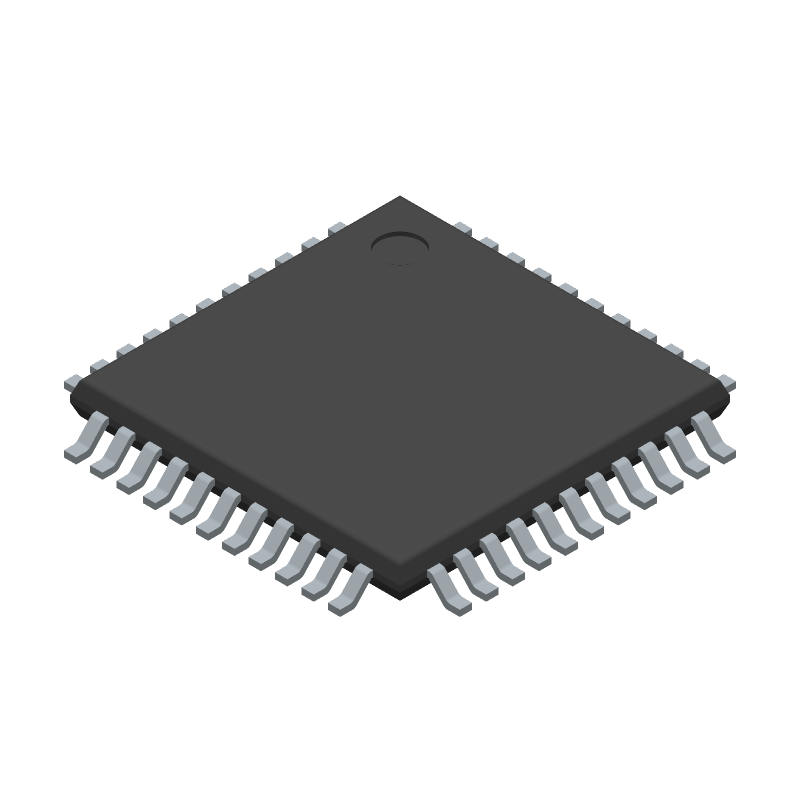

ATXMEGA32D4-AU图片4
ATXMEGA32D4-AU图片5
ATXMEGA32D4-AU图片6
ATXMEGA32D4-AU图片7
ATXMEGA32D4-AU图片8
ATXMEGA32D4-AU图片9
ATXMEGA32D4-AU图片10
ATXMEGA32D4-AU图片11
ATXMEGA32D4-AU图片12
ATXMEGA32D4-AU图片13
ATXMEGA32D4-AU概述

ATMEL  ATXMEGA32D4-AU  微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 32 KB, 4 KB, 44 引脚, TQFP

The is a 8-bit high-performance low-power AVR XMEGA Microcontroller combines 32kB ISP flash memory 4kB boot code section with read-while-write capabilities, 1kB EEPROM, 4kB SRAM, four-channel event system, a programmable multi-level interrupt controller, 34 general purpose I/O lines, a 16-bit real time counter, four flexible 16-bit timer/counters with compare modes and PWM, two USARTs, 2 Two-Wire Interfaces TWIs, two Serial Peripheral Interfaces SPIs, one 12-channel/12-bit A/D converter with optional differential input with programmable gain, two analogue comparators with window mode, a programmable watchdog timer with separate internal oscillator, accurate internal oscillators with PLL and prescaler and programmable brown-out detection. The Program and Debug Interface PDI, a fast 2-pin interface for programming and debugging, is available.

.
Non-volatile program and data memories
.
Peripheral features - Four-channel event system, four 16-bit timer/counters
.
Power-on reset POR and programmable brown-out detection
.
Internal and external clock options with PLL and prescaler
.
Programmable multilevel interrupt controller
.
Five sleep modes
.
Programming and debug interfaces
.
PDI Program and Debug Interface
ATXMEGA32D4-AU中文资料参数规格
技术参数

频率 32 MHz

电源电压DC 1.60V min

工作电压 1.6V ~ 3.6V

针脚数 44

时钟频率 32 MHz

RAM大小 4 KB

FLASH内存容量 32 KB

模数转换数ADC 1

输入/输出数 34 Input

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 1.6V ~ 3.6V

电源电压Max 3.6 V

电源电压Min 1.6 V

封装参数

安装方式 Surface Mount

引脚数 44

封装 TQFP-44

外形尺寸

长度 10 mm

宽度 10 mm

高度 1.05 mm

封装 TQFP-44

物理参数

工作温度 -40℃ ~ 85℃ TA

其他

产品生命周期 Active

包装方式 Tray

制造应用 Computers & Computer Peripherals, Industrial, 工业, 计算机和计算机周边

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15

数据手册

ATXMEGA32D4-AU引脚图与封装图
ATXMEGA32D4-AU引脚图
ATXMEGA32D4-AU封装焊盘图
在线购买ATXMEGA32D4-AU
型号: ATXMEGA32D4-AU
制造商: ATMEL 爱特美尔
描述:ATMEL  ATXMEGA32D4-AU  微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 32 KB, 4 KB, 44 引脚, TQFP
替代型号ATXMEGA32D4-AU
型号/品牌 代替类型 替代型号对比

ATXMEGA32D4-AU

ATMEL 爱特美尔

当前型号

当前型号

ATXMEGA32D4-AUR

爱特美尔

类似代替

ATXMEGA32D4-AU和ATXMEGA32D4-AUR的区别
