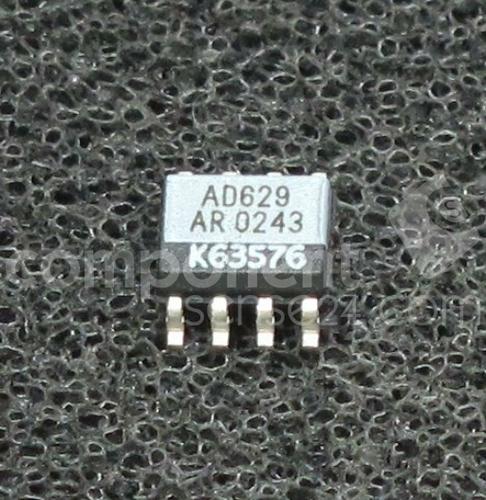

高共模电压，差分放大器 High Common-Mode Voltage, Difference Amplifier
Need to have an indication of current being drawn in parts of your circuit? Implement this differential amplifier differential amplifier from Analog Devices for current sensing features. Its typical dual supply voltage is ±3|±5|±9|±12|±15 V, with a minimum of ±2.5 V and maximum of ±18 V. This part has a temperature range of -40 °C to 85 °C. This device uses dual power supplies. It has a single channel per chip.
供电电流 900 µA
电路数 1
通道数 1
共模抑制比 77 dB
转换速率 2.10 V/μs
输入补偿电压 200 µV
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 500 kHz
增益带宽 77 dB
共模抑制比Min 75dB ~ 85dB
电源电压Max 30V ~ 50V
安装方式 Surface Mount
引脚数 8
封装 SOIC-8
高度 1.5 mm
封装 SOIC-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 Non-Compliant
含铅标准 Contains Lead
香港进出口证 NLR
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
AD629AR ADI 亚德诺 | 当前型号 | 当前型号 |
AD629ARZ-R7 亚德诺 | 类似代替 | AD629AR和AD629ARZ-R7的区别 |
AD629ARZ-RL 亚德诺 | 类似代替 | AD629AR和AD629ARZ-RL的区别 |
