AD585SQ/883B概述

Sample and Hold 1CH 5us 14Pin CDIP Tube

Product Details

The AD585 is a complete monolithic sample-and-hold circuit consisting of a high performance operational amplifier in series with an ultralow leakage analog switch and a FET input integrating amplifier. An internal holding capacitor and matched applications resistors have been provided for high precision and applications flexibility.

The performance of the AD585 makes it ideal for high speed 10- and 12-bit data acquisition systems, where fast acquisition time, low sample-to-hold offset, and low droop are critical. The AD585 can acquire a signal to ±0.01% in 3 µs maximum, and then hold that signal with a maximum sample-to-hold offset of 3 mV and less than 1 mV/ms droop, using the on-chip hold capacitor. If lower droop is required, it is possible to add a larger external hold capacitor.

The high speed analog switch used in the AD585 exhibits aperture jitter of 0.5 ns, enabling the device to sample full scale 20 V peak-to-peak signals at frequencies up to 78 kHz with 12-bit precision.

The AD585 can be used with any user-defined feedback net-work to provide any desired gain in the sample mode. On-chip precision thin-film resistors can be used to provide gains of +1, -1, or +2. Output impedance in the hold mode is sufficiently low to maintain an accurate output signal even when driving the dynamic load presented by a successive-approximation A/D converter. However, the output is protected against damage from accidental short circuits.

The control signal for the HOLD command can be either active high or active low. The differential HOLD signal is compatible with all logic families, if a suitable reference level is provided. An on-chip TTL reference level is provided for TTL compatibility.

The AD585 is available in three performance grades. The JP grade is specified for the 0°C to +70°C commercial temperature range and packaged in a 20-pin PLCC. The AQ grade is specified for the -25°C to +85°C industrial temperature range and is packaged in a 14-pin cerdip. The SQ and SE grades are specified for the -55°C to +125°C military temperature range and are packaged in a 14-pin cerdip and 20-pin LCC.

### Features and Benefits

.
3.0 ms Acquisition Time to 60.01% max
.
Low Droop Rate: 1.0 mV/ms max
.
Sample/Hold Offset Step: 3 mV max
.
Aperture Jitter: 0.5 ns
.
Extended Temperature Range: –55°C to +125°C
.
Internal Hold Capacitor
.
Internal Application Resistors
.
See datasheet for additional features
AD585SQ/883B中文资料参数规格
技术参数

通道数 1

工作温度Max 125 ℃

工作温度Min -55 ℃

电源电压Max 15 V

电源电压Min 15 V

封装参数

安装方式 Through Hole

引脚数 14

封装 CDIP-14

外形尺寸

长度 19.55 mm

宽度 6.6 mm

高度 3.76 mm

封装 CDIP-14

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tube

符合标准

RoHS标准 Non-Compliant

含铅标准 Contains Lead

海关信息

ECCN代码 EAR99

数据手册

AD585SQ/883B引脚图与封装图
AD585SQ/883B引脚图
AD585SQ/883B封装图
AD585SQ/883B电路图

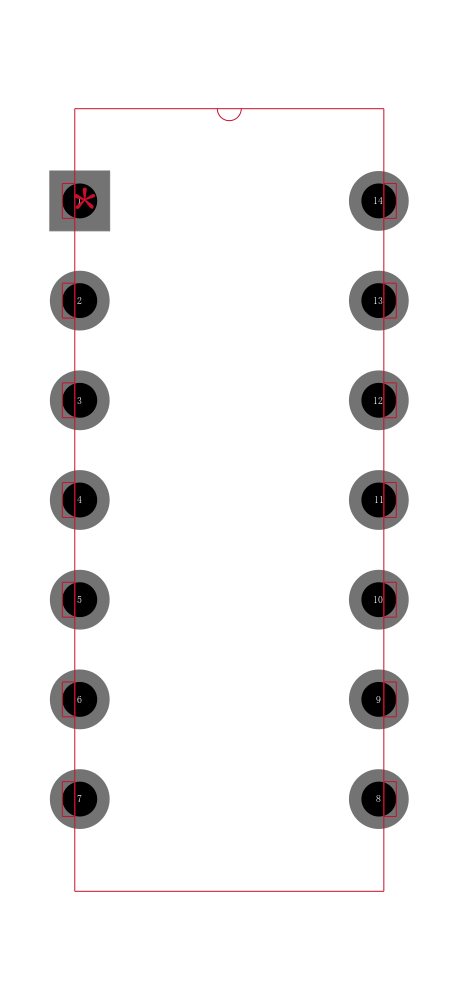

AD585SQ/883B封装焊盘图
在线购买AD585SQ/883B
型号: AD585SQ/883B
制造商: ADI 亚德诺
描述:Sample and Hold 1CH 5us 14Pin CDIP Tube
替代型号AD585SQ/883B
型号/品牌 代替类型 替代型号对比

AD585SQ/883B

ADI 亚德诺

当前型号

当前型号

AD585SQ

亚德诺

完全替代

AD585SQ/883B和AD585SQ的区别

5962-8754001CA

亚德诺

完全替代

AD585SQ/883B和5962-8754001CA的区别

AD585AQ/+

亚德诺

完全替代

AD585SQ/883B和AD585AQ/+的区别
