单电源，固定G = 2 ，高速视频放大器与电荷泵 Single-Supply, Fixed G = 2, High Speed, Video Amplifier with Charge Pump
Thanks to Analog Devices" video distribution amplifier, you will be able to maintain a high quality image while processing or analyzing most video samples. This video amplifier has a temperature range of -40 °C to 105 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This device uses a single power supply.
输出电流 19.0 mA
供电电流 17 mA
电路数 3
通道数 3
输入电容 1.50 pF
转换速率 740 V/μs
输入阻抗 15.0 MΩ
工作温度Max 105 ℃
工作温度Min -40 ℃
3dB带宽 265 MHz
电源电压 3V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 3 V
安装方式 Surface Mount
引脚数 16

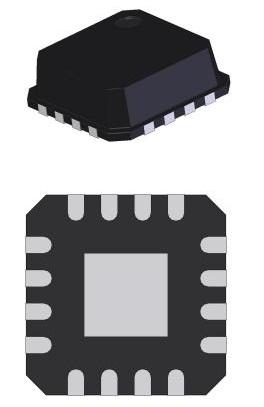

封装 LFCSP-16
高度 0.83 mm
封装 LFCSP-16
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 电流反馈
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
军工级 No
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ADA4859-3ACPZ-R2 ADI 亚德诺 | 当前型号 | 当前型号 |
ADA4859-3ACPZ-RL 亚德诺 | 完全替代 | ADA4859-3ACPZ-R2和ADA4859-3ACPZ-RL的区别 |
ADA4859-3ACPZ-R7 亚德诺 | 类似代替 | ADA4859-3ACPZ-R2和ADA4859-3ACPZ-R7的区别 |
ADA4856-3YCPZ-R7 亚德诺 | 类似代替 | ADA4859-3ACPZ-R2和ADA4856-3YCPZ-R7的区别 |
