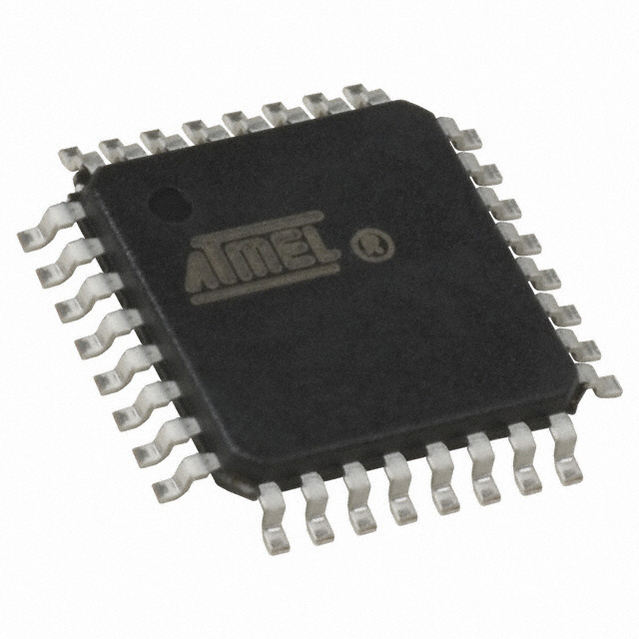

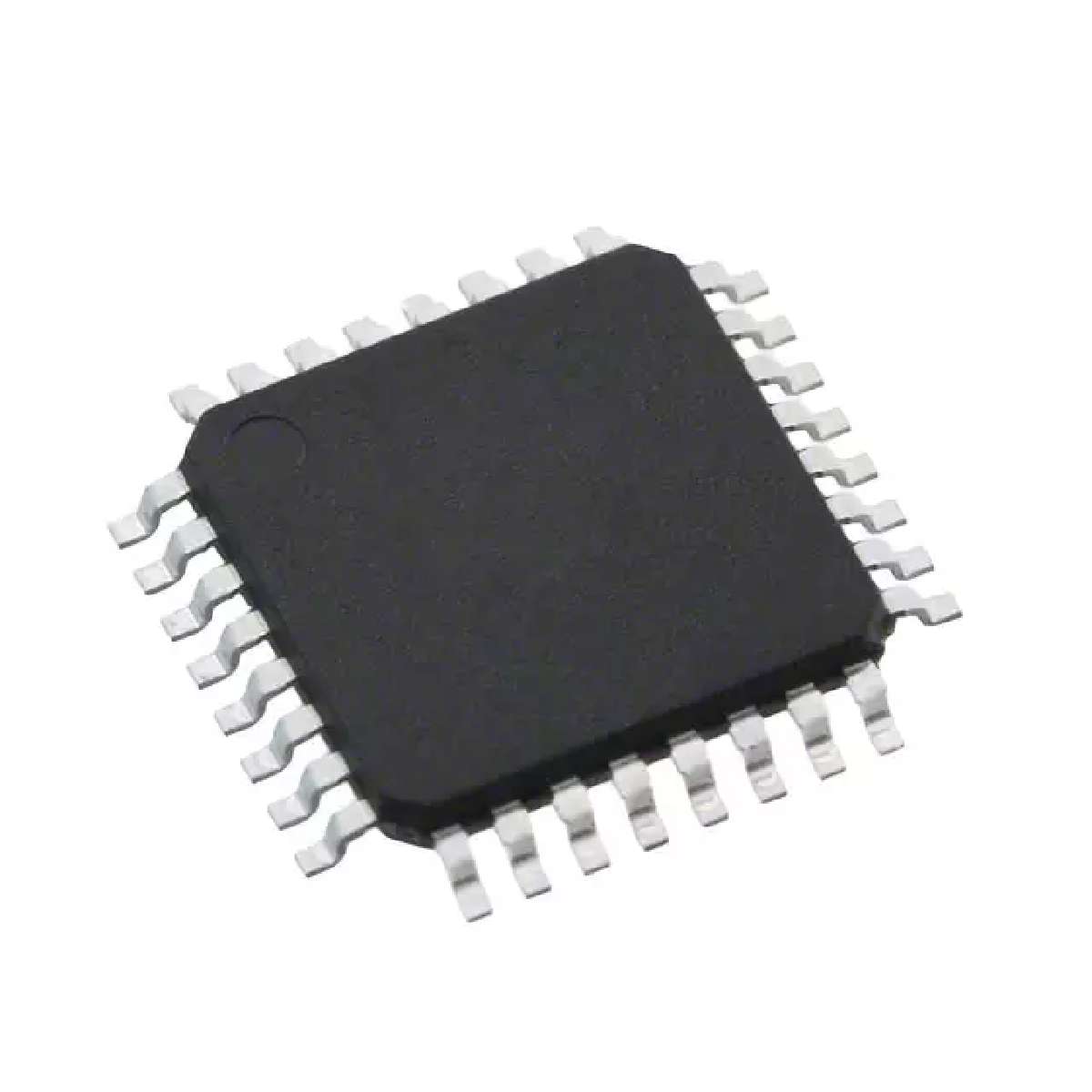

ATMEGA88V-10AU

ATMEL  ATMEGA88V-10AU  微控制器, 8位, 低功率高性能, ATmega, 10 MHz, 8 KB, 1 KB, 32 引脚, TQFP

The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 8kB ISP flash memory, 1kB SRAM, 512byte EEPROM, a 8-channel/10-bit A/D converter and debugWIRE for on-chip debugging. The device supports a throughput of 20MIPS at 20MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel"s high density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Five sleep modes - Idle, ADC noise reduction, power-save, power-down and standby

.

131 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 20MIPS throughput at 20MHz

.

On-chip 2-cycle multiplier

.

QTouch® library support

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change

.

Two 8-bit timers/counters with separate prescalers and compare modes

.

One 16-bit timer/counter with separate prescaler, compare mode and capture mode

.

Real-time counter with separate oscillator

.

Six PWM channels

.

Programmable serial USART

.

Master/Slave SPI serial interface
