ATMEL ATMEGA8515L-8JU 微控制器, 8位, 低功率高性能, ATmega, 8 MHz, 8 KB, 512 Byte, 44 引脚, LCC
The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 8kB of programmable flash memory, 544B internal memory, up to 64kB external SRAM and 512byte EEPROM. The device supports a throughput of 16MIPS at 16MHz and operates between 2.7 to 5.5V. By executing instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using Atmel"s high density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional nonvolatile memory programmer, or by an on-chip boot program running on the AVR core. The boot program can use any interface to download the application program in the application flash memory.
电源电压DC 2.70V min
针脚数 44
时钟频率 8.00 MHz
RAM大小 512 b
位数 8
FLASH内存容量 8 KB
输入/输出数 35 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 44

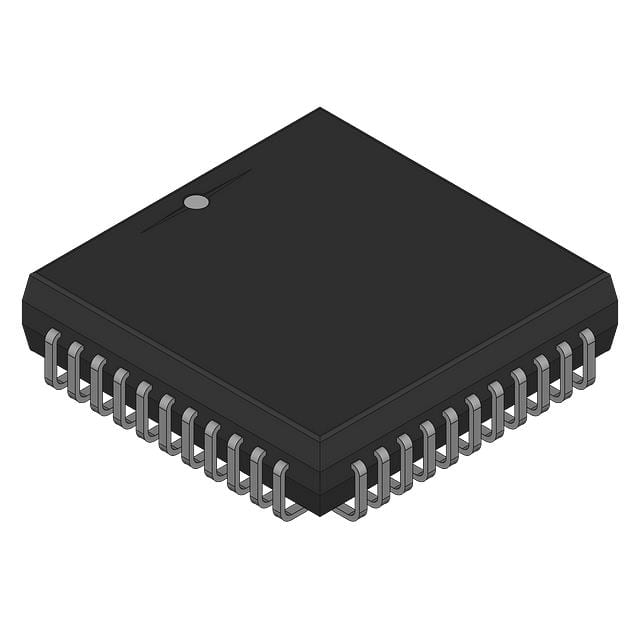

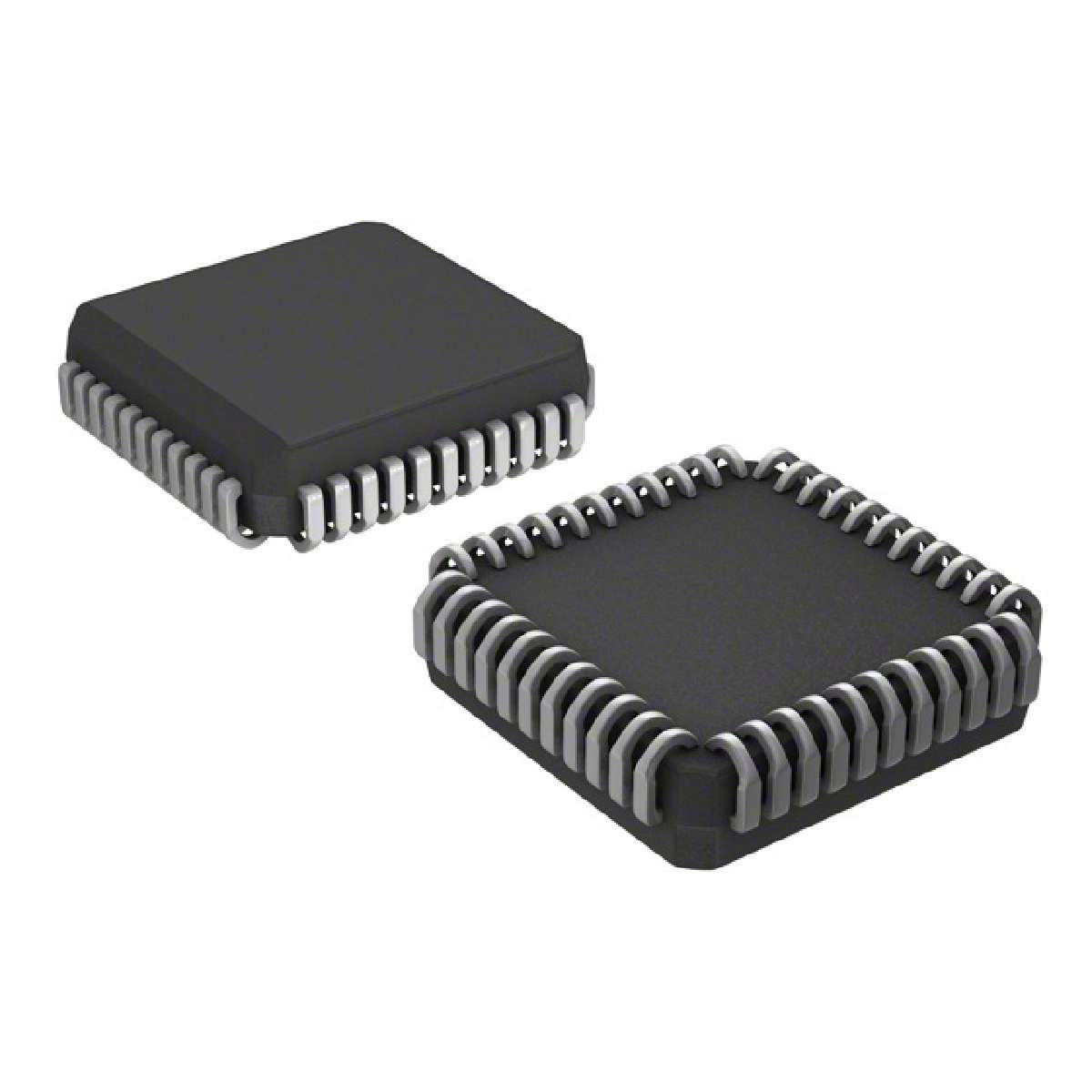

封装 PLCC-44
长度 16.66 mm
宽度 16.662 mm
高度 4.064 mm
封装 PLCC-44
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
香港进出口证 NLR
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATMEGA8515L-8JU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATMEGA8515-16AU 微芯 | 功能相似 | ATMEGA8515L-8JU和ATMEGA8515-16AU的区别 |
ATMEGA8515-16JU 微芯 | 功能相似 | ATMEGA8515L-8JU和ATMEGA8515-16JU的区别 |
ATMEGA8515L-8AU 微芯 | 功能相似 | ATMEGA8515L-8JU和ATMEGA8515L-8AU的区别 |
