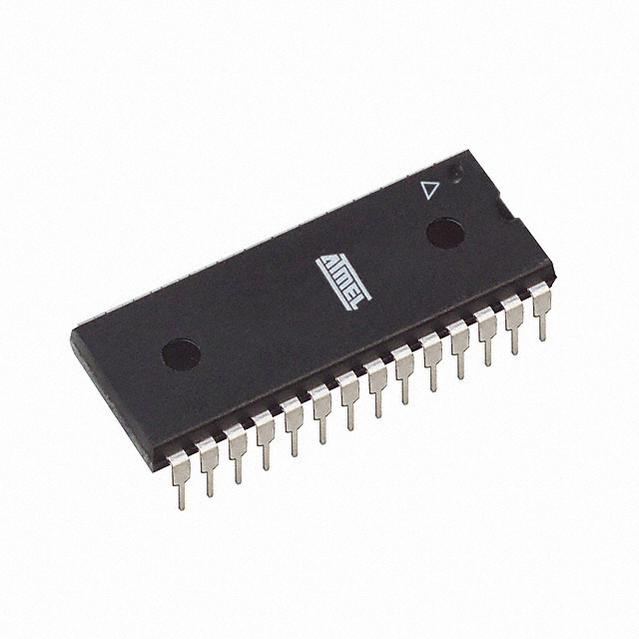

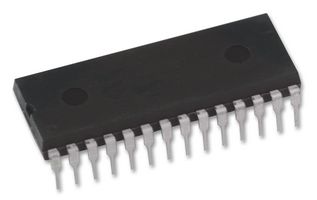

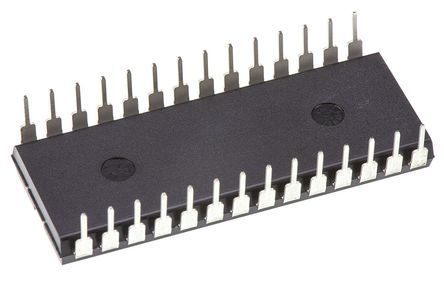

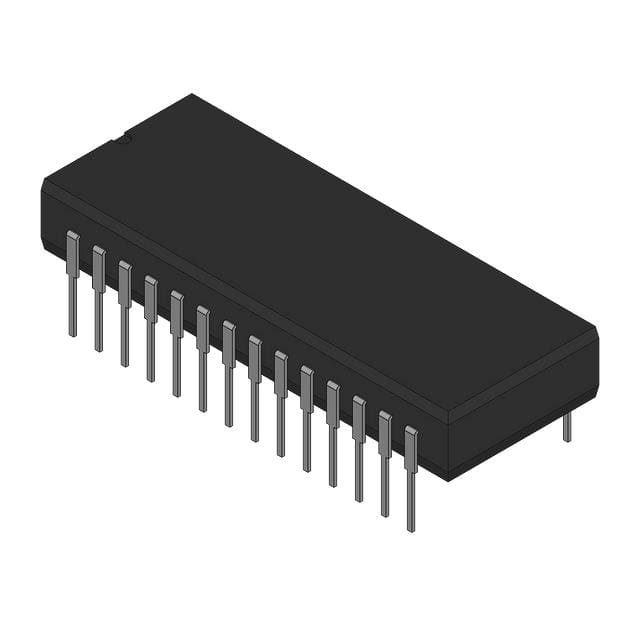

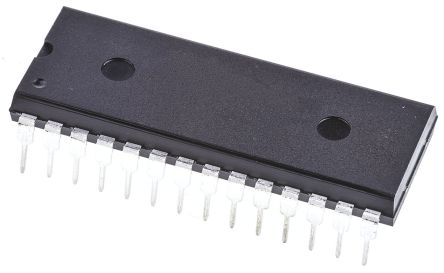

ATMEGA168P-20PU

ATMEL  ATMEGA168P-20PU  微控制器, 8位, 低功率高性能, ATmega, 20 MHz, 16 KB, 1 KB, 28 引脚, DIP

The is a high-performance picoPower 8-bit AVR RISC-based Microcontroller combines 16kB ISP flash memory with read-while-write capabilities, 512byte EEPROM, 1kB SRAM, 23 general purpose I/O lines, 32 general purpose working registers, three flexible timers/counters with compare modes, internal and external interrupts, serial programmable USART, a byte-oriented 2-wire serial interface, SPI serial port, 6-channel 10-bit A/D converter, programmable watchdog timer with internal oscillator and five software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the Atmel high density non-volatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

.

131 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 20MIPS throughput at 20MHz

.

On-chip 2-cycle multiplier

.

QTouch® library support

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change
