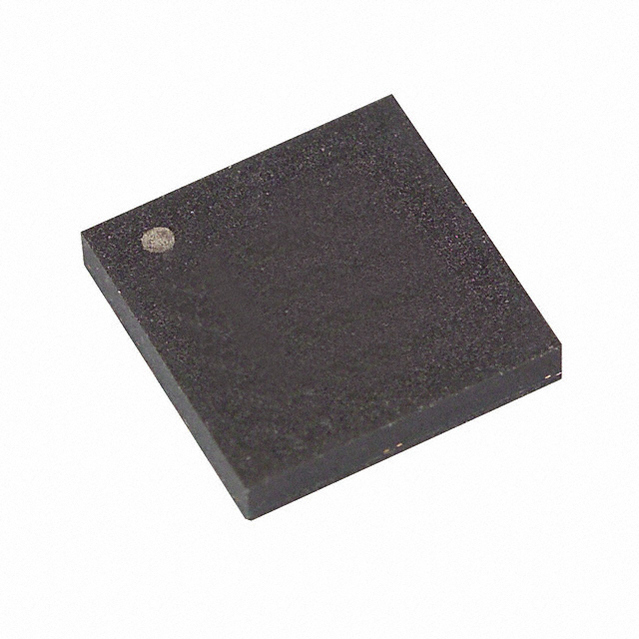

AT17LV256-10CU

256Kbit EEPROM, 8Pin LAP, FULLY GREEN IND GRADE - 256Kbit EEPROM,8Pin LAP,IND TEMP,GREEN

Description

The AT17LV series FPGA Configuration EEPROMs Configurators provide an easy to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The AT17LV series device is packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP, see Table 1-1. The AT17LV series Configurators uses a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function by programming four EEPROM bytes. These devices also support a write-protection mechanism within its programming mode.

The AT17LV series configurators can be programmed with industry-standard pro grammers, Atmel’s ATDH2200E Programming Kit or Atmel’s ATDH2225 ISP Cable.

Features

• EE Programmable 65,536 x 1-, 131,072 x 1-, 262,144 x 1-, 524,288 x 1-, 1,048,576 x 1-, 2,097,152 x 1-, and 4,194,304 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays FPGAs

• Supports both 3.3V and 5.0V Operating Voltage Applications

• In-System Programmable ISP via Two-Wire Bus

• Simple Interface to SRAM FPGAs

• Compatible with Atmel AT6000, AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs

• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays

• Very Low-power CMOS EEPROM Process

• Programmable Reset Polarity

• Available in 6 mm x 6 mm x 1 mm 8-lead LAP Pin-compatible with 8-lead SOIC/VOIC Packages, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP Packages

• Emulation of Atmel’s AT24CXXX Serial EEPROMs

• Low-power Standby Mode

• High-reliability

   – Endurance: 100,000 Write Cycles

   – Data Retention: 90 Years for Industrial Parts at 85° C and 190 Years for Commercial Parts at 70° C

• Green Pb/Halide-free/RoHS Compliant Package Options Available
