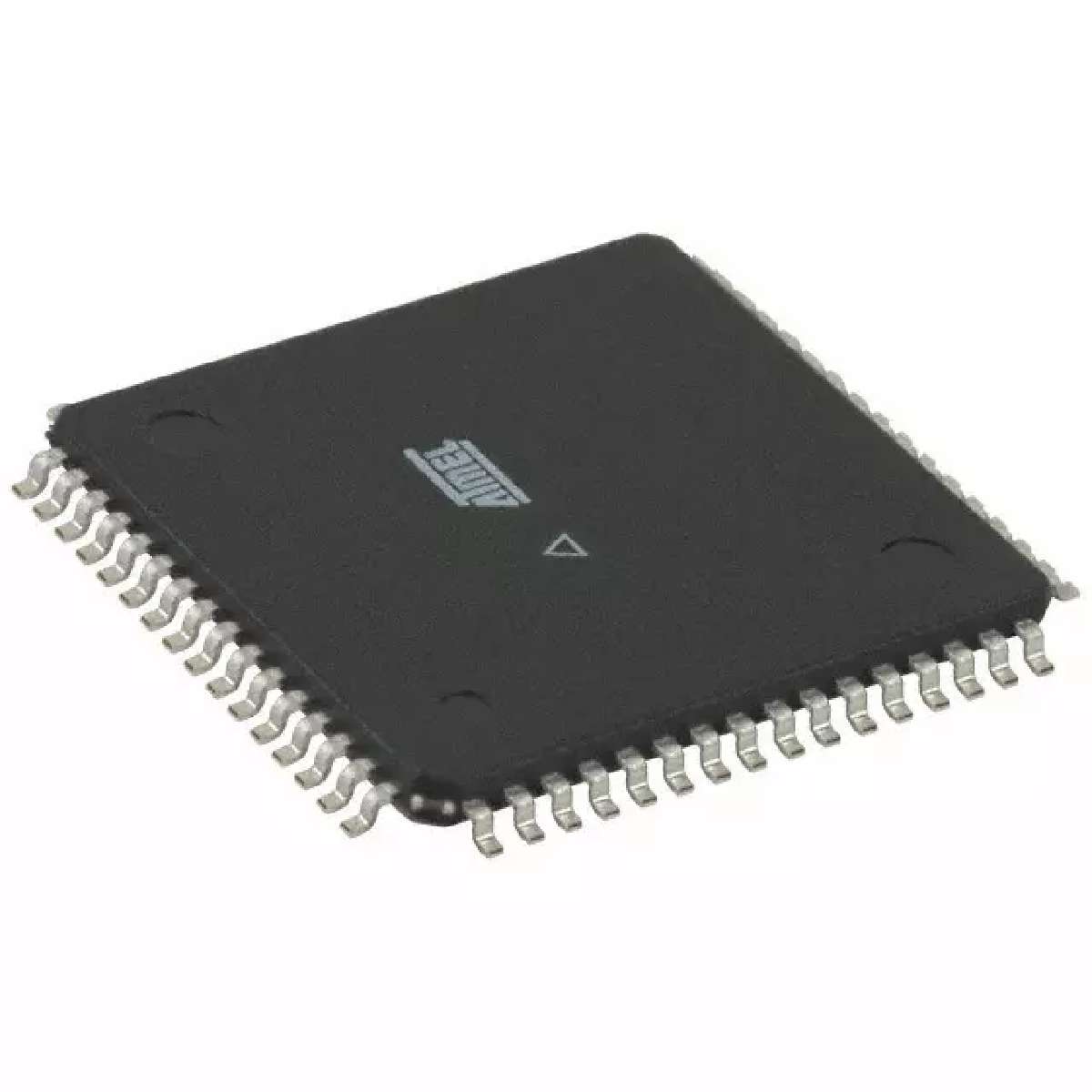

ATXMEGA192A3U-AU

ATMEL  ATXMEGA192A3U-AU  微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 192 KB, 16 KB, 64 引脚, TQFP

The is a 8-bit low power high performance AVR Microcontroller features 192kB self-programming flash program memory, 8kB boot code section, 16kB SRAM, 2048B EEPROM, 4-channel DMA controller, 8-channel event system and up to 32 MIPS throughput at 32MHz. The device can be used in a wide range of applications, such as building, climate control, hand-held battery applications, power tools. Four internal inputs include internal temperature sensor, DAC output, AVCC voltage divided by 10 and 1.1V bandgap voltage.

.

Two analogue to digital converters ADCs

.

12-bit Resolution

.

Up to two million samples per second - Four inputs can be sampled within 1.5µs

.

Differential and single-ended input - Up to 16 single-ended inputs

.

Built-in differential gain stage

.

Single, continuous and scan conversion options

.

Four conversion channels with individual input control and result registers

.

Internal and external reference options

.

Compare function for accurate monitoring of user defined thresholds

.

Optional event triggered conversion for accurate timing

.

Optional DMA transfer of conversion results

.

Optional interrupt/event on compare result
