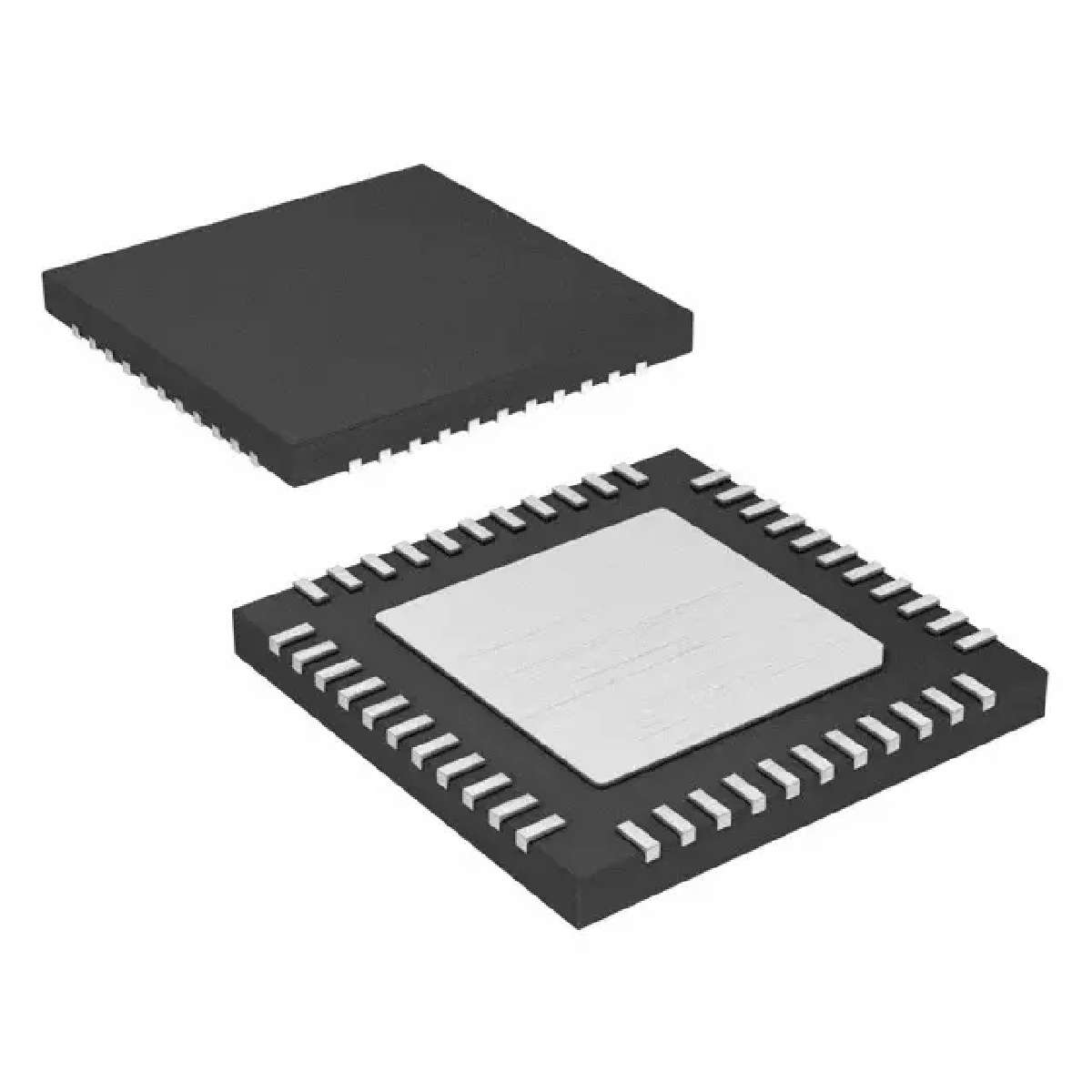

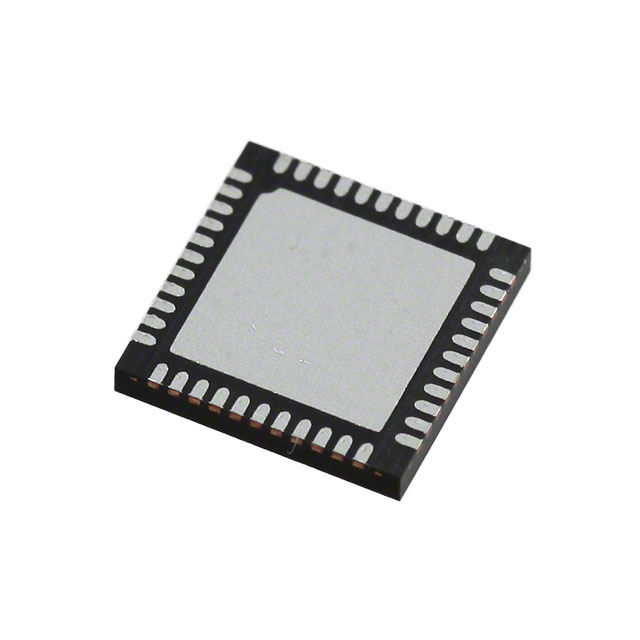

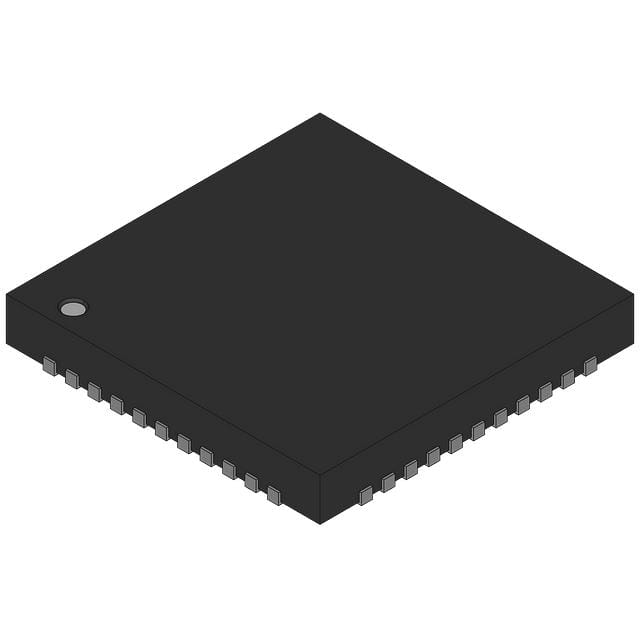

ATMEL ATXMEGA128A4U-MHR 微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 128 KB, 8 KB, 44 引脚, VQFN
The is a 8-bit low power high performance AVR Microcontroller features 128kB self-programming flash program memory, 4kB boot code section, 8kB SRAM, 2048B EEPROM, external bus interface, 4-channel DMA controller, 8-channel event system and up to 32 MIPS throughput at 32MHz. The device can be used in a wide range of applications, such as building, board, climate control, hand-held battery applications.
- .
- Non-volatile program and data memories
- .
- Peripheral features - Four-channel DMA controller, eight-channel event system
- .
- Power-on reset POR and programmable brown-out detection
- .
- Internal and external clock options with PLL and prescaler
- .
- Programmable multilevel interrupt controller
- .
- Five sleep modes
- .
- Programming and debug interfaces
- .
- PDI Program and Debug Interface
针脚数 44
时钟频率 32.0 MHz
RAM大小 8 KB
输入/输出数 34 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.6.3.6 V
电源电压Max 3.6 V
电源电压Min 1.6 V
安装方式 Surface Mount
引脚数 44
封装 VFQFN-44
封装 VFQFN-44
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 消费电子产品, Communications & Networking, Industrial, Medical, Consumer Electronics, Fibre Optics, HVAC, 自动化与过程控制, 工业, 通信与网络, Metering, 光纤, 计量, Automation & Process Control, 医用, 电机驱动与控制, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ATXMEGA128A4U-MHR ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATXMEGA128A4U-MH 爱特美尔 | 完全替代 | ATXMEGA128A4U-MHR和ATXMEGA128A4U-MH的区别 |
