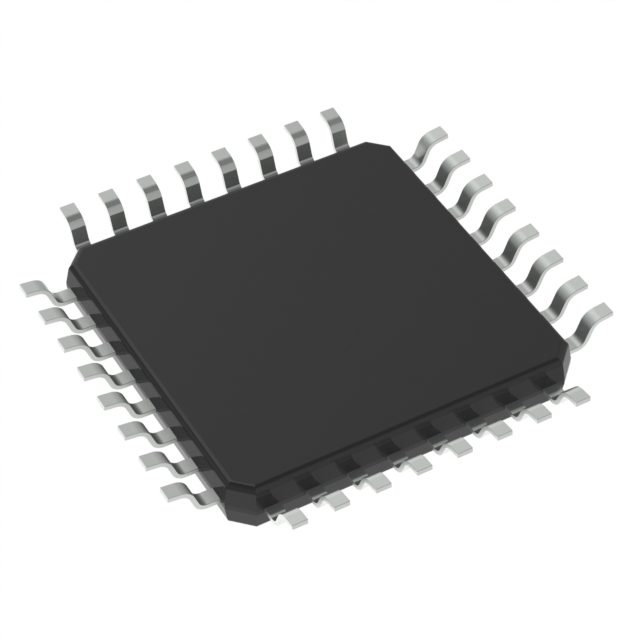

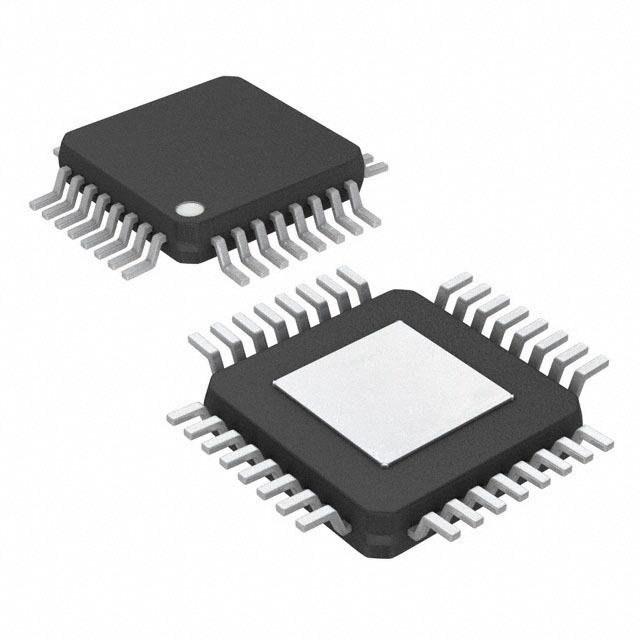

ATSAMD21E18A-AF

ATMEL  ATSAMD21E18A-AF  微控制器, 32位, SAM D系列, ARM 皮质-M0+, 48 MHz, 256 KB, 32 KB, 32 引脚, TQFP

The is a SMART SAMD21 series 32-bit Low-power Microcontroller based on the high-performance ARM Cortex-M0+ RISC processor. It operates at a maximum speed of 48MHz and features 256kB of flash memory and 32kB of SRAM. Peripherals include four serial communication modules SERCOM configurable as UART/USART, three 16-bit timers/counters, 32-bit real-time clock and calendar, 18 PWM channels, one 14-channel 12-bit ADC, one 10-bit DAC, full speed USB device and embedded host and support for up to 60 touch channels. The device operates from 1.62 to 3.63V.

.

ARM Cortex-M0+ CPU running at up to 48MHz

.

Single-cycle hardware multiplier

.

Micro trace buffer MTB

.

Power-on reset POR and brown-out detection BOD

.

External interrupt controller EIC

.

16 External interrupts

.

One non-maskable interrupt

.

Two-pin serial wire debug SWD programming, test and debugging interface

.

Idle and standby sleep modes

.

SleepWalking peripherals

.

12-channel Direct memory access controller DMAC

.

12-channel Event system

.

32-bit Real-time counter RTC with clock/calendar function

.

Watchdog timer WDT

.

CRC-32 generator

.

One full-speed 12Mbps Universal serial bus USB 2.0 interface

.

Peripheral touch controller PTC

.

Easy pin migration to SAMD21G and SAMD21J devices
