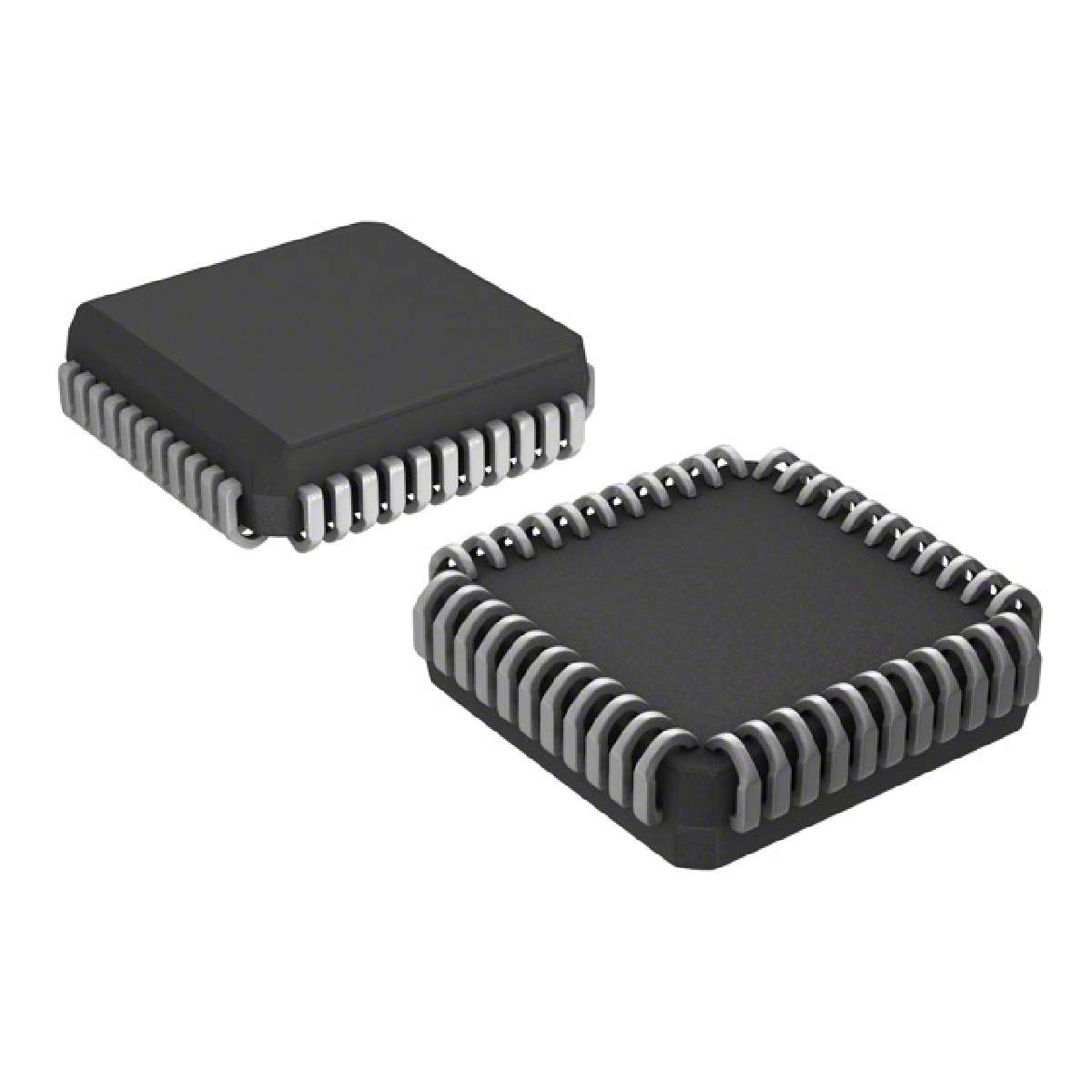

MCU 8Bit AT89 8051 CISC 8KB Flash 3.3V/5V 44Pin PLCC
Description
The AT89LS8252 is a low-power, wide-voltage range, high-performance CMOS 8-bit microcomputer with 8K bytes of Downloadable Flash programmable and erasable read only memory and 2K bytes of EEPROM. The device is manufactured using Atmel’s high density nonvolatile memory technology and is compatible with the indus try standard 80C51 instruction set and pinout.
Features
• Compatible with MCS® 51 Products
• 8K Bytes of In-System Reprogrammable Downloadable Flash Memory
\- SPI Serial Interface for Program Downloading
\- Endurance: 1,000 Write/Erase Cycles
• 2K Bytes EEPROM
\- Endurance: 100,000 Write/Erase Cycles
• 2.7V to 6V Operating Range
• Fully Static Operation: 0 Hz to 12 MHz
• Three-Level Program Memory Lock
• 256 x 8 bit Internal RAM
• 32 Programmable I/O Lines
• Three 16 bit Timer/Counters
• Nine Interrupt Sources
• Programmable UART Serial Channel
• SPI Serial Interface
• Low Power Idle and Power Down Modes
• Interrupt Recovery From Power Down
• Programmable Watchdog Timer
• Dual Data Pointer
• Power Off Flag
