ATSTK520

Development Boards & Kits - AVR AVR Starter Kit Ext 8K FLASH 3PSC

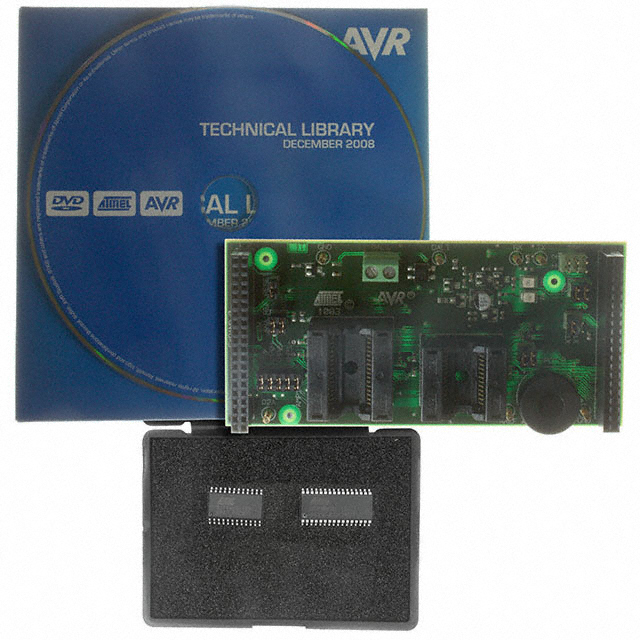

The board is a hardware expansion module for the ATSTK500 starter Kit. It adds support for the 24 pin and 32 pin AT90PWM AVR family. The ATSTK520 includes connectors, jumpers, potentiometer and hardware including a DALI Interface allowing full support for all features on the AT90PWM family.

.

Supports the AT90PWM2 and AT90PWM3

.

DALI hardware interface

.

Supported by AVR studio-4

.

ZIF socket for SO24 and SO32 packages

.

High voltage parallel programming

.

Serial programming

.

DALI peripherals can be disconnected from the device

.

6 pin connector for on chip debugging using JTAG MKII emulator

.

Potentiometer for demo application

.

Quick reference to all switches and jumpers in the silk screen of the PCB
