ADV7611WBSWZ-RL

低功耗165 MHz的HDMI接收器 Low Power 165 MHz HDMI Receiver

GENERAL DESCRIPTION

The ADV7611 is offered in automotive, professional no HDCP, and industrial versions. The operating temperature range is −40°C to +85°C.

The UG-180 contains critical information that must be used in conjunction with the ADV7611.

The ADV7611 is a high quality, single input HDMI®-capable receiver. It incorporates an HDMI-capable receiver that supports all mandatory 3D TV defined in HDMI 1.4a. The ADV7611 supports formats up to UXGA 60 Hz at 8 bit.

FEATURES

High-Definition Multimedia Interface HDMI® 1.4a features supported

   All mandatory and additional 3D video formats supported

   Extended colorimetry, including sYCC601, Adobe RGB,

   Adobe YCC 601, xvYCC extended gamut color

   CEC 1.4-compatible

HDMI receiver

  165 MHz maximum TMDS clock frequency

  24-bit output pixel bus

  High-bandwidth Digital Content Protection HDCP 1.4 support with internal HDCP keys

  HDCP repeater support Up to 127 KSVs supported

  Integrated CEC controller

  Programmable HDMI equalizer

  5 V detect and Hot Plug assert for HDMI port

Audio support

   SPDIF IEC 60958-compatible digital audio

   HDMI audio extraction support

   Advanced audio mute feature

General

  Interrupt controller with two interrupt outputs

  Standard identification STDI circuit

  Highly flexible 24-bit pixel output interface

  Internal EDID RAM

  Any-to-any 3 × 3 color space conversion CSC matrix

  2-layer PCB design supported

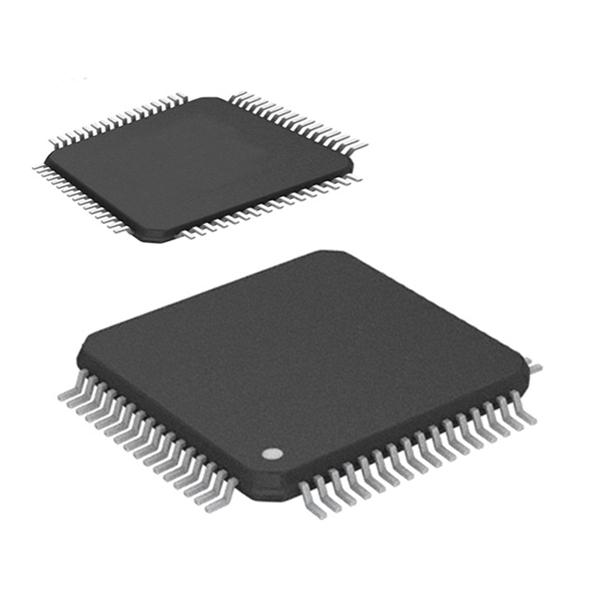

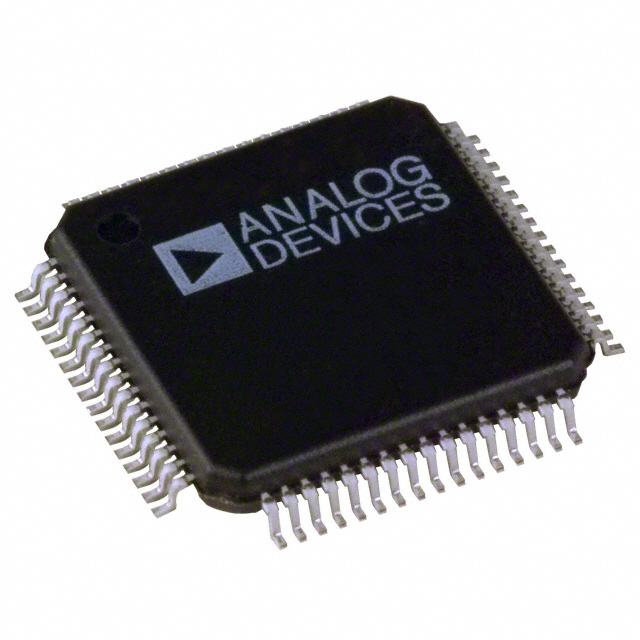

  64-lead LQFP_EP, 10 mm × 10 mm package

Qualified for automotive applications

APPLICATIONS

Projectors

Automotive

Video conferencing

HDTVs

AVR, HTiB

Soundbars

Video switches
