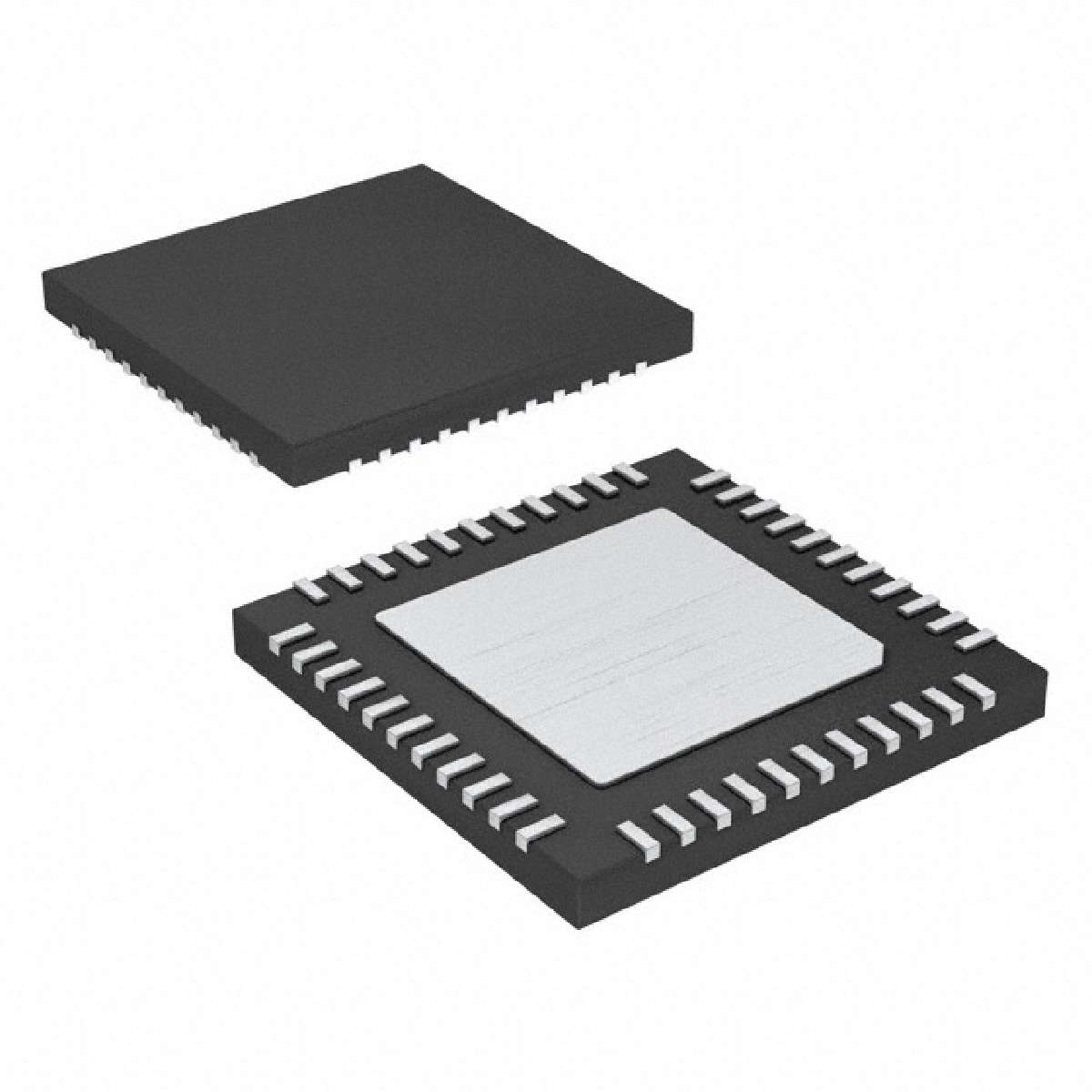

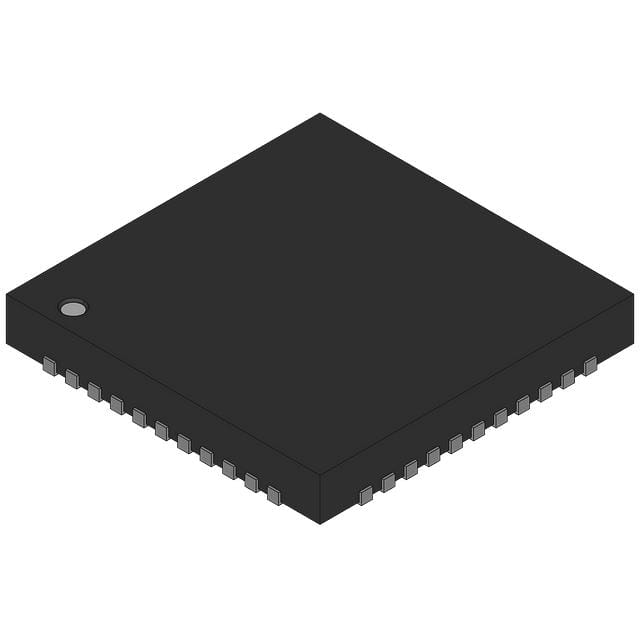

ATMEL ATMEGA644-20MU 微控制器, 8位, 低功率高性能, ATmega, 20 MHz, 64 KB, 4 KB, 44 引脚, VQFN
The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 64kB ISP flash memory with read-while-write capabilities, 2kB EEPROM, 4kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter, three flexible timers/counters with compare modes and PWM, 2 USARTs, byte oriented 2-wire serial interface, 8-channel/10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, JTAG IEEE 1149.1 compliant test interface for on-chip debugging and six software selectable power saving modes. The device operates between 2.7 to 5.5V. By executing powerful instructions in a single clock-cycle, the device achieves throughputs approaching 1MIPS per MHz, balancing power consumption and processing speed.
电源电压DC 5.00 V, 5.50 V max
针脚数 44
时钟频率 20.0 MHz, 20.0 MHz max
RAM大小 4 KB
位数 8
FLASH内存容量 64 KB
I/O引脚数 32
存取时间 20.0 µs
内核架构 AVR
模数转换数ADC 1
输入/输出数 32 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8.5.5 V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 44
封装 VQFN-44
长度 7 mm
宽度 7 mm
高度 0.88 mm
封装 VQFN-44
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tray
制造应用 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATMEGA644-20MU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATMEGA644-20MUR 爱特美尔 | 完全替代 | ATMEGA644-20MU和ATMEGA644-20MUR的区别 |
ATMEGA644-20PU 爱特美尔 | 功能相似 | ATMEGA644-20MU和ATMEGA644-20PU的区别 |
ATMEGA644PV-10PU 爱特美尔 | 功能相似 | ATMEGA644-20MU和ATMEGA644PV-10PU的区别 |
