ATMEGA1284P-MU

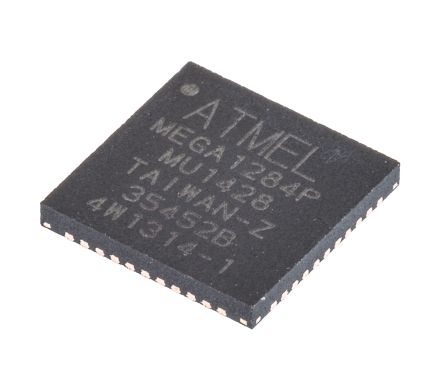

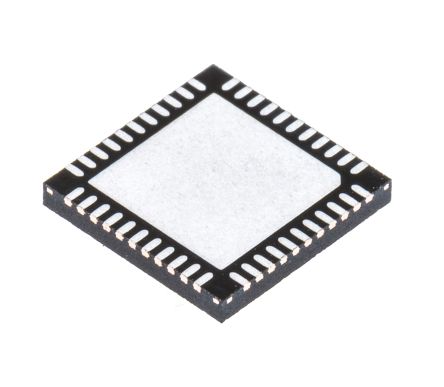

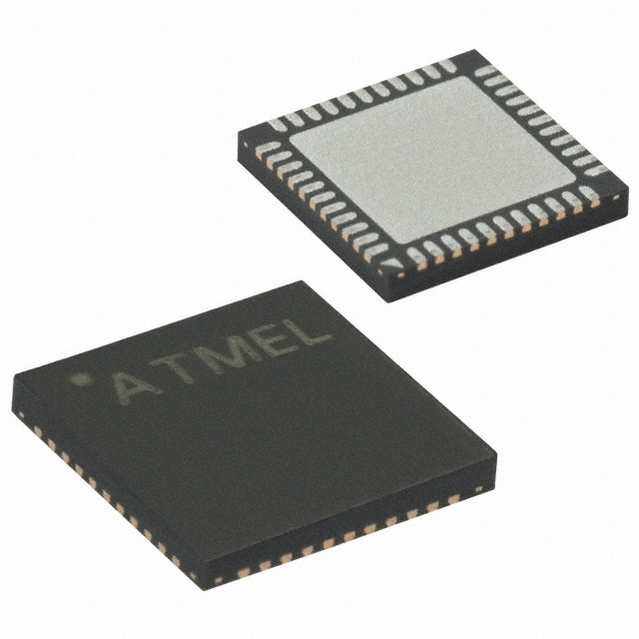

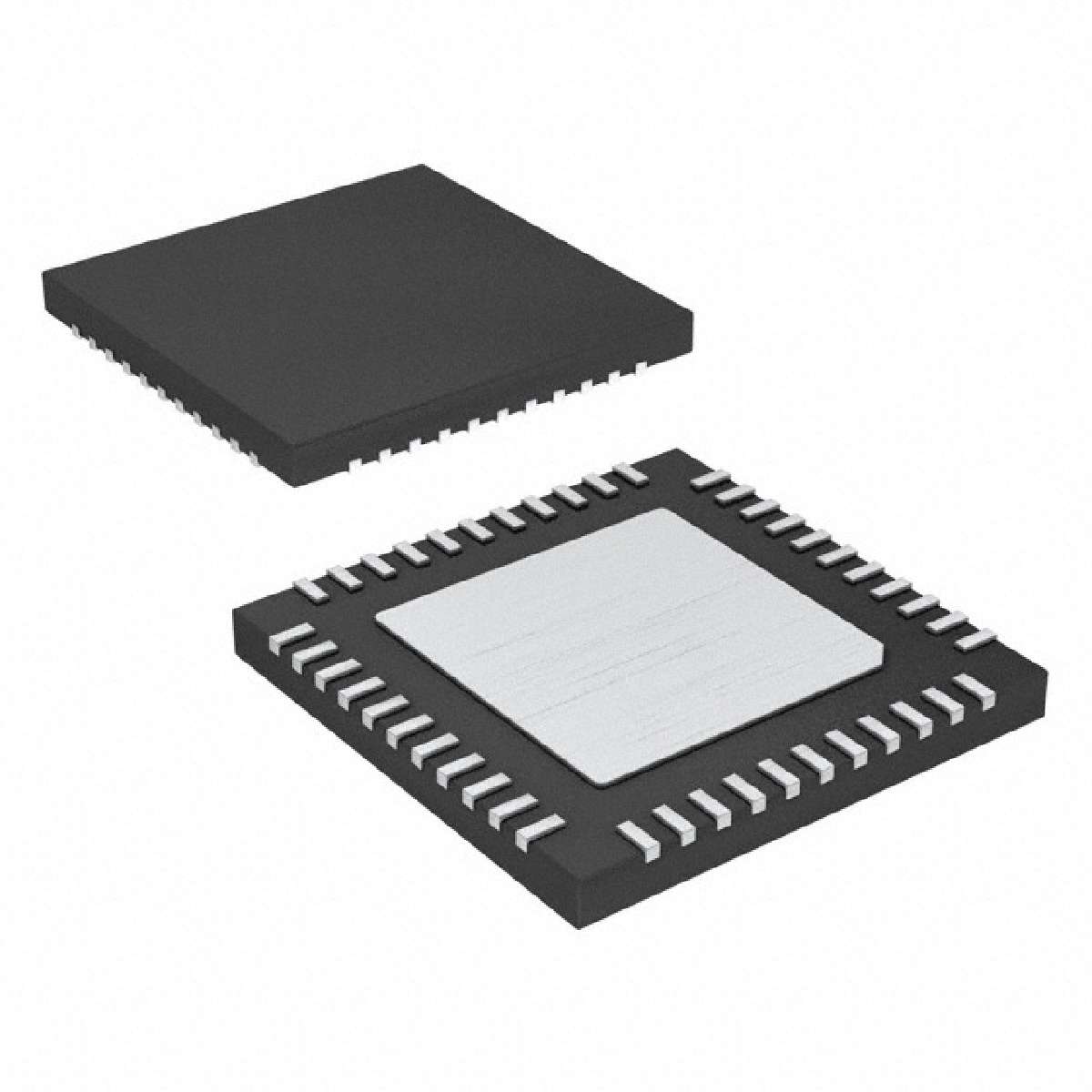

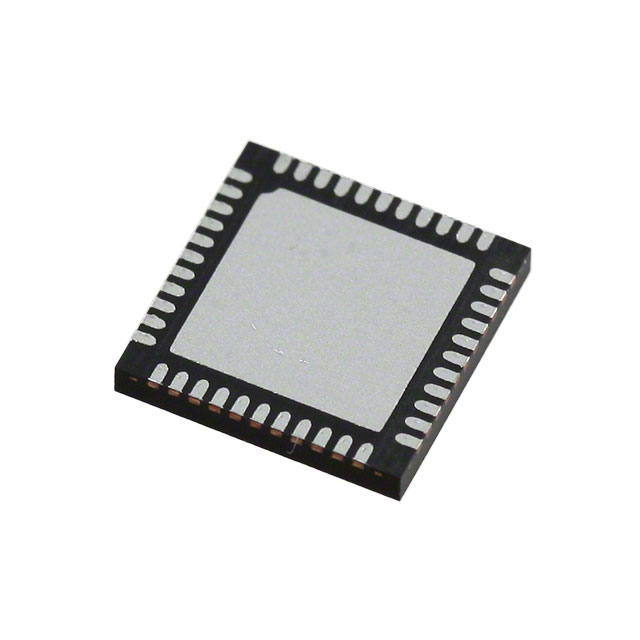

ATMEL  ATMEGA1284P-MU  微控制器, 8位, 低功率高性能, ATmega, 20 MHz, 128 KB, 16 KB, 44 引脚, QFN

The is a 8-bit high-performance AVR RISC-based Microcontroller combines 128kB ISP flash memory with read-while-write capabilities, 4kB EEPROM, 16kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timer/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG IEEE 1149.1 compliant test interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.

.

Advanced RISC architecture

.

High endurance, non-volatile memory segments

.

Atmel QTouch® library support

.

JTAG IEEE 1149.1 compliant interface

.

Two 8-bit timer/counters with separate prescalers and compare modes

.

One/two 16-bit timer/counter with separate prescaler, compare mode and capture mode

.

Power-on reset POR and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - Idle, ADC noise reduction, power-save, power-down, standby and extended standby
