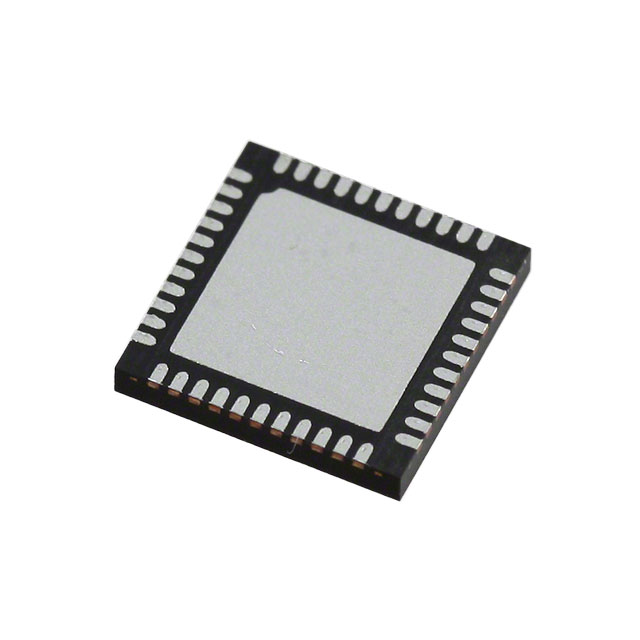

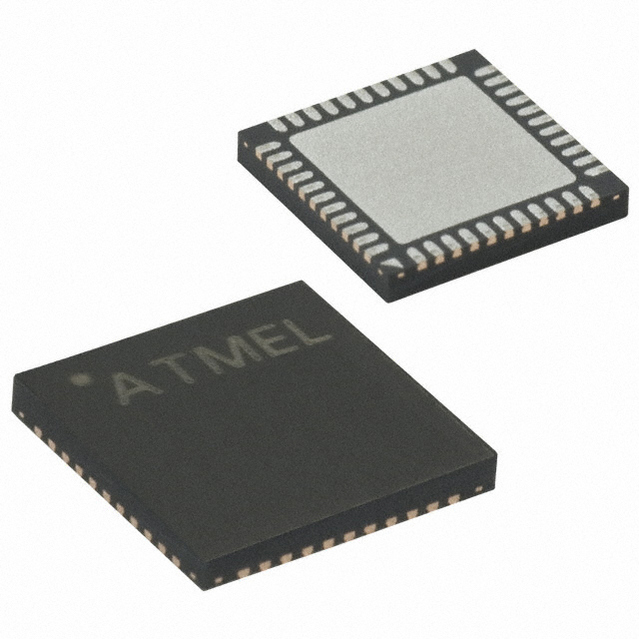

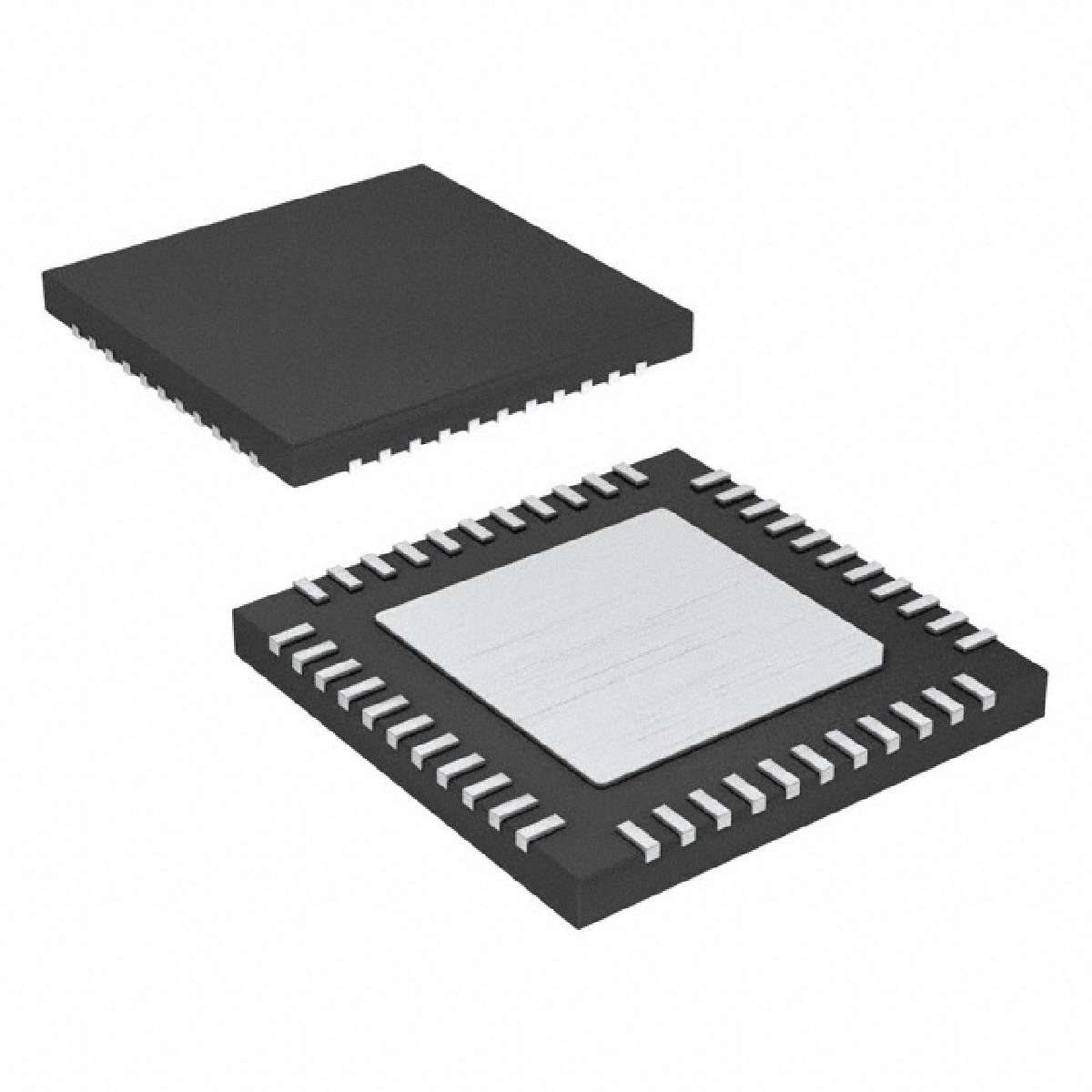

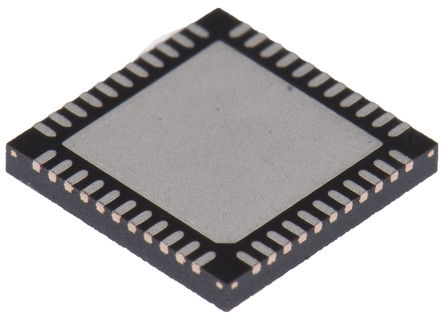

ATMEGA644P-20MU

ATMEL  ATMEGA644P-20MU  微控制器, 8位, 低功率高性能, ATmega, 20 MHz, 64 KB, 4 KB, 44 引脚, QFN

The is a low-power CMOS 8-bit Microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega644P achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The ATmega644P provides 64kB of in-system programmable flash with Read-While-Write capabilities, 2kB EEPROM, 4kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, real time counter RTC, three flexible timers/counters with compare modes and PWM, 2 USARTs, a byte oriented 2-wire Serial Interface, a 8-channel, 10-bit ADC with optional differential input stage with programmable gain, programmable Watchdog Timer with Internal Oscillator, an SPI serial port, IEEE std. 1149.1 compliant JTAG test interface.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

.

131 Powerful instructions-most single clock cycle execution

.

32 x 8 General purpose working registers

.

Fully static operation

.

Up to 20MIPS throughput at 20MHz

.

On-chip 2-cycle multiplier

.

JTAG IEEE std. 1149.1 compliant interface

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change

.

Two 8-bit timers/counters with separate prescalers and compare modes

.

One 16-bit timer/counter with separate prescaler, compare mode and capture mode

.

Real-time counter with separate oscillator

.

Six PWM channels

.

Two programmable serial USART

.

Master/Slave SPI serial interface
