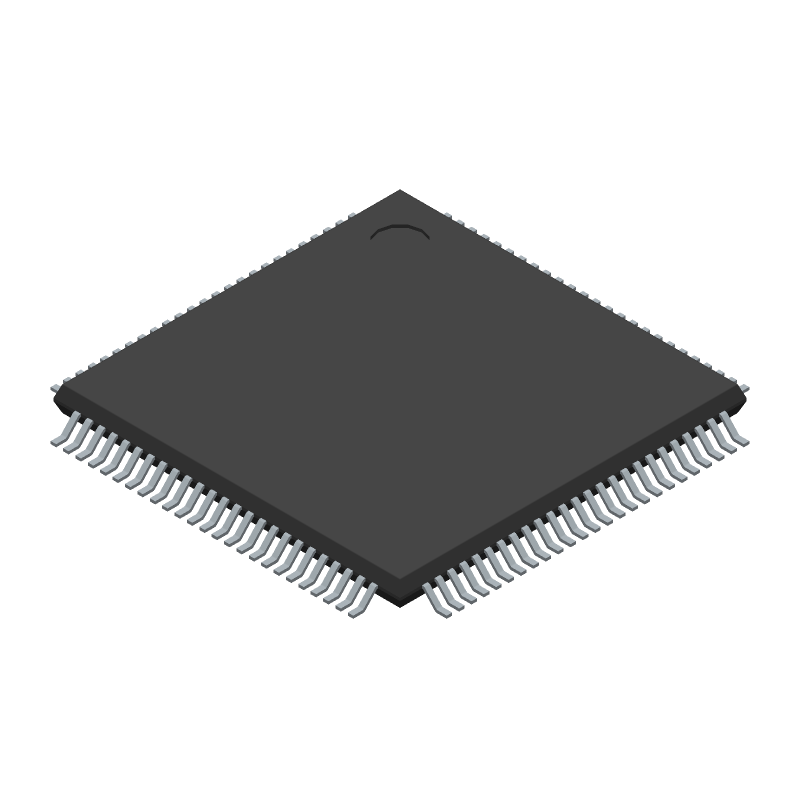

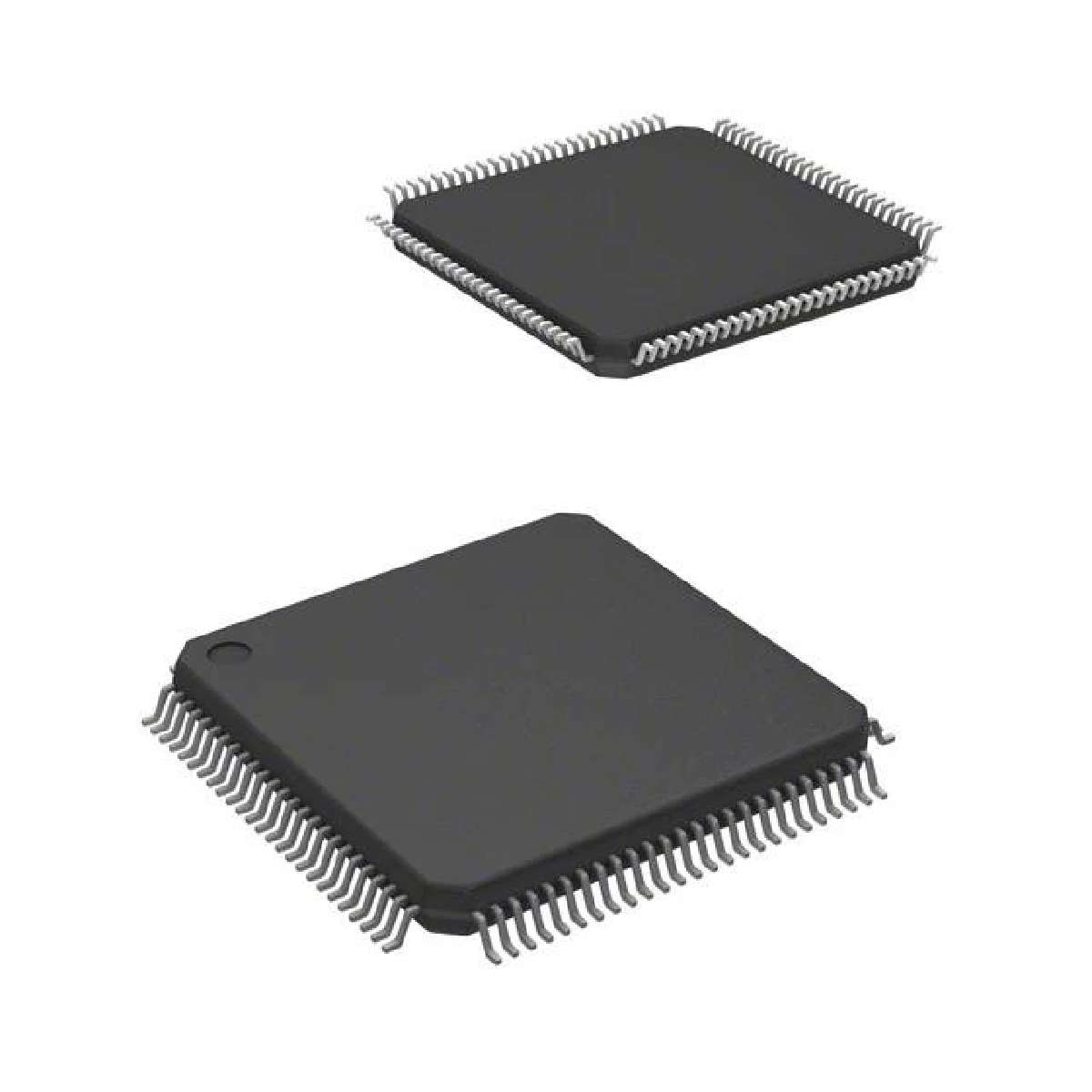

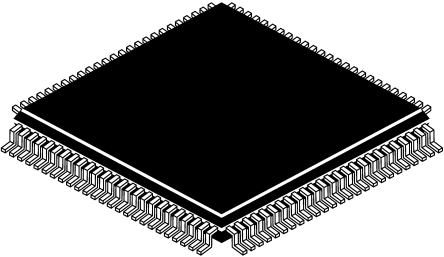

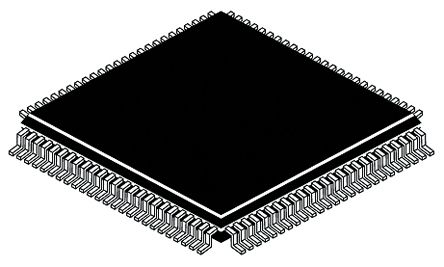

ATSAM4S8CA-AU

SMART SAM4S ARM® Cortex-M4 微控制器基于强大的 ARM® Cortex®-M4 内 核，Atmel® SMART SAM4S 系列提供可调节性能、存储器密度和电源效率。 它集成了硬件代码保护。### ARM 微控制器，Atmel

The is a SMART SAM4S series 32-bit Flash Microcontroller based on the high-performance ARM Cortex-M4 RISC processor. It operates at a maximum speed of 120MHz and features 512kB of flash memory and 128kB of SRAM. Peripheral set includes a full-speed USB device port with embedded transceiver, a high-speed MCI for SDIO/SD/MMC, an External Bus Interface featuring a Static Memory Controller to connect to SRAM, PSRAM, NOR flash, LCD Module and NAND flash, 2 USARTs, 2 UARTs, 2 TWIs, 3 SPIs, an I²S, as well as a PWM timer, two 3- channel general-purpose 16-bit timers with stepper motor and quadrature decoder logic support, an RTC, a 12-bit ADC, a 12-bit DAC and an analog comparator. The device operate from 1.62V to 3.6V. It is ready for capacitive touch, offering native support for the Atmel QTouch® library for easy implementation of buttons, wheels and sliders. The real-time event management allows peripherals to receive, react to and send events in active and sleep modes.

.

ARM Cortex-M4 with 2kB of cache running at up to 120MHz

.

Memory protection unit MPU

.

DSP Instruction set

.

Thumb®-2 instruction set

.

Pin-to-pin compatible with Atmel SAM7S, SAM3N and SAM3S MCUs

.

Embedded voltage regulator for single supply operation

.

Power-on-reset POR, brown-out detector BOD and watchdog for safe operation

.

3 to 20MHz Resonator oscillators

.

RTC with Gregorian and Persian Calendar mode, waveform generation in low-power modes

.

RTC counter calibration circuitry compensates for 32.768kHz crystal frequency inaccuracy

.

High-precision factory-trimmed internal RC oscillator with 4MHz default frequency

.

Slow clock internal RC oscillator as permanent low-power mode device clock

.

Two PLLs up to 240MHz for device clock and for USB

.

Temperature sensor

.

Low-power tamper detection on two inputs

.

Sleep, wait and backup modes

.

32-bit Real-time timer and RTC with calendar, alarm and 32kHz trimming features

.

256-bit General purpose backup registers GPBR

.

One 2-channel 12-bit 1MSPS DAC

.

One analog comparator with flexible input selection, selectable input hysteresis
