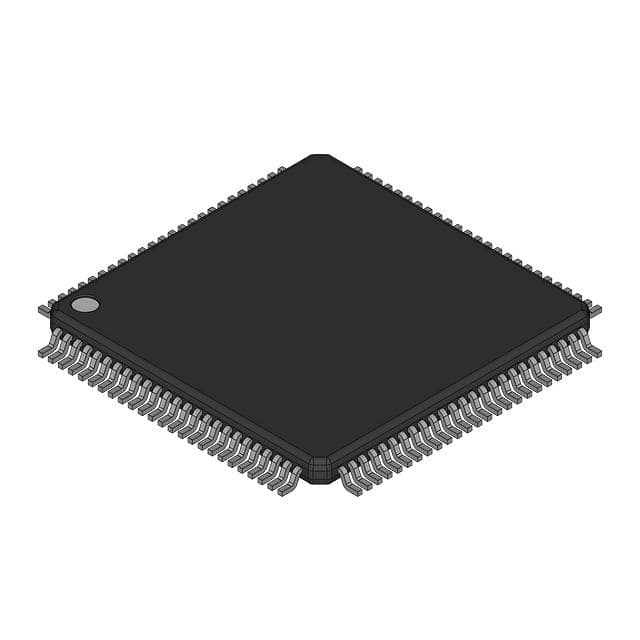

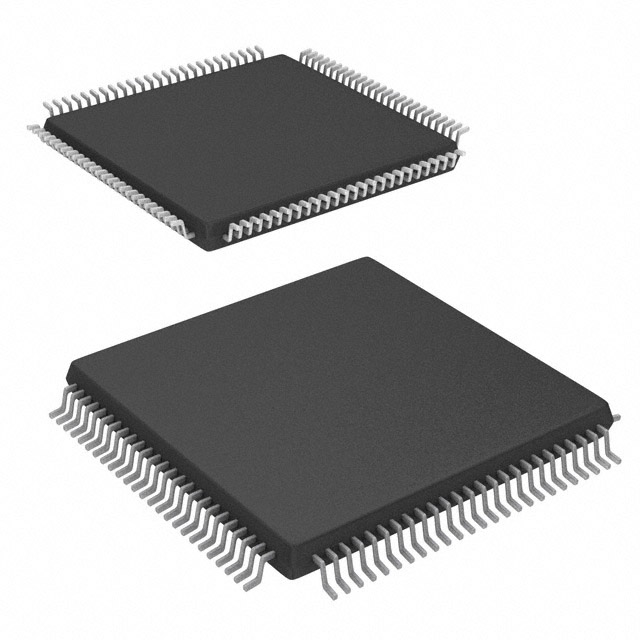

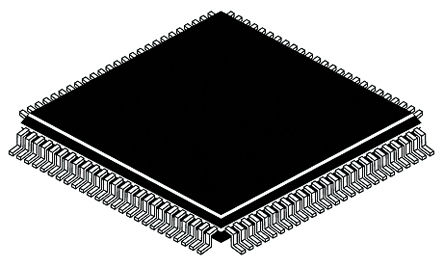

ATMEGA1280V-8AU

ATMEL  ATMEGA1280V-8AU  微控制器, 8位, 低功率高性能, ATmega, 8 MHz, 128 KB, 8 KB, 100 引脚, TQFP

The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 128kB ISP flash memory, 8kB SRAM, 4kB EEPROM, 86 general purpose I/O lines, 32 general purpose working registers, real time counter, six flexible timers/counters with compare modes, PWM, 4 USARTs, byte oriented 2-wire serial interface, 16-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device achieves a throughput of 16MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves a throughput approaching 1MIPS per MHz, balancing power consumption and processing speed. The device is manufactured using the Atmel high-density nonvolatile memory technology. The on-chip ISP flash allows the program memory to be reprogrammed in-system through an SPI serial interface, by a conventional non-volatile memory programmer, or by an on-chip boot program running on the AVR core.

.

Advanced RISC architecture

.

Power-on reset and programmable brown-out detection

.

Internal calibrated RC oscillator

.

External and internal interrupt sources

.

Six sleep modes - idle, ADC noise reduction, power-save, power-down, standby and extended standby

.

JTAG IEEE® std. 1149.1 compliant Interface

.

QTouch® library support

.

135 Powerful instructions most single clock cycle execution

.

32 x 8 General purpose working registers

.

Up to 16MIPS throughput at 16MHz

.

On-chip 2-cycle multiplier

.

Real-time counter with separate oscillator

.

Output compare modulator

.

Master/Slave SPI serial interface

.

Byte oriented 2-wire serial interface

.

Programmable watchdog timer with separate on-chip oscillator

.

On-chip analog comparator

.

Interrupt and wake-up on pin change
