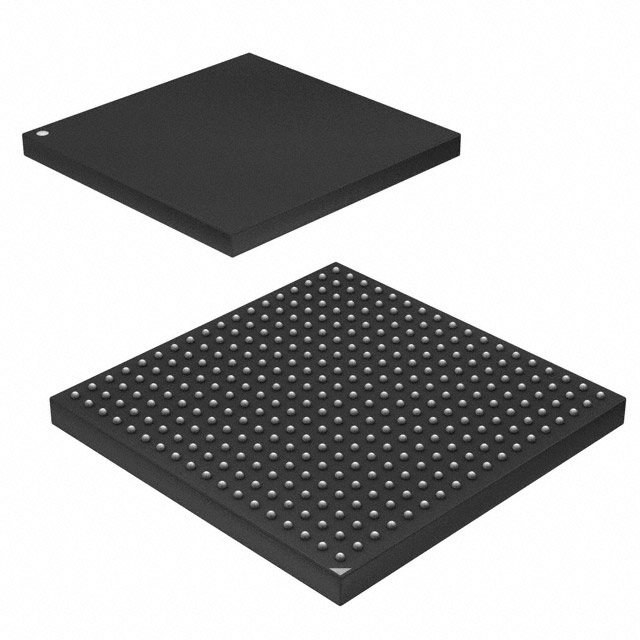

ATMEL AT91SAM9G45C-CU 微控制器, 32位, ARM Thumb, ARM9, 400 MHz, 64 KB, 64 KB, 324 引脚, TFBGA
The is a SMART 32-bit Embedded Microprocessor Unit based on ARM926EJ-S-based processor, features the frequently demanded combination of user interface functionality and high data rate connectivity, including LCD controller, resistive touchscreen, camera interface, audio, Ethernet 10/100 and high speed USB and SDIO. With the processor running at 400MHz and multiple 100+ Mbps data rate peripherals, the SAM9G45 provides adequate performance and bandwidth to the network or local storage media. The SAM9G45 eMPU supports DDR2 and NAND flash memory interfaces for program and data storage. An internal 133MHz multi-layer bus architecture associated with 37 DMA channels, a dual external bus interface and distributed memory including a 64kB SRAM which can be configured as a tightly coupled memory TCM sustains the high bandwidth required by the processor and the high speed peripherals. A true random number generator is embedded for key generation and exchange protocols.
频率 400 MHz
针脚数 324
时钟频率 400 MHz
RAM大小 64 KB
位数 32
FLASH内存容量 0 KB
模数转换数ADC 1
输入/输出数 160 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 1.1 V
电源电压Min 0.9 V
安装方式 Surface Mount
引脚数 324
封装 TFBGA-324
长度 15.05 mm
宽度 15.05 mm
高度 0.8 mm
封装 TFBGA-324
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Each
制造应用 Consumer Electronics, Automation & Process Control, 自动化与过程控制, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 无铅
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AT91SAM9G45C-CU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
AT91SAM9G45B-CU 爱特美尔 | 完全替代 | AT91SAM9G45C-CU和AT91SAM9G45B-CU的区别 |
AT91SAM9G45C-CU-999 爱特美尔 | 类似代替 | AT91SAM9G45C-CU和AT91SAM9G45C-CU-999的区别 |
AT91SAM9G45-CU 爱特美尔 | 类似代替 | AT91SAM9G45C-CU和AT91SAM9G45-CU的区别 |
