AT91SAM9X35-CU

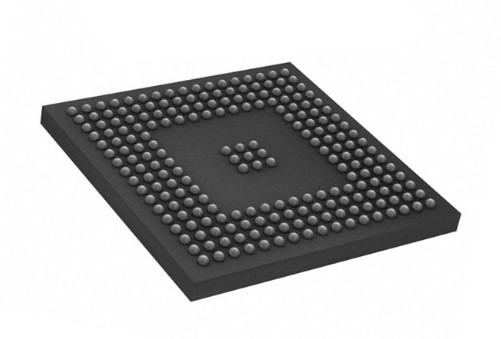

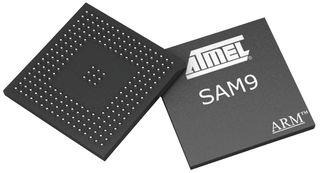

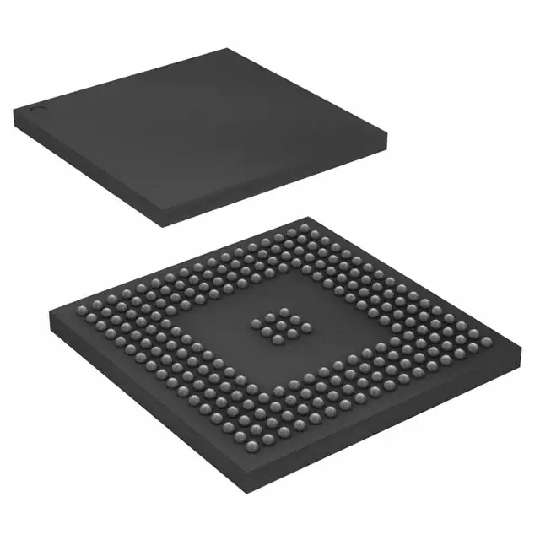

ATMEL  AT91SAM9X35-CU  微控制器, 32位, ARM9, 400 MHz, 32 KB, 32 KB, 217 引脚, BGA

The is a SMART 400MHz 32-bit Embedded Microprocessor Unit based on ARM926EJ-S processor. This MPU features an extensive peripheral set and high bandwidth architecture for industrial applications that require refined user interfaces and high-speed communication. The SAM9X35 features a graphics LCD controller with 4-layer overlay and 2D acceleration and a 10-bit ADC that supports 4-wire or 5-wire resistive touchscreen panels. Networking/connectivity peripherals include two 2.0A/B compatible controller area network CAN interfaces and an IEEE Std 802.3-compatible 10/100 Mbps Ethernet MAC. Multiple communication interfaces include a soft modem supporting exclusively the conexant SmartDAA line driver, HS USB Device and Host, FS USB Host, two HS SDCard/SDIO/MMC interfaces, USARTs, SPIs, I²S, TWIs and 10-bit ADC.

.

ARM926EJ-S ARM Thumb processor running at up to 400MHz at 1.0V ±10%

.

16kB Data cache, 16kB Instruction cache, memory management unit

.

Power-on reset cells, reset controller, shutdown controller, periodic interval timer, WDT and RTC

.

Boot mode select option, remap command

.

Internal low power 32kHz RC and fast 12MHz RC oscillators

.

Selectable 32768Hz low-power oscillator and 12MHz oscillator

.

One PLL for the system and one PLL at 480MHz optimized for USB high speed

.

Twelve 32-bit-layer AHB bus matrix for large bandwidth transfers

.

Dual peripheral bridge with dedicated programmable clock for best performances

.

Two dual port 8-channel DMA controllers DMAC

.

Advanced interrupt controller AIC and debug unit DBGU

.

Two programmable external clock signals

.

Shutdown controller with four 32-bit battery backup registers

.

Clock generator and power management controller

.

Very slow clock operating mode, software programmable power optimization capabilities

.

Four 32-bit parallel I/O controllers

.

105 Programmable I/O lines multiplexed with up to three peripheral I/Os

.

Input change interrupt capability on each I/O line, optional Schmitt trigger input

.

Individually programmable open-drain, pull-up and pull-down resistor, synchronous output

.

LCD controller LCDC with overlay, alpha-blending, rotation, scaling and colour conversion
