ATSAM4S8CA-CU

SMART SAM4S ARM® Cortex-M4 微控制器基于强大的 ARM® Cortex®-M4 内 核，Atmel® SMART SAM4S 系列提供可调节性能、存储器密度和电源效率。 它集成了硬件代码保护。### ARM 微控制器，Atmel

Description

The Atmel SAM4S series is a member of a family of Flash microcontrollers based on the high performance 32-bit ARM Cortex-M4 RISC processor. It operates at a maximum speed of 120 MHz and features up to 2048 Kbytes of Flash, with optional dual bank implementation and cache memory, and up to 160 Kbytes of SRAM. The peripheral set includes a Full Speed USB Device port with embedded transceiver, a High Speed MCI for SDIO/SD/MMC, an External Bus Interface featuring a Static Memory Controller providing connection to SRAM, PSRAM, NOR Flash, LCD Module and NAND Flash, 2x USARTs, 2x UARTs, 2x TWIs, 3x SPI, an I2S, as well as 1 PWM timer, 2x three channel general-purpose 16-bit timers with stepper motor and quadrature decoder logic support, an RTC, a 12-bit ADC, a 12-bit DAC and an analog comparator.

Features

• Core

– ARM® Cortex®-M4 with a 2Kbytes cache running at up to 120 MHz

– Memory Protection Unit MPU

– DSP Instruction Set

– Thumb®-2 instruction set

• Pin-to-pin compatible with SAM3N, SAM3S products 64- and 100- pin versions and SAM7S legacy products 64-pin version

• Memories

– Up to 2048 Kbytes embedded Flash with optional dual bank and cache memory

– Up to 160 Kbytes embedded SRAM

– 16 Kbytes ROM with embedded boot loader routines UART, USB and IAP routines

– 8-bit Static Memory Controller SMC: SRAM, PSRAM, NOR and NAND Flash support

• System

– Embedded voltage regulator for single supply operation

– Power-on-Reset POR, Brown-out Detector BOD and Watchdog for safe operation

– Quartz or ceramic resonator oscillators: 3 to 20 MHz main power with Failure Detection and optional low-power 32.768 kHz for RTC or device clock

– RTC with Gregorian and Persian Calendar mode, waveform generation in low power modes

– RTC clock calibration circuitry for 32.768 kHz crystal frequency compensation

– High precision 8/12 MHz factory trimmed internal RC oscillator with 4 MHz default frequency for device startup. In-application trimming access for frequency adjustment

– Slow Clock Internal RC oscillator as permanent low-power mode device clock

– Two PLLs up to 240 MHz for device clock and for USB

– Temperature Sensor

– Up to 22 Peripheral DMA PDC Channels

• Low Power Modes

– Sleep and Backup Modes, down to 1 µA in Backup Mode

– Ultra low-power RTC

• Peripherals

– USB 2.0 Device: 12 Mbps, 2668 byte FIFO, up to 8 bidirectional Endpoints. On-Chip

Transceiver

– Up to 2 USARTs with ISO7816, IrDA®, RS-485, SPI, Manchester and Modem Mode

– Two 2-wire UARTs

– Up to 2 Two Wire Interface I2C compatible, 1 SPI, 1 Serial Synchronous Controller

I2S, 1 High Speed Multimedia Card Interface SDIO/SD Card/MMC

– 2 Three-Channel 16-bit Timer/Counter with capture, waveform, compare and PWM

mode. Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper

Motor

– 4-channel 16-bit PWM with Complementary Output, Fault Input, 12-bit Dead Time

Generator Counter for Motor Control

– 32-bit Real-time Timer and RTC with calendar and alarm features

– Up to 16-channel, 1Msps ADC with differential input mode and programmable gain

stage and auto calibration

– One 2-channel 12-bit 1Msps DAC

– One Analog Comparator with flexible input selection, Selectable input hysteresis

– 32-bit Cyclic Redundancy Check Calculation Unit CRCCU

– Write Protected Registers

• I/O

– Up to 79 I/O lines with external interrupt capability edge or level sensitivity,

debouncing, glitch filtering and on-die Series Resistor Termination

– Three 32-bit Parallel Input/Output Controllers, Peripheral DMA assisted Parallel

Capture Mode

• Packages

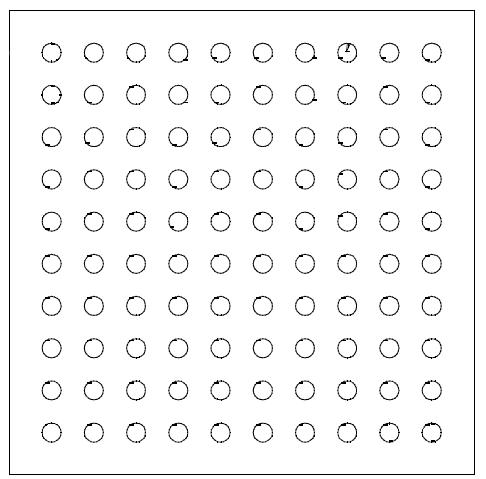

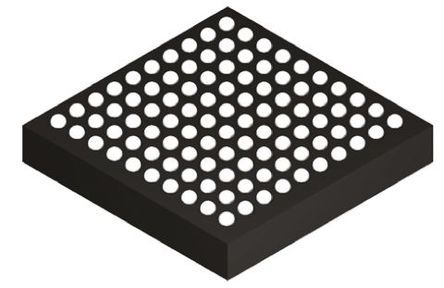

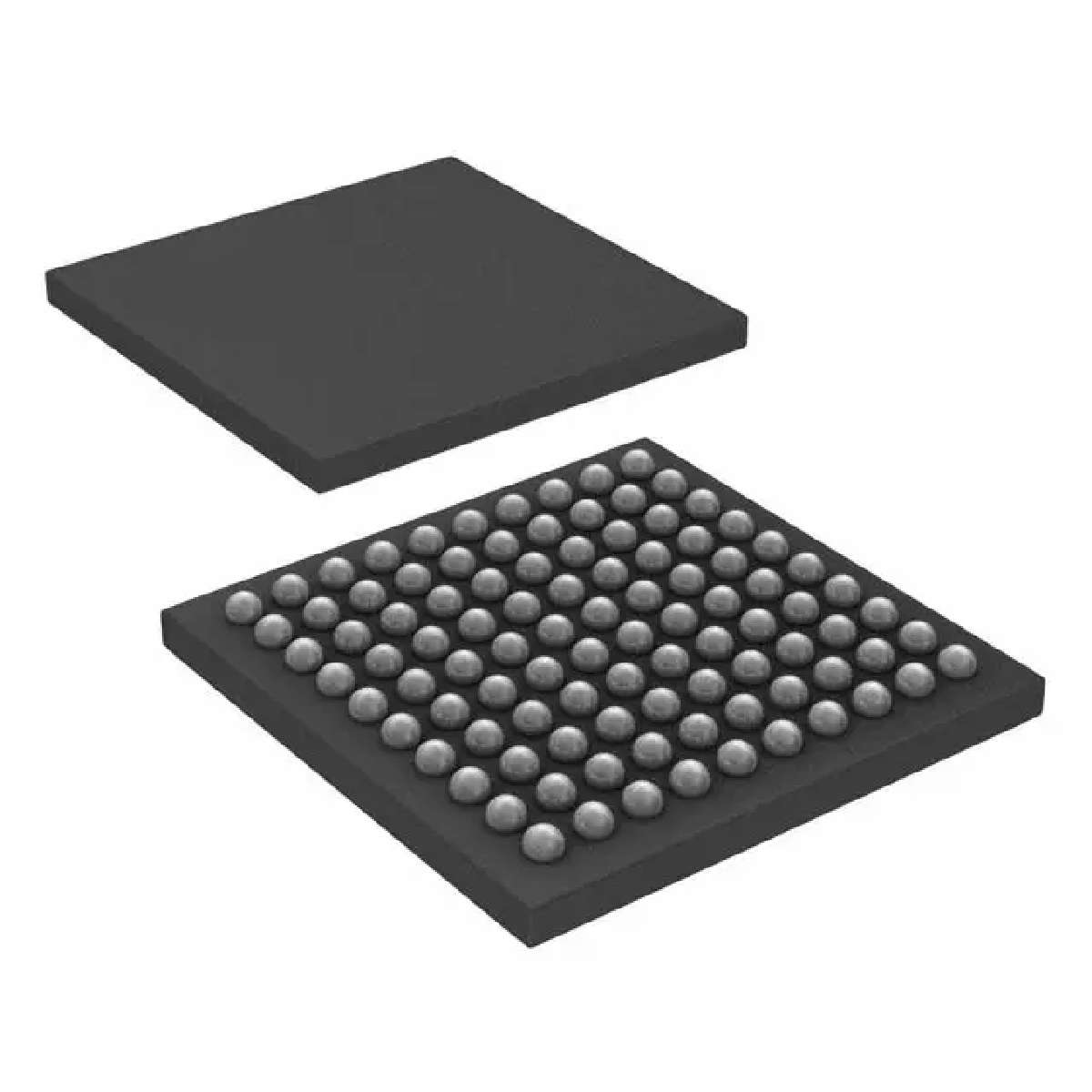

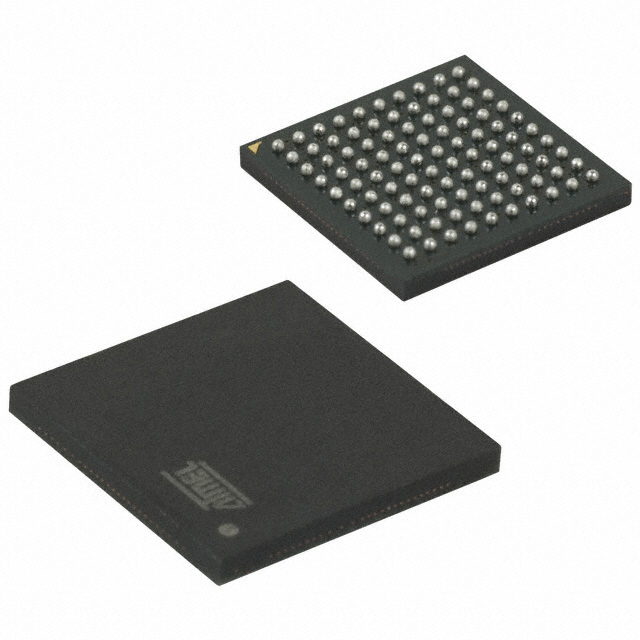

– 100-lead LQFP, 14 x 14 mm, pitch 0.5 mm/ 100-ball TFBGA, 9 x 9 mm, pitch 0.8 mm/

100-ball VFBGA, 7 x 7 mm, pitch 0.65 mm

– 64-lead LQFP, 10 x 10 mm, pitch 0.5 mm/ 64-pad QFN 9x9 mm, pitch 0.5 mm
