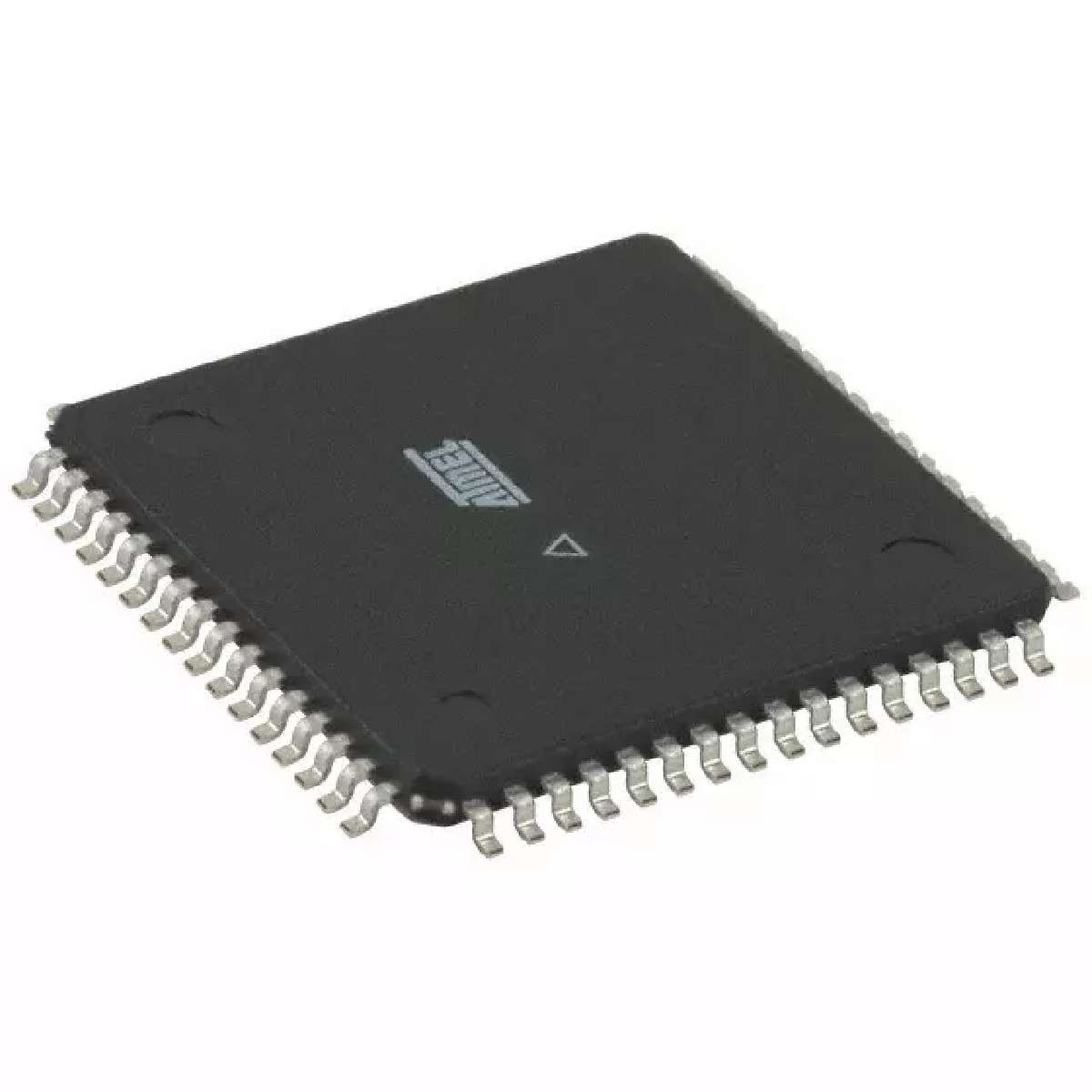

ATMEL ATXMEGA256A3BU-AU 微控制器, 8位, 低功率高性能, ATxmega, 32 MHz, 256 KB, 16 KB, 64 引脚, TQFP
The is a low power, high performance 8/16bit AVR XMEGA microcontroller in 64 pin TQFP package. This device achieves throughputs approaching 1MIPS per MHz by executing powerful instructions in a single clock cycle. This allows system designer to optimize power consumption versus processing speed. The XMEGA A3BU device has five software selectable power saving modes. It has four channel DMA controller, eight channel event system and programmable multilevel interrupt controller, AES and DES cryptographic engine, two 16 channel 12bit ADCs, one 2 channel 12bit DAC, four analogue comparators ACs with window mode and programmable watchdog timer with separate internal oscillator.
频率 32 MHz
电源电压DC 1.60V min
针脚数 64
时钟频率 32.0 MHz
RAM大小 16 KB
输入/输出数 49 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.6.3.6 V
电源电压Max 3.6 V
电源电压Min 1.6 V
安装方式 Surface Mount
引脚数 64

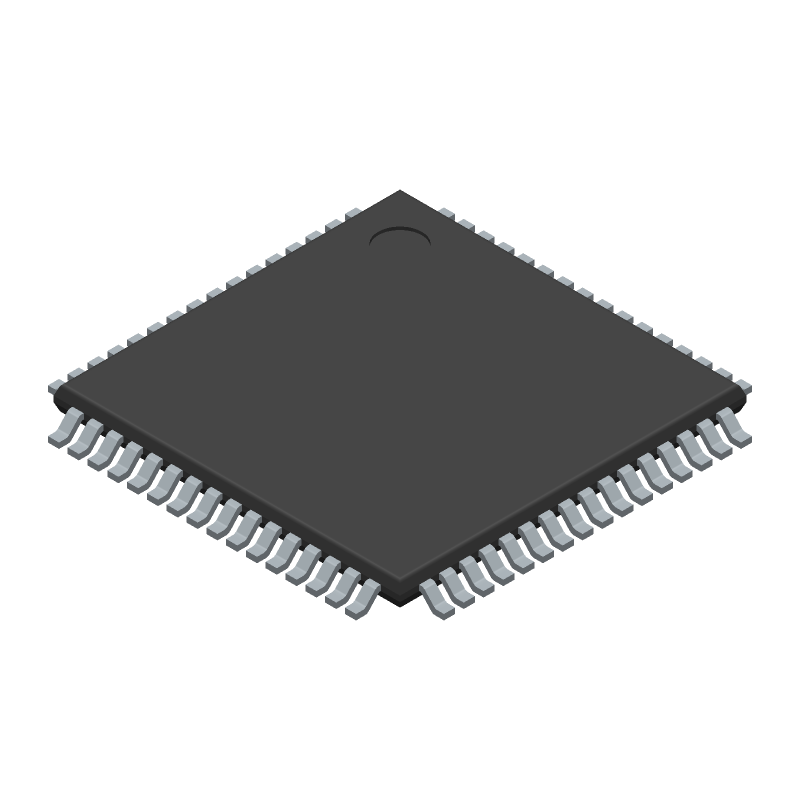

封装 TQFP-64
长度 14.1 mm
宽度 14.1 mm
高度 1.05 mm
封装 TQFP-64
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
制造应用 嵌入式设计与开发, Medical, 通信与网络, Automation & Process Control, Communications & Networking, Motor Drive & Control, Embedded Design & Development, 医用, Consumer Electronics, Industrial, Metering, 计量, 自动化与过程控制, 消费电子产品, 工业, 电机驱动与控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
