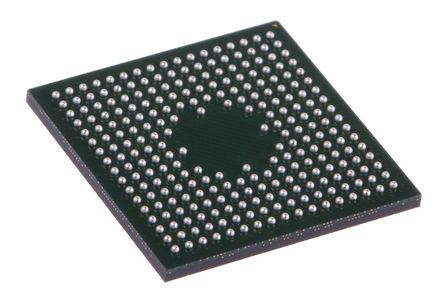

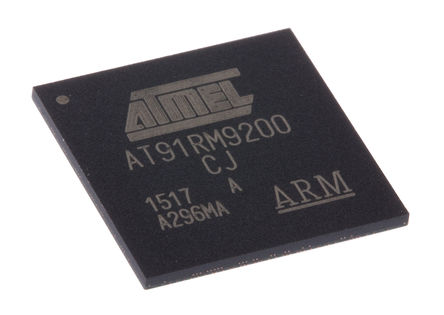

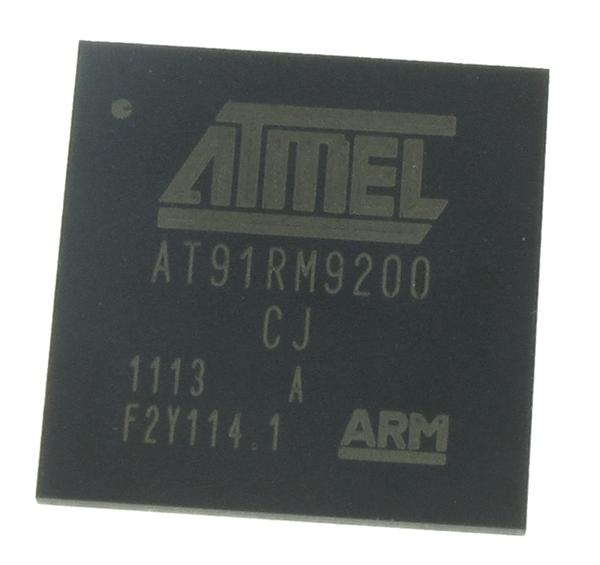

ATMEL AT91RM9200-CJ-002 微控制器, 32位, ARM9, 180 MHz, 128 KB, 16 KB, 256 引脚, LFBGA
The is a complete system-on-chip 32-bit Microcontroller built around the ARM920T ARM Thumb RISC processor. It incorporates a rich set of system and application peripherals and standard interfaces in order to provide a single-chip solution for a wide range of compute-intensive applications that require maximum functionality at minimum power consumption. The AT91RM9200 incorporates a high-speed on-chip SRAM workspace and a low-latency external bus interface EBI for seamless connection to whatever configuration of off-chip memories and memory-mapped peripherals is required by the application. The EBI incorporates controllers for synchronous DRAM SDRAM, Burst flash and Static memories and features specific circuitry facilitating the interface for NAND flash/SmartMedia and compact flash. The advanced interrupt controller AIC enhances the interrupt handling performance of the ARM920T processor by providing multiple vectored, prioritized interrupt sources.
频率 180 MHz
电源电压DC 1.65V min
针脚数 256
时钟频率 180 MHz
RAM大小 16 KB
I/O引脚数 122
存取时间 180 µs
内核架构 ARM
内核子架构 ARM9
输入/输出数 122 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 1.95 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 256

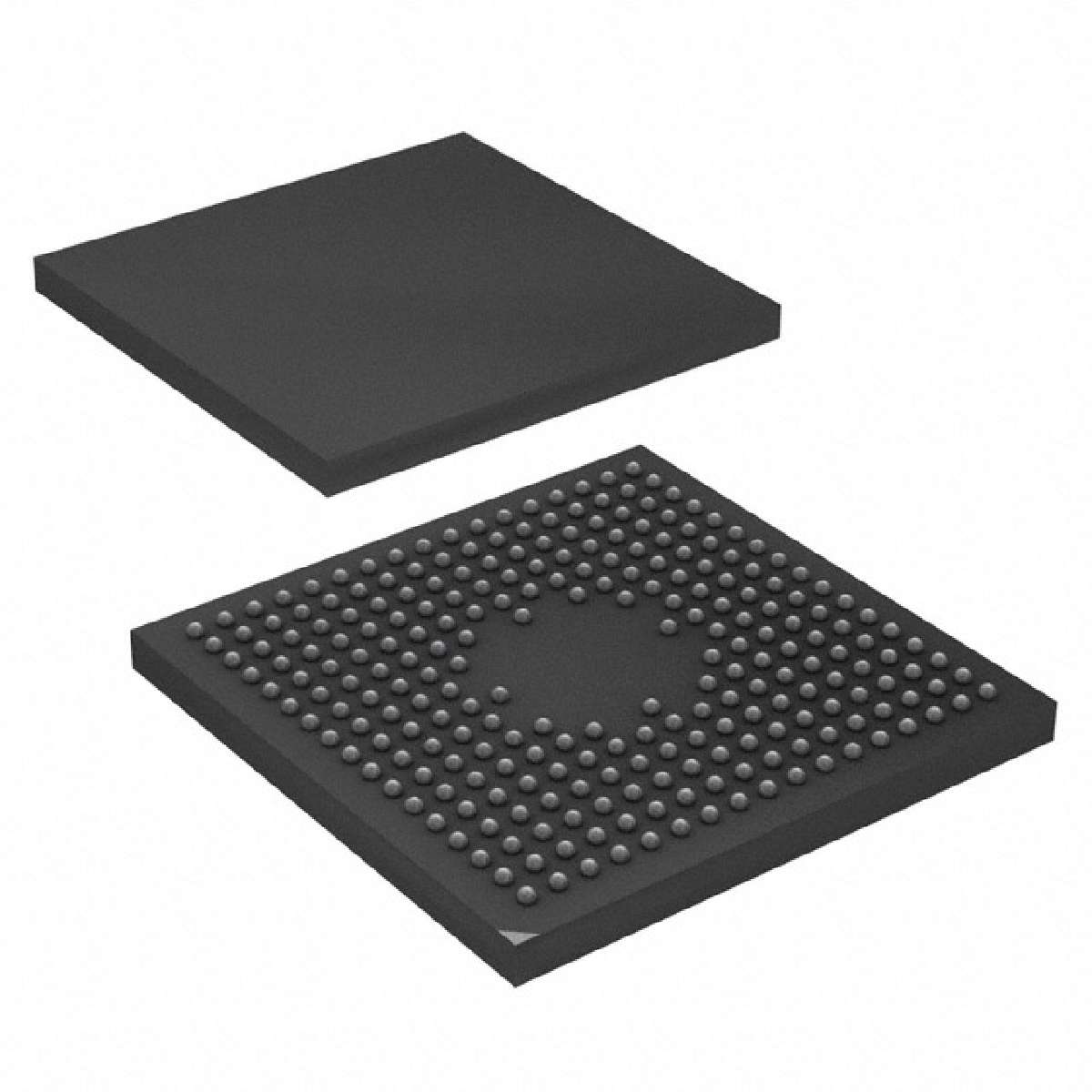

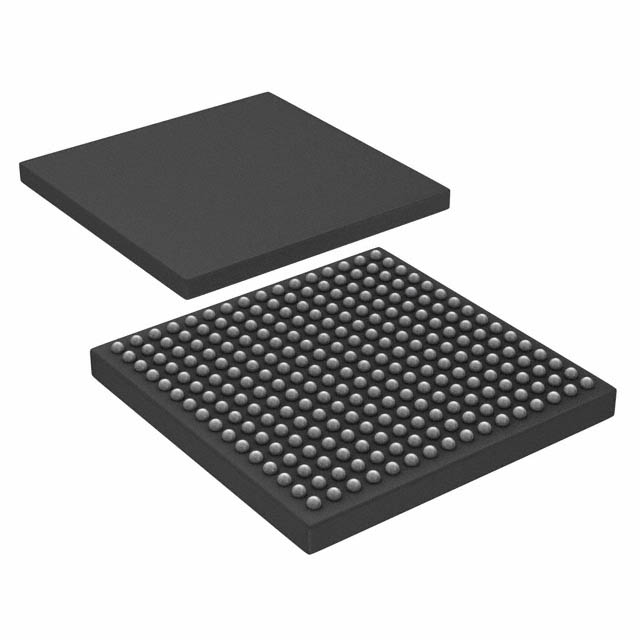

封装 BGA-256
长度 15 mm
宽度 15 mm
高度 0.9 mm
封装 BGA-256
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Each
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
AT91RM9200-CJ-002 ATMEL 爱特美尔 | 当前型号 | 当前型号 |
AT91RM9200-CI-002 爱特美尔 | 功能相似 | AT91RM9200-CJ-002和AT91RM9200-CI-002的区别 |
AT91RM9200-QI-002 爱特美尔 | 功能相似 | AT91RM9200-CJ-002和AT91RM9200-QI-002的区别 |
