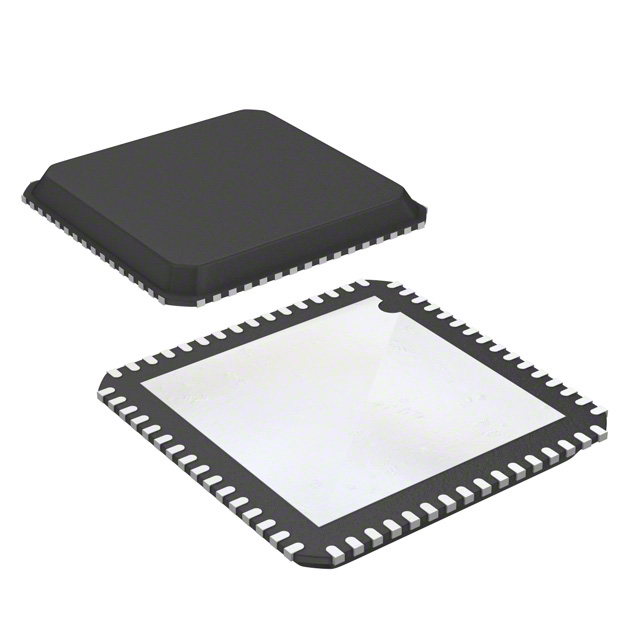

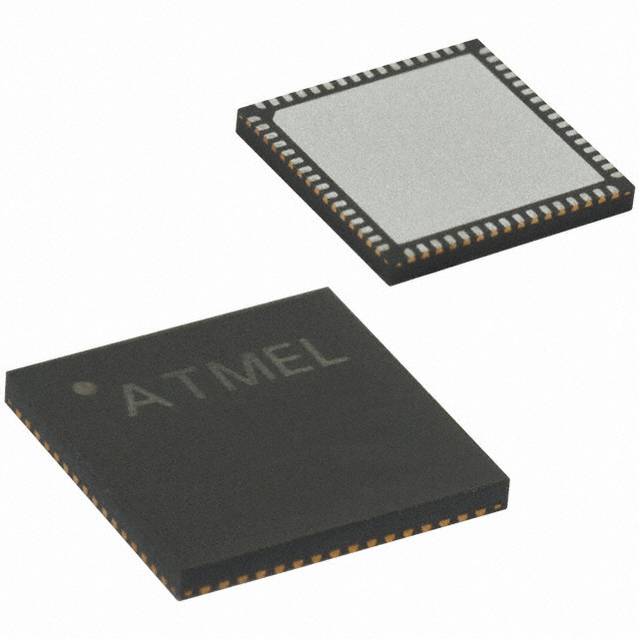

ATMEGA128A-MUR

AVR, 128K Flash - 16MHz, QFN/MLF, IND TEMP, GREEN,5V, T&R

Overview

The ATmega128A is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega128A

achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize

power consumption versus processing speed.

The AVR core combines a rich instruction set with 32 general purpose working registers. All the

32 registers are directly connected to the Arithmetic Logic Unit ALU, allowing two independent

registers to be accessed in one single instruction executedin one clock cycle. The resulting

architecture is more code efficient while achieving throughputs up to ten times faster than con

ventional CISC microcontrollers.

Features

• High-performance, Low-power AVR® 8-bit Microcontroller

• Advanced RISC Architecture

– 133 Powerful Instructions – Most Single Clock Cycle Execution

– 32 x 8 General Purpose Working Registers + Peripheral Control Registers

– Fully Static Operation

– Up to 16 MIPS Throughput at 16 MHz

– On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

– 128K Bytes of In-System Self-programmable Flash program memory

– 4K Bytes EEPROM

– 4K Bytes Internal SRAM

– Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C 1

– Optional Boot Code Section with Independent Lock Bits In-System Programming by On-chip Boot Program True Read-While-Write Operation

– Up to 64K Bytes OptionalExternal Memory Space

– Programming Lock for Software Security

– SPI Interface for In-System Programming

• JTAG IEEE std. 1149.1 Compliant Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and Capture Mode

– Real Time Counter with Separate Oscillator

– Two 8-bit PWM Channels

– 6 PWM Channels with Programmable Resolution from 2 to 16 Bits

– Output Compare Modulator

– 8-channel, 10-bit ADC

    8 Single-ended Channels

    7 Differential Channels

    2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Dual Programmable Serial USARTs

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with On-chip Oscillator

– On-chip Analog Comparator

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby

– Software Selectable Clock Frequency

– ATmega103 Compatibility Mode Selected by a Fuse

– Global Pull-up Disable

• I/O and Packages

– 53 Programmable I/O Lines

– 64-lead TQFP and 64-pad QFN/MLF

• Operating Voltages

– 2.7 - 5.5V

• Speed Grades

– 0 - 16 MHz
