ATXMEGA128A1-CU

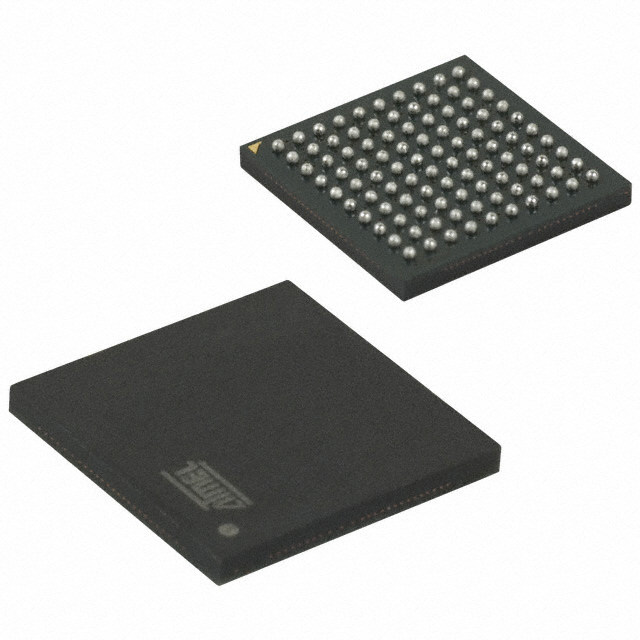

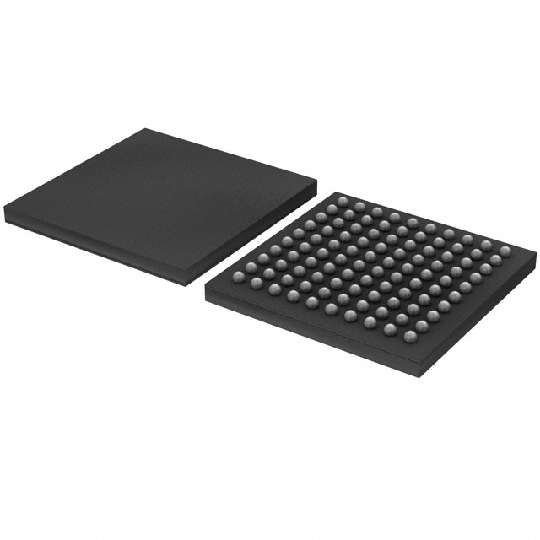

ATMEL  ATXMEGA128A1-CU  微控制器, 16位, 高性能, 低功率, ATxmega, 32 MHz, 128 KB, 8 KB, 100 引脚, CBGA

The is a low power, high-performance 16-bit Microcontroller based on the AVR enhanced RISC architecture. By executing instructions in a single clock cycle, the AVR XMEGA devices achieve CPU throughput approaching 1MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The Atmel AVR CPU combines a rich instruction set with 32 general purpose working registers. All 32 registers are directly connected to the arithmetic logic unit ALU, allowing two independent registers to be accessed in a single instruction, executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs many times faster than conventional single-accumulator or CISC based microcontrollers. The AVR XMEGA A1 device provides 128kB self-programming flash program memory, 8kB boot code section, 8kB SRAM, 2048byte EEPROM and up to 32MIPS throughput at 32MHz.

.

Power-on reset and programmable brown-out detection

.

Internal and external clock options with PLL and prescaler

.

Programmable multilevel interrupt controller

.

Sleep modes - Idle, power-down, standby, power-save, extended standby

.

Programming and debug interfaces - JTAG IEEE 1149.1 com interface, including boundary scan, PDI

.

4-channel DMA Controller

.

8-channel Event system

.

Eight 16-bit timers/counters

.

Eight USARTs with IrDA support for one USART

.

Four 2-wire interfaces with dual address match I²C and SMBus compatible

.

Four Serial peripheral interfaces SPIs

.

AES and DES crypto engine

.

16-bit Real-time counter RTC with separate oscillator

.

Two 16-channel, 12-bit, 2MSPS analog-to-digital converters

.

Two 2-channel, 12-bit, 1MSPS digital to analog converters

.

Four analog comparators ACs with window compare function and current sources

.

External interrupts on all general purpose I/O pins

.

Programmable watchdog timer with separate on-chip ultra low power oscillator

.

QTouch® library support
