8 位 megaAVR® 微控制器,32KB 到 256KB 闪存,Atmel我们在 RS Components 提供多款来自 Atmel 的 megaAVR 8 位微控制器。 每个微控制器均基于增强型 RISC 体系结构,并具有 QTouch 库支持。 所有微控制器类型具有不同 Kb 的系统内可编程内存、EEPROM 和 SRAM 以及不同引脚和封装类型。 **megaAVR 8 位微控制器类型** ATmega32 ATmega64 ATmega128 ATmega324 ATmega325 ATmega406 ATmega640 ATmega644 ATmega645 ATmega1280 ATmega1281 ATmega1284 ATmega2560 ATmega2561 ATmega3250 ATmega6450### AVR 微控制器,Atmel

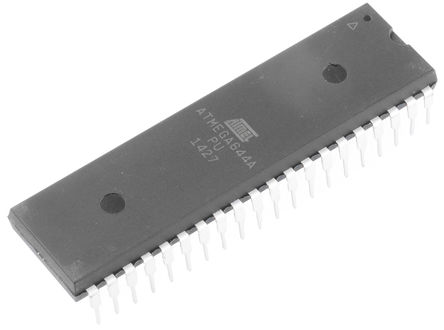

The is a 8-bit high-performance AVR RISC-based Microcontroller combines 64kB ISP flash memory with read-while-write capabilities, 2kB EEPROM, 4kB SRAM, 32 general purpose I/O lines, 32 general purpose working registers, a real time counter, three flexible timer/counters with compare modes and PWM, two USARTs, a byte oriented 2-wire serial interface, an 8-channel 10-bit A/D converter with optional differential input stage with programmable gain, programmable watchdog timer with internal oscillator, SPI serial port, a JTAG IEEE 1149.1 compliant test interface for on-chip debugging and programming and six software selectable power saving modes. The device operates between 1.8 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.
频率 20 MHz
电源电压DC 1.80V min
针脚数 40
时钟频率 20.0 MHz
RAM大小 4 KB
模数转换数ADC 1
输入/输出数 32 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 1.8.5.5 V
电源电压Max 5.5 V
电源电压Min 1.8 V
安装方式 Through Hole
引脚数 40

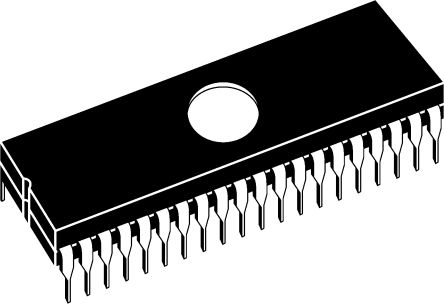

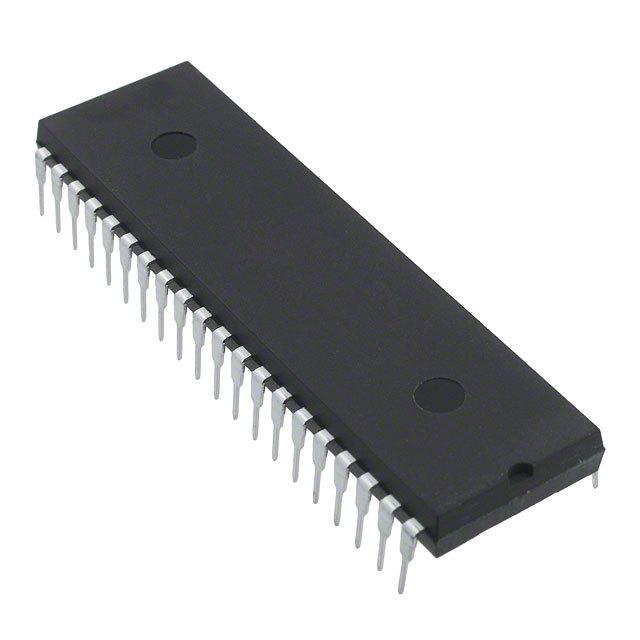

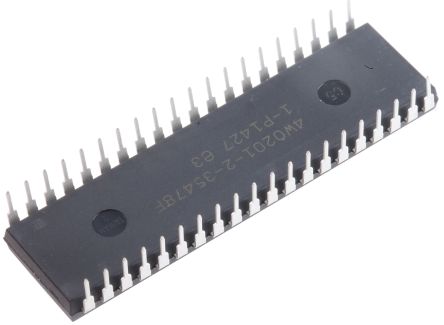

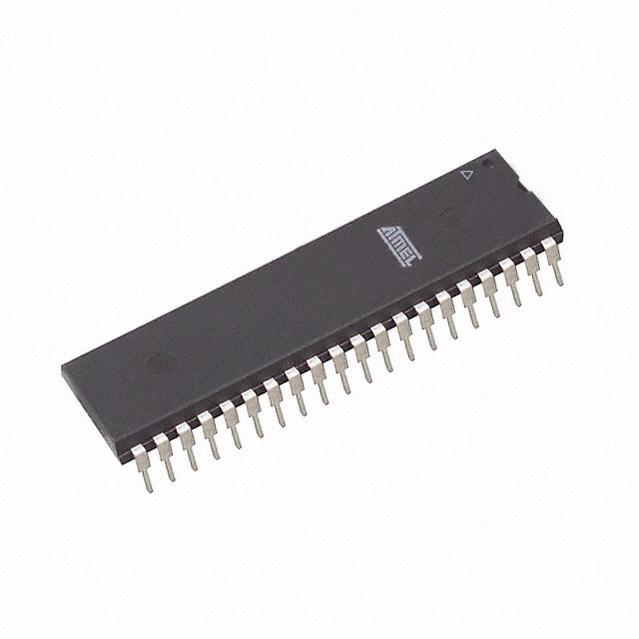

封装 PDIP-40
长度 52.58 mm
宽度 13.97 mm
高度 4.445 mm
封装 PDIP-40
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tube
制造应用 Computers & Computer Peripherals, 计算机和计算机周边, Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
