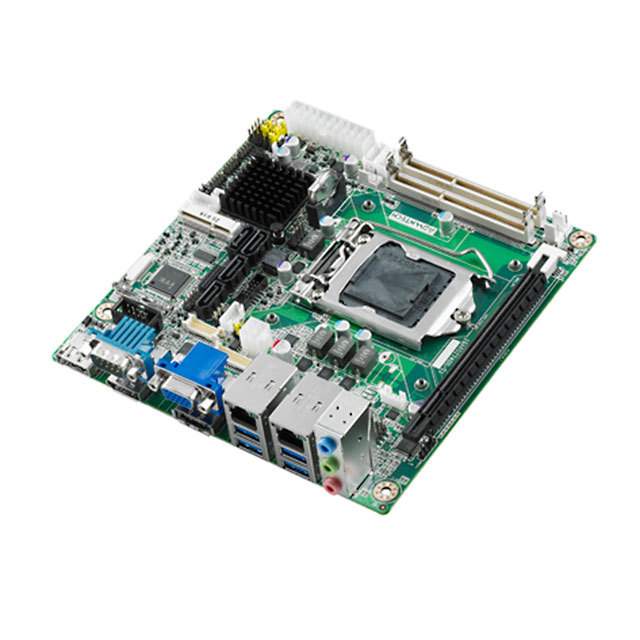

AIMB-274G2-00A1E

工作温度 0℃ ~ 60℃

Series -

Operating-Temperature 0°C ~ 60°C

Size-Dimension 6.69" x 6.69" 170mm x 170mm

Power-Watts -

Speed 2.3GHz ~ 3.5GHz

Core-Processor Intel Core i7/i5/i3/Pentium/Celeron

Ethernet 10/100/1000 Mbps

USB USB 2.0 6, USB 3.0 4

Number-of-Cores 42404

Cooling-Type Heat Sink

Form-Factor Mini-ITX without Processor

Expansion-Site-Bus Mini-PCIe, PCIe

RAM-Capacity-Installed 16GB/0GB

Storage-Interface SATA 3.0 4

Video-Outputs CRT, DP, HDMI, LVDS

RS-232-422-485 2

Digital-I-O-Lines 8

Watchdog-Timer Yes

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册
