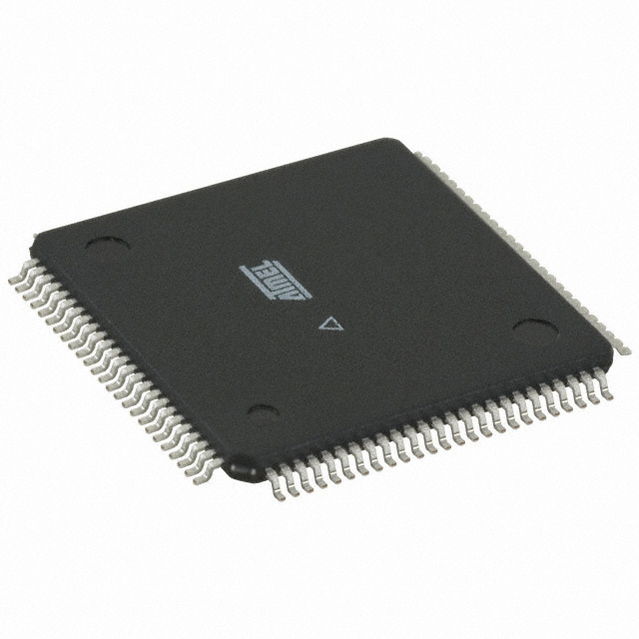

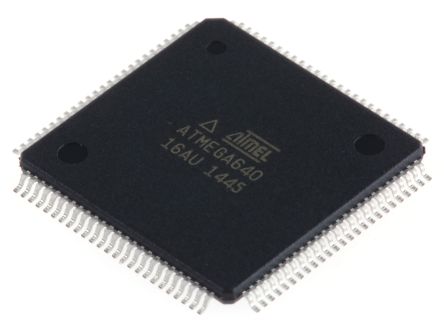

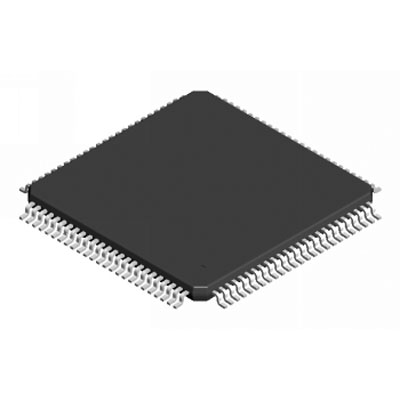

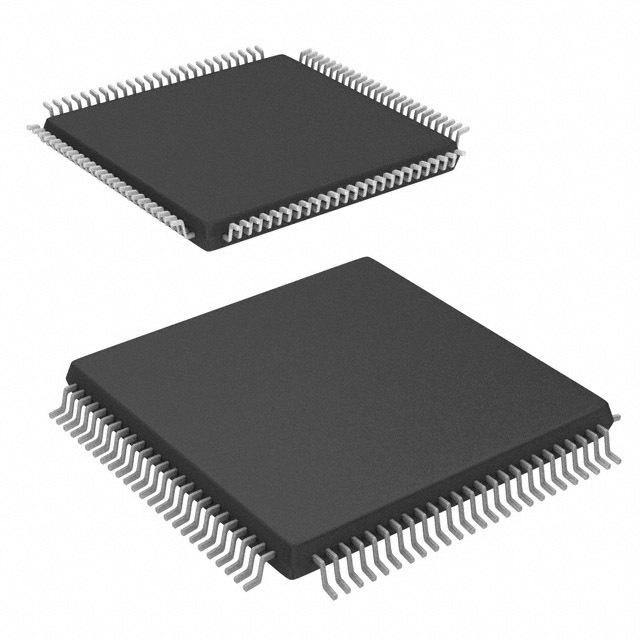

ATMEL ATMEGA640-16AU 微控制器, 8位, 低功率高性能, ATmega, 16 MHz, 64 KB, 8 KB, 100 引脚, TQFP
The is a high-performance, low-power 8-bit AVR RISC-based Microcontroller combines 4kb EEPROM, 86 general purpose I/O lines, 32 general purpose working registers, real time counter, six flexible timer/counters with compare modes, PWM, 4 USARTs, byte oriented 2-wire serial interface, 16-channel 10-bit A/D converter and a JTAG interface for on-chip debugging. The device achieves a throughput of 16 MIPS at 16MHz and operates between 2.7 to 5.5V. By executing powerful instructions in a single clock cycle, the device achieves a throughput approaching 1 MIPS per MHz, balancing power consumption and processing speed.
频率 16 MHz
电源电压DC 5.00 V, 5.50 V max
针脚数 100
时钟频率 16.0 MHz, 16.0 MHz max
RAM大小 8 KB
位数 8
FLASH内存容量 64 KB
I/O引脚数 86
存取时间 16.0 µs
内核架构 AVR
模数转换数ADC 1
输入/输出数 86 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 100
封装 TQFP-100
长度 14.1 mm
宽度 14.1 mm
高度 1.05 mm
封装 TQFP-100
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tray
制造应用 Industrial, 传感与仪器, Sensing & Instrumentation, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ATMEGA640-16AU ATMEL 爱特美尔 | 当前型号 | 当前型号 |
ATMEGA640-16AUR 爱特美尔 | 类似代替 | ATMEGA640-16AU和ATMEGA640-16AUR的区别 |
